Product Description

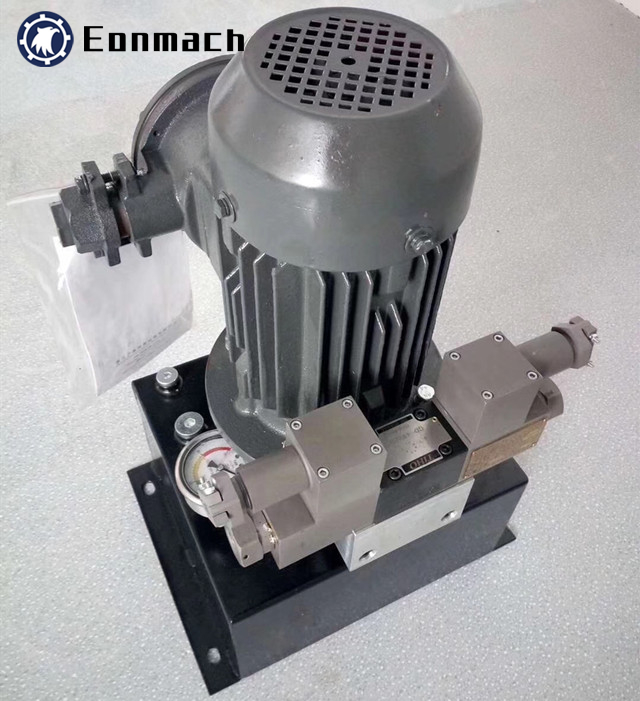

220VAC 380VAC Double-scissors Lift Hydraulic Power Unit Pack
Model | Motor Info | Pump Displacement | Tank Capacity | Pressure | Mounting | Oil Port |
HPU-29GOEMEVDFOA | 220V 2.2kW 2850rpm 50Hz | 2.1cc/r | 20L | 20MPa | Vertical | G1/4'' |
HPU-29GPEMEVDGOA | 220V 3.0KW 2850rpm 50Hz | 26MPa | ||||
HPU-29HOEMEVDFOA | 380V 2.2KW 2850rpm 50Hz | 22MPa | ||||
HPU-29HPEMEVDHOA | 380V 3.0KW 2850rpm 50Hz | 28MPa |
Special Notes:
1. The duty of this power unit is S3. ie: 30 seconds on and 270s off.
2. Clean all the hydraulic parts concemed before mounting the power unit.
3. Viscosity of the hydraulic oil should be 15-68 cst, which should also be clean and free of ompurities. N46 hydraulic oil is recommended.
4. This power unit should be mounted horizontal.
5. Check the oil level in the tank after the first start of the power unit.
6. Oil changing is required after the initial 100 operation hours afterwards once every 3000 hours.
