DC12V Hydraulic Power Units for Fork Lift Truck

  • EM19-0070
  • EM
  • 8412299090
Quantity:

Product Description

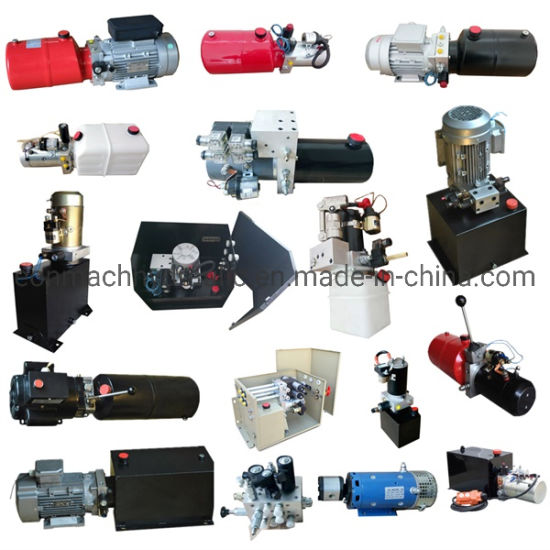

DC12V hydraulic power units for fork lift truck

Eqipped with a high pressure gear pump ,DC motor, a multi-functional manifold, valves and a tank ect.

This power unit features power up gravity downfunction.Start the motor to lift the machine and lowering

speed controlled by the pressure compensaed lift control valve.

DC12V Hydraulic Power Units for Fork Lift Truck


Model Specifications

MODEL MOTOR VOLTAGE MOTOR POWER SPEED DISPLACEMENT SYSTEM PRESSURE TANK CAPACITY L(MM)
FD4DC1DWA02C 12V DC 1.5KW 2800R 1.0ML/R 20MPA 4.0L 435
FE5DC1DWA02C 12V DC 1.5KW 2800R 1.6ML/R 20MPA 5.0L 480
FF6DC2EWB02C 24V DC 2.2KW 2800R 2.0ML8R 20MPA 6.0L 500
EG8DC2EWB02C 24V DC 2.2KW 2800R 2.5ML8R 16MPA 8.0L 580


Packing




DC12V Hydraulic Power Units for Fork Lift Truck
