You use hydraulic cylinder types like tie-rod, welded, and telescopic for many jobs. Each type has special strengths. These strengths help you work better and save money. Tie-rod cylinders are easy to fix. Welded cylinders work well in tight spaces and with high pressure. The world market for tie-rod cylinders was USD 3,752.7 million in 2024. This number is still getting bigger. Qingdao Eonmach Machinery Company Limited gives you good hydraulic cylinder choices for your machines. As you read, think about which cylinder type is best for you.
Tie-rod hydraulic cylinders are simple to fix. They work with many machines. Checking them often helps them last longer.
Welded hydraulic cylinders are small and very strong. They are good for high-pressure work in small spaces. They do not need much care.
Telescopic hydraulic cylinders take up little space. They can reach far distances. They work well in dump trucks and car lifts.
Picking the right hydraulic cylinder depends on what you need. Think about space, pressure, and how often you want to do maintenance.
EONMACH makes custom hydraulic cylinders. They give expert help to find the best one for your machine.

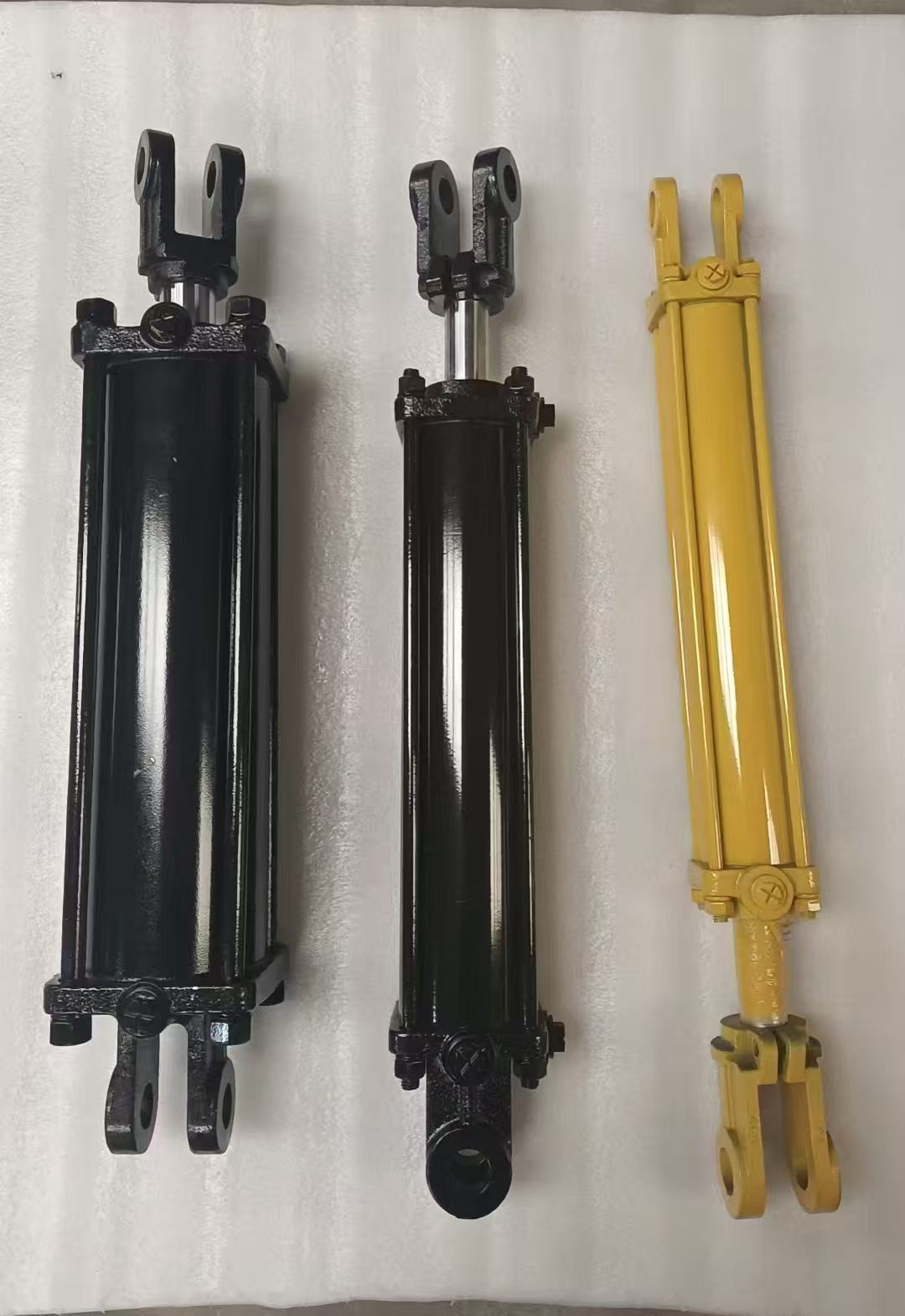

Tie-rod hydraulic cylinders are used in lots of machines. These cylinders have strong steel rods called tie rods. The tie rods hold the end caps to the barrel. There can be four to twenty tie rods. The number depends on how big and strong the cylinder is. This design lets you take the cylinder apart easily. You can fix it without much trouble. You can pick single acting cylinders or double acting cylinders. Single-acting cylinders move one way with hydraulic fluid. Double-acting cylinders move both ways. This gives you more control.
Here is a table to help you compare tie-rod cylinders with welded hydraulic cylinders:
Feature | Tie-Rod Hydraulic Cylinders | Welded Hydraulic Cylinders |
|---|---|---|
Construction Method | Uses many tie rods to hold end caps together | Seamless design with no outside tie rods |
Structural Design | Outside threaded tie bolts go through end caps | Barrel welded right to end caps |
Maintenance Requirements | Easier to fix because you can remove end caps | Harder to fix because the structure is sealed |
Suitability for Applications | Changes with bore size and pressure | Usually smaller and more simple |
Tie-rod hydraulic cylinders are used in many jobs. In farming, they help with plows, tillers, and lifting heavy things. In trucks and cranes, they help lift and move loads safely. In building and factories, tie-rod cylinders help finish work quickly and well.
Qingdao Eonmach Machinery Company Limited makes strong tie-rod hydraulic cylinders for all these jobs. Every cylinder meets ISO9001 rules. This means you get products that work well and last long. You can count on EONMACH to help you pick the right cylinder for your machines.
Welded hydraulic cylinders are used in many tough jobs. These cylinders have end caps welded directly to the barrel. This makes them strong and small. You can fit welded cylinders into tight spaces. The welded design allows them to handle high pressure. You can change the size, stroke, and mounting style to fit your needs. Here is a table showing how welded cylinders compare to tie-rod types:
Feature | Tie-Rod Hydraulic Cylinders | Welded Hydraulic Cylinders |
|---|---|---|
Construction | End caps held by tie rods | End caps welded to the barrel |
Pressure Rating | Up to 3,000 PSI | Up to 5,000 PSI or more |
Maintenance | Easy with common tools | Easy because of the design |
Cleanliness | Tie rods can catch dirt | Smooth surface, easy to clean |
Design Flexibility | Many part options | Compact with flexible port placement |
Applications | Used in many machines | Good for heavy-duty work |
You can choose single-acting or double-acting cylinders for your hydraulic systems. Welded cylinders can do many jobs because you can change their features. You can pick bore sizes from 1.25″ to 15″ and stroke lengths up to 240″. You can also choose special materials like stainless steel or brass.
Welded hydraulic cylinders are used in many industries. In construction, they lift and move heavy parts. In mining, they work in machines that dig and carry rocks. In waste management, they help garbage trucks lift and pack trash. EONMACH makes welded cylinders that work well in these tough jobs. They use good sealing and strong materials for a long life. All EONMACH hydraulic cylinders meet ISO9001 standards. You can ask for custom features to fit your special needs. Welded hydraulic cylinders give you reliable power for your machines.
Telescopic hydraulic cylinders are used in machines with little space. These cylinders have several stages that fit inside each other. Each stage slides out one by one when you extend the cylinder. This design gives you a long stroke from a small unit.
When collapsed, telescopic cylinders are only 20% to 40% of their full length.
Some cylinders can shrink to less than 15% of their extended size.
You can get strokes up to 20 feet or more and keep the cylinder small when not in use.
Telescopic cylinders are great for jobs where space is tight but you need lots of movement.
Telescopic hydraulic cylinders are used in many industries. Dump trucks use them to tilt containers for unloading. Sanitation vehicles use them to pack trash in small spaces. Automotive lifts use telescopic cylinders to raise cars high and keep the lift short when not in use.
EONMACH makes telescopic hydraulic cylinders for tough jobs like hook-lift garbage trucks and car lifts. You get strong lifting power and smooth movement. EONMACH uses strong materials and good seals for a long life. You can ask for custom sizes and features for your hydraulic systems. Every cylinder meets ISO9001 rules, so you get safe and reliable products.
This table helps you see how the main hydraulic cylinder types are different. It shows what makes each type special and where they work best.
Feature / Type | Tie-Rod | Welded | Telescopic |
|---|---|---|---|
Pressure Rating | Up to 3,000 PSI | Up to 5,000 PSI or more | Medium to High |
Maintenance | Easy to repair | Less frequent, complex | Moderate |
Size | Larger, needs space | Compact, fits tight spots | Very compact when closed |
Stroke Length | Standard | Standard | Very long |
Durability | Good | Excellent | Good |
Cost | Lower upfront | Higher upfront | Varies by design |
Best Uses | General machinery, agriculture | Construction, mining, waste management | Dump trucks, lifts, space-limited jobs |
Every hydraulic cylinder type has its own good points:
Tie-rod cylinders: You can fix them without much trouble. They do not cost a lot at first. You can use them in many kinds of machines.
Welded cylinders: They are strong and small. They work well when you need high pressure. They last a long time and do not need much fixing.
Telescopic cylinders: You can use them when you do not have much space. They can reach far even though they start out small. They are great for dump trucks and lifts.
Tip: Think about how much space you have, how much pressure you need, and how often you want to fix your cylinder before you pick one.
You should pick the right hydraulic cylinder for your job:
Use tie-rod cylinders if you want easy repairs and to save money.
Pick welded cylinders for hard jobs like building or digging.
Choose telescopic cylinders if you need a long reach but do not have much room, like in dump trucks or car lifts.
EONMACH can help you choose the best cylinder for your machines. Their team can give you advice and help you find the right design. They make custom cylinders for all kinds of jobs. You will get the best match for your needs.
If you want to know more about hydraulic cylinders or need help picking one, you can talk to EONMACH for free advice.
You need to pick the right hydraulic cylinder for your job. This helps you get the best results. In construction, using light materials like Al 7075-T6 makes work easier. For marine jobs, steel that does not rust lasts longer.
Ask EONMACH experts for advice that matches your machines and budget.
The right cylinder gives you better work and saves money.
You can count on EONMACH for good quality and help.
Tie-rod cylinders use rods to hold the ends together. Welded cylinders have ends welded to the barrel. Tie-rod cylinders are easier to repair. Welded cylinders are stronger and fit in smaller spaces.
You should think about space, pressure, and how often you need repairs. Check your machine’s needs. EONMACH experts can help you pick the best type for your job.
You should check your cylinder every month. Look for leaks, dirt, or damage. Clean the rod and keep the fluid clean. Regular checks help your cylinder last longer.
Yes! EONMACH can design and build cylinders to fit your special needs. You can ask for different sizes, strokes, or materials. Their team will help you find the right solution.
