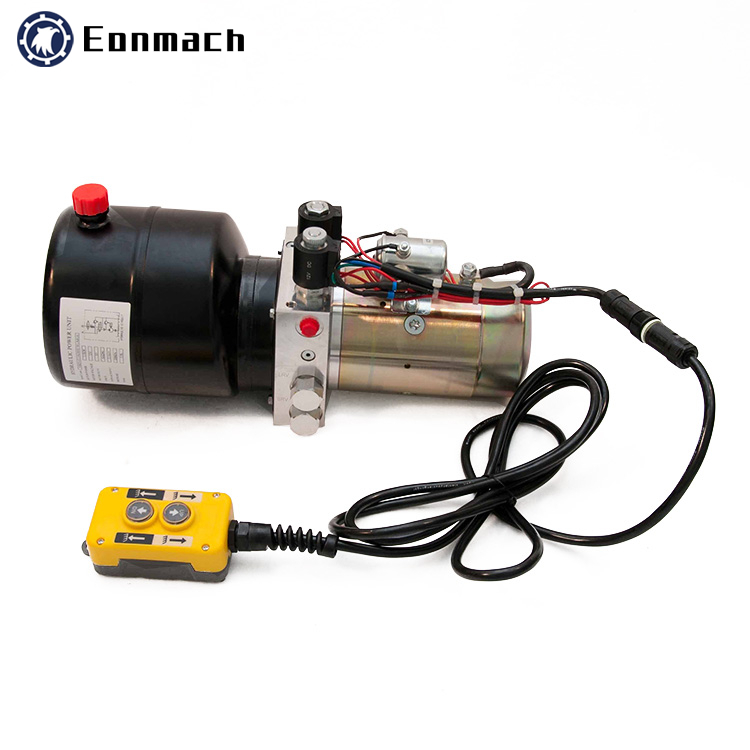

American Double-Acting 12 V Electric Hydraulic Power Unit

American Double-Acting 12 V Electric Hydraulic Power Unit
  • EM18-7635
  • EM
  • 8412299090
Quantity:

Product Description

Product Name
American Double-Acting 12 V Electric Hydraulic Power Unit

Equipped with a high pressure gear pump, a DC motor, a multi-functional manifold, valves and tank, this power unit has a power up - Power down circuit. Start the motor to lift the machine. Control raise and lower with cable controller It is widely used in tipper trailer, fork lift and scissor lift applications where the ability to apply hydraulic fluid pressure to both working ports of a cylinder is necessary. (instead of a "gravity down" system where the weight of the machine attached to the cylinder is enough to gravity feed down). There are unlimited uses for this product.

Specifications

Tank: Steel, 3 liters

All ports are #6 SAE O-ring boss

Motor: 2.0 hp, 12v, 2600 rpm, S3 Duty

Max Pressure = 2900 psi (20Mpa)

Gear Pump: .128 Cu In/rev

System Relief valve: 2500 PSI

Solenoid Release Valve: 12VDC, NC

These units are high quality and are used in many OEM applications. We have direct factory support for any questions or parts.

Remote: 2 Button, 3 lines, 10 feet-1/2

Trouble shooting guide available upon request.

All spare parts available

Hydraulic Fluid:

ISO viscosity grades 22 to 46 are recommended. Anti wear, antifoaming & rust inhibitor additives are recommended.

For colder climates ATF can be used

In extreme cases Mil-5606 fluid can be used

Do not use synthetic, biodegradable or water base hydraulic fluids. In most cases these fluids are not compatible with Buna O-rings. Please check fluid compatibility before use.

Tractor hydraulic fluid is not recommended. Most tractor hydraulic fluid has to high of a viscosity & may not be compatible with Buna O-rings.

Recommended Fluid Viscosity Specifications:

ISO Viscosity Grades 22-46

cSt @ 40°C 22-46

cSt @ 100°C 4-8

Recommended Fluid Maintenance:

Change hydraulic fluid after initial 100 hours of operation

Change hydraulic fluid every 3000 hours or 2 years there after

Check hydraulic fluid level regularly before operation

Tank dimensions are 7-3/4"wide x 8-1/2"tall x 12" long (fill port is 1" tall on tank)
