A failing Car Lift Cylinder instantly stalls garage productivity and halts daily revenue. You rely on your shop equipment to perform flawlessly under massive physical loads. When vital components inevitably wear out, equipment downtime directly translates to lost service hours. Shop owners and technicians frequently face a tough decision at this critical stage. Do you attempt to rebuild an existing unit using basic seal kits? Or do you confidently invest in a complete Hydraulic Cylinder replacement? Technician safety and steady shop operations depend entirely on making the correct repair choice. This guide breaks down diagnostic symptoms, repair-versus-replace cost economics, and critical safety protocols for executing an upgrade without costly errors. We help you avoid costly measurement traps and physical hazards. You will learn how to execute a professional equipment upgrade safely and efficiently.
Internal damage dictates the outcome: While external leaks can sometimes be fixed with a $150 seal kit, internal rust or pitting usually makes a cylinder economically unrepairable.
The ROI of replacing: Machine shop resurfacing combined with custom seals often exceeds the cost of purchasing a brand-new, factory-spec lift cylinder.
Avoid measurement traps: Never order replacement seals based on the dimensions of old, deformed parts; always measure the internal grooves.
Safety first: Extracting heavy-duty hydraulic cylinders carries significant risks, including unexpected "bounce back" and fluid pressurization hazards.
Automotive lifts handle extreme loads daily. The internal components bear the brunt of this mechanical stress. Recognizing early warning signs prevents sudden equipment failure. You must address these symptoms before they compromise technician safety.
Leaks are the most obvious sign of hydraulic trouble. You will often see external weeping at the gland. This happens when the outer wiper seals degrade. However, internal leakage is much more deceptive. Industry experts call this "cylinder bypass." Worn piston seals allow pressurized fluid to pass internally. The lift will drift downward slowly under a heavy load. It leaves no puddles on the shop floor. This makes it incredibly tricky to diagnose visually.
Common visual diagnostic checks include:
Monitoring fluid levels in the main reservoir weekly.
Placing cardboard under the lift base to catch weeping fluid.
Measuring the height of the lift arms after one hour under a static load.
Inspecting the gland nut area for fresh oil residue.
Your lift should ascend smoothly. Stuttering or jerky vertical movement indicates a severe problem. Air trapped inside the hydraulic system often causes this erratic behavior. Degraded sealing efficiency also plays a major role. Worn seals allow pressure to fluctuate rapidly. This creates inconsistent lifting power. A stuttering lift poses a severe danger to the stability of the elevated vehicle.
You must inspect the exposed metal regularly. Look closely for scoring, pitting, rust, or dents on the rod surface. These visual indicators spell disaster for internal components. Left unaddressed, these imperfections act exactly like rough sandpaper. They will shred new seals instantly during operation. Deep scratches allow fluid to escape. Minor pitting often signals deeper moisture contamination inside the barrel.
Mounting hardware secures the entire lifting mechanism. Loose mounting bolts cause immediate structural misalignment. Unlubricated pivot brackets also create rigid friction points. These issues place asymmetrical side-load stress directly on the cylinder. Hydraulic tubes are designed for vertical force, not lateral bending. Side-loading wears out internal bearings prematurely. It drastically reduces the lifespan of your lifting equipment.
Note: "Cylinder bypass" is one of the most common causes of a lift slowly drifting down over time. It leaves no puddles on the floor because the fluid is leaking internally across the piston, making it harder to diagnose visually.
Shop owners must weigh direct costs against operational downtime. A quick rebuild seems cheaper initially. However, hidden internal damage often changes the financial reality.
Sometimes a simple rebuild makes perfect sense. You should disassemble the unit and inspect it thoroughly. If the cylinder walls and rod remain entirely pristine, you are in luck. A standard seal and gasket kit offers a highly cost-effective fix. These basic rebuild kits typically cost under $200. An experienced technician can install them in a few hours. This approach works best for well-maintained, newer lifts.
Older or long-idle car lifts face different realities. Moisture inevitably enters the hydraulic system over time. This moisture causes severe rust or deep pitting on the internal cylinder walls. Once this degradation occurs, simple seal replacements become useless. The rough metal surface will destroy new rubber immediately. The system will fail prematurely, putting you back at square one.
You must calculate the true cost of heavy repairs. Sending a rusted unit to a local hydraulic shop requires extensive labor. They must perform barrel honing, re-machining, and install custom seals. This intensive process often exceeds $700 to $800. Purchasing a brand-new OEM or high-grade aftermarket Hydraulic Cylinder frequently falls in the $500 to $650 range. A fresh unit offers superior economic value. It also includes a modern factory warranty.
Repair Strategy | Average Parts Cost | Labor/Machining Cost | Estimated Downtime | Long-Term Reliability |
|---|---|---|---|---|
Basic Seal Rebuild | $150 - $200 | In-house labor (2-4 hours) | 1 Day | Moderate (Depends on wall condition) |
Machine Shop Overhaul | $200 - $300 | $500 - $600+ | 1 to 2 Weeks | Good (But lacks new warranty) |
Full Cylinder Replacement | $500 - $650 | In-house labor (2-4 hours) | 1 to 3 Days (Shipping) | Excellent (Factory specs & warranty) |
You must factor in shop rate losses. An empty bay generates zero revenue. Waiting two full weeks for a custom machine shop rebuild hurts your bottom line. It costs a commercial garage exponentially more than simply buying a new unit. Swapping in a readily available new cylinder takes only one afternoon. You recover your investment quickly by returning the bay to active service.
Tip: If you break open the gland and find thick sludge or heavy rust on the internal cylinder walls, classify the unit as "not repairable" and pivot directly to sourcing a replacement to save time and money.

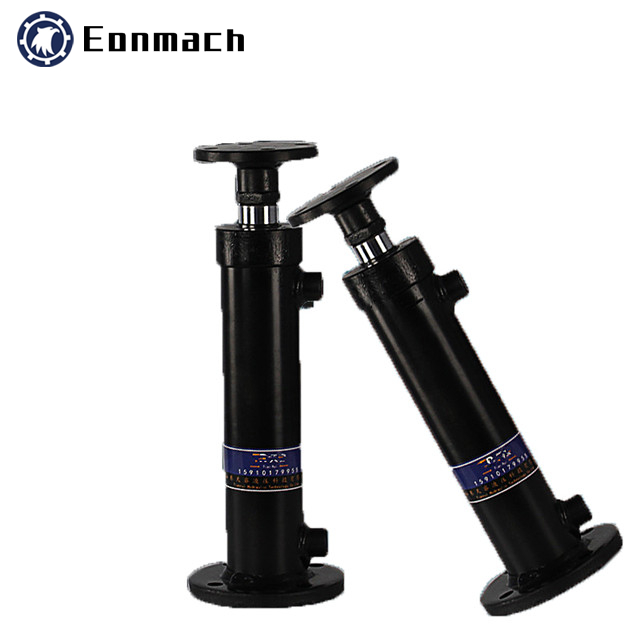

Upgrading your shop with a brand-new cylinder ensures consistent lifting power and eliminates recurring maintenance downtime.
Selecting the right replacement part requires precision. Ordering the wrong component extends your bay downtime. You must verify brand quality and exact physical dimensions.
Buyers must evaluate the pros and cons carefully. OEM parts guarantee exact spec-matching. They integrate seamlessly into your existing lift framework. However, reputable aftermarket brands often provide equivalent build quality. They achieve this at a significantly lower price point. Many aftermarket suppliers also offer faster shipping directly from domestic warehouses. You should read verified reviews before trusting an aftermarket brand.
Hydraulic technology improves constantly. You should look for upgraded internal components when buying a replacement. Modern manufacturers use high-durometer polyurethane seals. These outperform standard older-generation rubber significantly. Polyurethane provides superior resistance to hydraulic fluid degradation. It also repels microscopic debris much better. This extends the service life of your new equipment considerably.
Guessing dimensions leads to costly returns. You must verify critical metrics before ordering any replacement unit.
Stroke Length: Measure the maximum distance the rod extends from the barrel.
Bore Size: Determine the exact internal diameter of the main cylinder barrel.
Retracted Length: Measure the unit completely collapsed from pin center to pin center.
Rod Diameter: Use calipers to measure the thickness of the polished piston rod.
Operating Pressure: Confirm the PSI rating matches your hydraulic power unit.
Removing heavy hydraulic equipment is inherently dangerous. Technicians must follow strict safety protocols. Rushing the process invites severe injury and damages expensive new parts.
Safety begins before you touch a wrench. Emphasize the mandatory first step of fully lowering the lift. Rest it firmly on mechanical safety locks if your model has them. You must entirely depressurize the hydraulic system next. Never loosen any fittings while the lines hold pressure. Pressurized fluid can inject under human skin, causing lethal medical emergencies. Clear the bay of all unnecessary personnel.
Technicians must understand stored kinetic energy. Large cylinders hold massive amounts of trapped force. Sudden release of pressure or trapped air triggers violent reactions. Heavy components can snap or bounce unpredictably. This phenomenon creates a severe physical hazard. Secure the main body with heavy-duty lifting straps. Use a transmission jack to support the weight during extraction.
Precision surfaces demand careful handling. Explain why using screwdrivers, metal picks, or pry bars is a critical error. Technicians often use them to remove old seals or guide the new rod. A single tiny scratch on the metal surface compromises the seal integrity immediately. Use designated brass or heavy plastic picks instead. Keep the work bench entirely clean and free of abrasive grit.
Detail the absolute necessity of precision when ordering replacement internals. If you attempt a hybrid rebuild, guessing dimensions guarantees failure. Micrometers and digital calipers are your best friends here. Write down every measurement clearly. Compare them against the manufacturer data sheets before placing your parts order.
Tip: Never measure your old seals to order new ones, as mechanical wear and continuous pressure will have altered their original dimensions. Always use a caliper to measure the internal sealing grooves directly.
Installation finishes only when the system proves stable. You must introduce fluid carefully. Rushing to lift a heavy truck immediately can blow fresh seals.
Air acts like a sponge inside hydraulic lines. Outline the procedure for cycling the lift multiple times. Do this entirely without a vehicle load. Raise the carriages about two feet, then lower them completely. Repeat this process to bleed trapped air from the hydraulic lines and the new cylinder. Check the fluid reservoir after each cycle. Top it off as the new barrel fills with oil.
Vibration shakes fittings loose over time. Reiterate the vital importance of torquing all mounting brackets. Follow manufacturer specifications precisely. Correct torque prevents dangerous side-loading on the new rod. Inspect the pivot pins and lubricate them thoroughly with high-grade grease. Ensure the hydraulic hoses route smoothly without pinching or twisting.
Never jump straight to maximum capacity. Recommend a phased weight test for safety. Start by lifting a light passenger vehicle halfway up. Engage the mechanical locks and inspect the bay. Monitor the floor for pressure drops or fitting weeps. If the system holds steady, lift the vehicle fully. Only return the bay to full commercial operation after it passes these load checks perfectly.
Shop profitability relies on dependable equipment. Summarize the evaluation framework to make smart choices. Rebuilds remain viable only for pristine, undamaged cylinders. Conversely, a complete replacement is the definitive, ROI-positive solution for units with structural wear, internal rust, or rod pitting. Do not waste labor hours chasing unfixable leaks. We encourage readers to audit their failing lifts proactively. Inspect the internal walls carefully for sludge and scoring. Consult with a reputable automotive equipment supplier to secure the correct replacement cylinder. Taking decisive action minimizes shop downtime and keeps your technicians safe.
A: A new replacement cylinder generally ranges from $500 to $800. This price depends heavily on the lift capacity and the specific brand. In contrast, basic rebuild kits cost $100 to $200. However, those lower kit prices completely exclude the cost of skilled labor and machine shop fees.
A: No. Pitting destroys seals instantly. The rough surface acts like sandpaper against rubber. The rod must be professionally re-chromed, or the entire cylinder replaced entirely. Simple seal kits will never hold pressure against a pitted metal rod.
A: Cylinders do not have a strict expiration date. Replacement is strictly condition-based. It is driven by total hours of use, fluid maintenance routines, and environmental factors like garage moisture. Regular fluid flushes extend their lifespan significantly.
A: Most standard car lifts use single-acting cylinders. In these systems, hydraulic pressure pushes the lift up, and natural gravity lowers it. Conversely, specialized heavy-duty commercial lifts sometimes use double-acting systems. These use hydraulic pressure for both the upward push and the downward pull.
