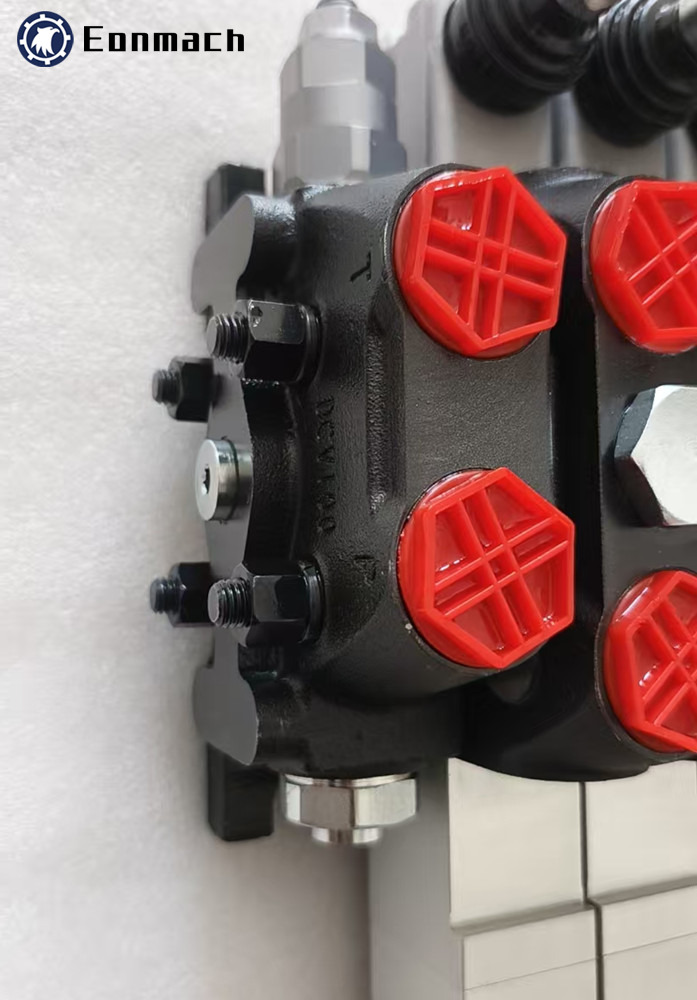

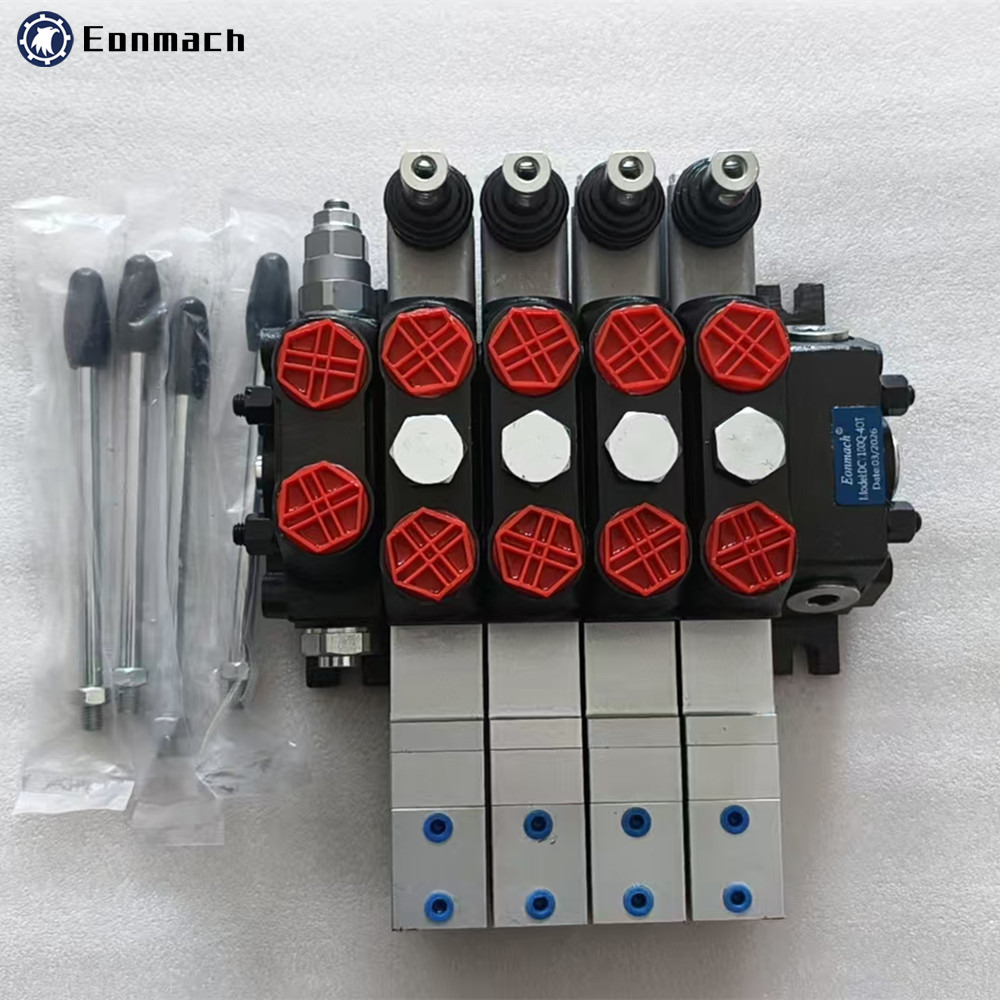

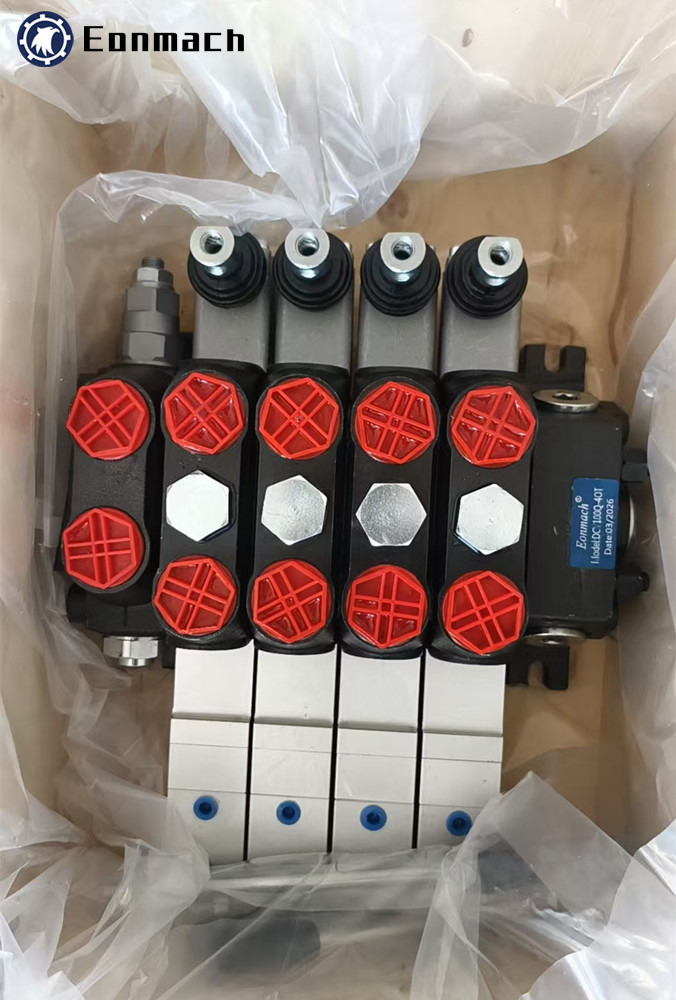

DCV100Q-4OT Control Valve for Grabage Compactor

DCV100Q-4OT Control Valve for Grabage Compactor

DCV100 series directional control valve is designed for high pressure hydraulic system such as garbage compactor, sanitation,etc.

Flow rate 100L/min(26.2 US GPM),MAX pressure 350Bar,Ambient temperature range -40°~80°，Structure 1~12 sections.

Core advantages of DCV100 pneumatic control valve: high pressure and durability, modularization and easy combination, safe and remote pneumatic control, stable performance and wide adaptability.  First, high pressure and large flow, strong adaptability to working conditions  -Rated pressure 25MPa, maximum 35MPa, impact resistance and high pressure resistance. -The rated flow is 100L/min, with sufficient flow and fast response. -Operating temperature  -40 ℃ ~ + 80 ℃ , stable operation in harsh environment.

2.Modular design, flexible and easy to maintain  -Sheet type structure, 1-12 units can be combined freely, and the number of units can be allocated as required. -Overflow/overload/one-way/oil make-up valve can be integrated, one valve with multiple functions to simplify the pipeline. -Convenient disassembly and assembly, single valve plate can be replaced separately, low maintenance cost.

 3. Pneumatic control drive, safe, remote and labor-saving  -Pneumatically operated, away from high voltage/flammable areas, explosion-safe. -can be remotely controlled, adapted to the cab/remote scene,Easy to operate. -Manual/pneumatic control combination is available, and the mode switching is flexible.  Reliable performance, less leakage and long service life  -Precision valve core + hard seal, small internal leakage and less external leakage. -Direct-acting safety valve with stable pressure and sensitive overload protection. -Dust-proof and waterproof design, anti-fouling and durable, long life.

 4. that universality is strong, the adaptability is wide, and the cost is excellent.  -Slide valve function A/O/Y/M/J optional, suitable for single/two-way cylinder. -Engineering machinery, sanitation vehicles, drilling equipment and other scenarios. -Compact structure, light weight and small installation space.

. FAQ .

Q1: Do you accept OEM or ODM manufacturing?

A1: Yes! We do accept OEM or ODM manufacturing. We will quote you the exact price and make the exact cylinder according to your specification and drawing.

Q2: Can we design our own package or print our own logo?

A2: Yes! Package and logo will be made acording to your requirements.

Q3: Could we get small quantity samples?

A3: Yes! We understand the quality test is important and we are glad to make the sample for you. The MOQ is 1pcs.

Q4: How long is the production time?

A4: Generally the production time is 15 days.

Q5: What is the warranty?

A5: One year against B/L date.

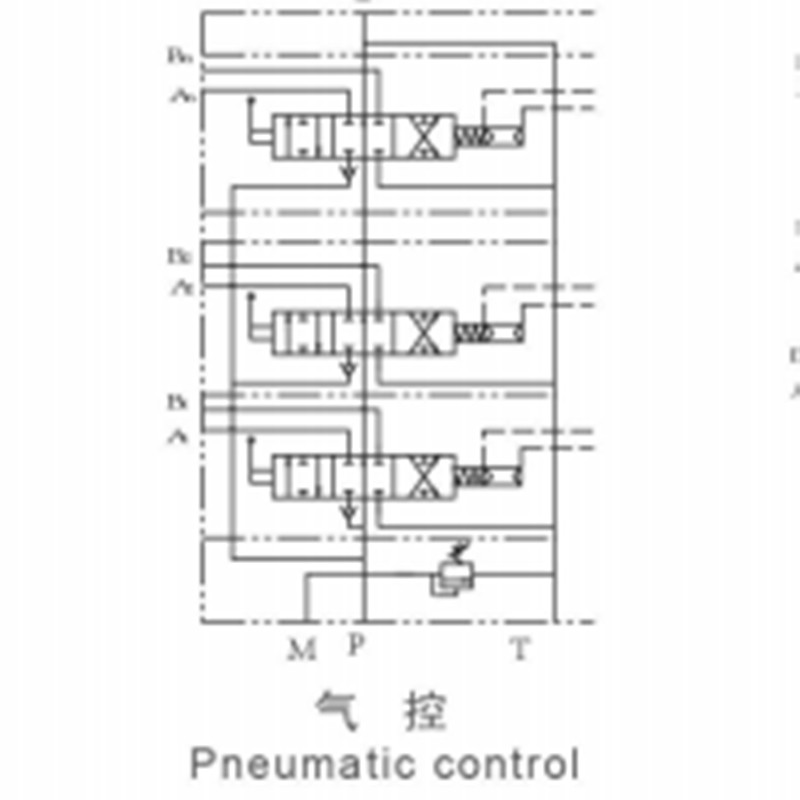

Hydraulic Schema
