How to Select a Suitable Directional Control Valve

How to Select a Suitable Directional Control Valve

1. Confirm Working Pressure

- Check the maximum system pressure of your tractor hydraulic circuit. The rated pressure of directional control valve must be higher than the actual working peak pressure to avoid bursting, deformation or internal leakage.

- For heavy-load lifting hydraulic cylinders, choose valves with a pressure safety margin of 20%–25%.

2. Match Rated Flow Rate

- Calculate the required oil flow for all hydraulic actuators (lifting cylinders, steering cylinders, auxiliary tools).

- If the valve flow is too small: cylinder movement will be slow and powerless.

- If flow is excessively large: it will cause energy waste, oil heating and hydraulic shock. Select a valve whose nominal flow matches your pump output.

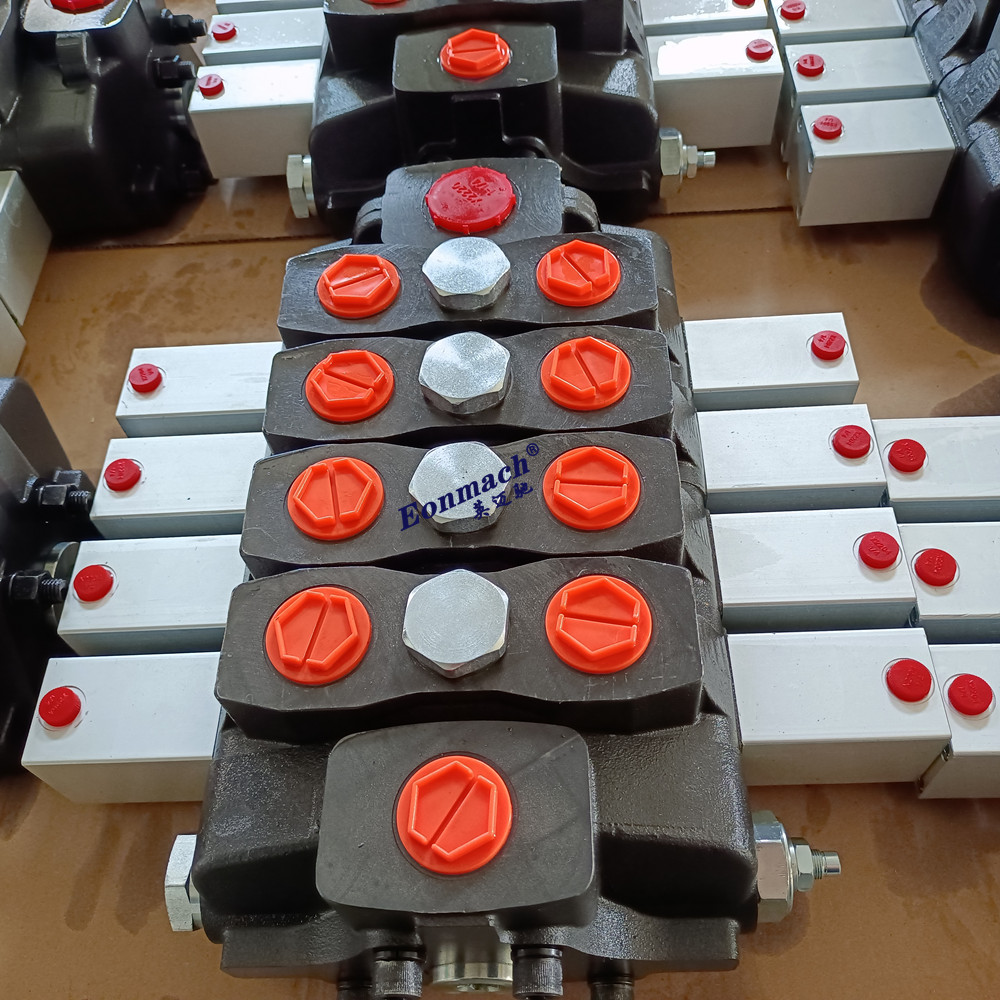

3. Select the Correct Number of Spools

- Each spool controls one independent hydraulic actuator.

- Count your existing and future expansion needs: lifting cylinder, front loader, rear ripper, remote output ports. Reserve 1–2 extra spools for later upgrades if necessary.

4. Choose Appropriate Valve Function Types

(1) Neutral position circuit type

- Open center: Suitable for gear pump systems on most traditional tractors; oil circulates back to the tank when handles are in neutral.

- Closed center: Used for variable displacement pumps, saves energy and reduces heat generation.

(2) Spool working mode

- Spring return: Automatically resets to neutral after you release the handle (most common for lifting cylinders).

- Detent position: Locks the spool in place for long-time continuous work.

(3) Pressure relief function

- Prioritize valves built with integrated overload relief valves for each circuit, which can protect hydraulic cylinders from pressure overload damage.

5. Connection Interface & Installation Size

- Confirm the pipe connection standard: metric threads, NPT or BSPP threads to match your existing hoses and fittings.

- Check mounting dimensions, hole spacing and installation space on your tractor frame to avoid modification difficulties.

6. Control Mode Selection

- Manual lever control: Low cost, simple structure, convenient for agricultural machinery operation.

- Optional electric hydraulic control: For centralized operation, remote control or automated modification scenarios.

7. Medium & Environmental Adaptability

- Make sure the valve is compatible with your designated hydraulic oil (anti-wear hydraulic oil, cold-resistant oil for winter areas).

- For outdoor farm work with dust, mud and rain, choose valves with good dustproof and waterproof grades. In low-temperature regions, select low-viscosity adaptive valve assemblies.

8. Brand Quality and After-sales Service

- Prioritize regular manufacturers with mature sealing components to reduce future oil leakage faults.

- Confirm spare parts (seal kits, replacement spools) are easy to purchase locally. Avoid discontinued obsolete models.

9. Compatibility with the Whole Hydraulic System

- Do not ignore matching accessories: pressure gauges, quick connectors, oil filters and overflow pipelines.

- If you modify an old tractor, verify the pump type, pipeline layout and oil tank structure before finalizing the valve model
