Product Uses

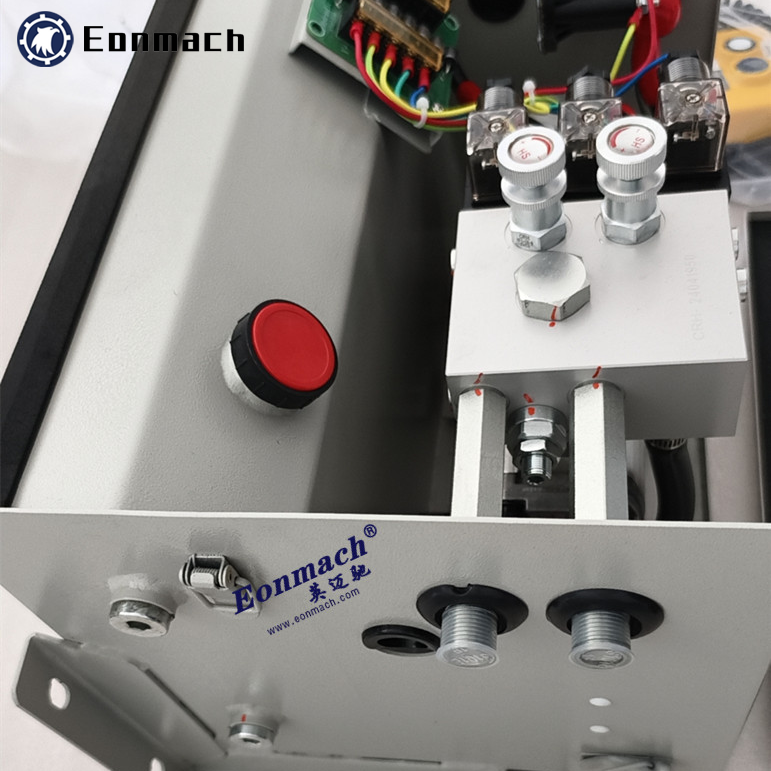

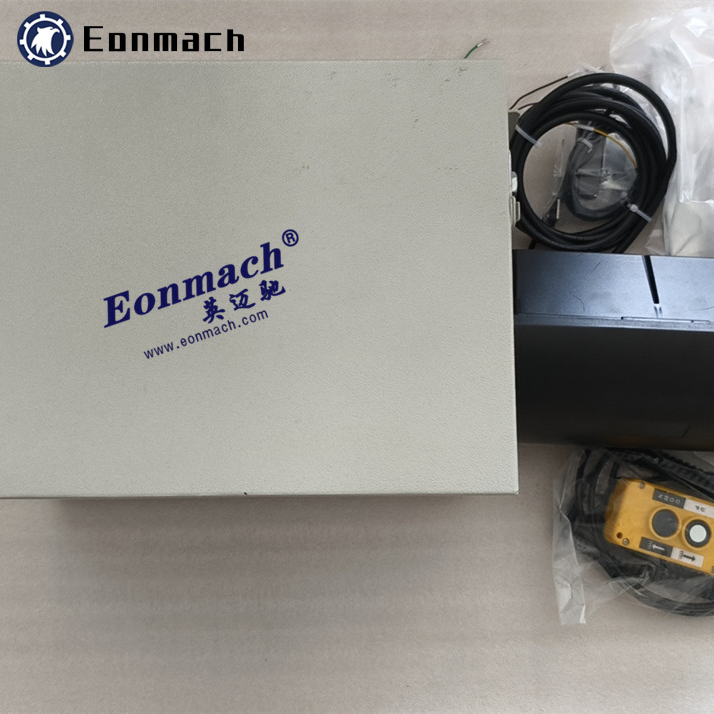

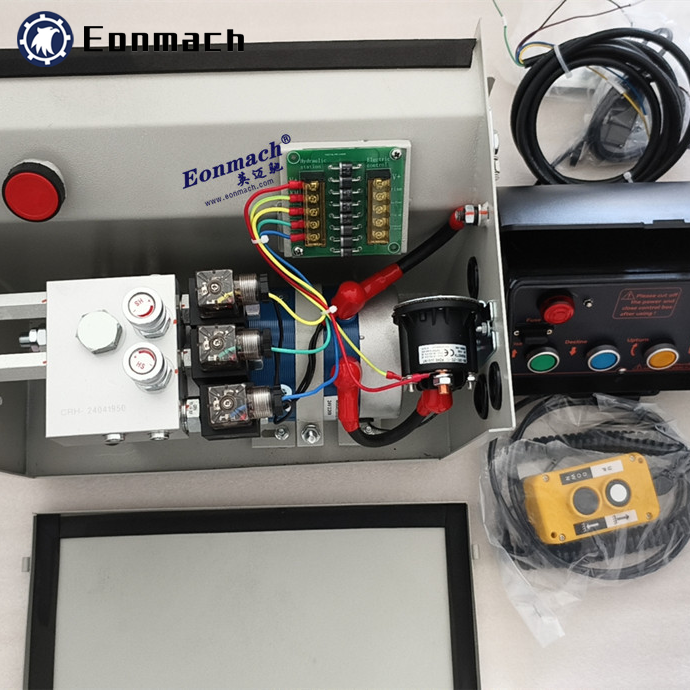

This hydraulic power unit for Automobile Tail Plate ，it provide lift, down,open and close function.

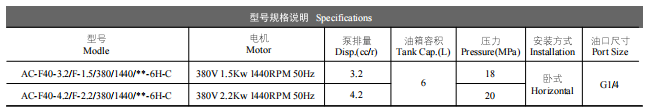

Technical Parameters
Product Advantage
The tailboard power unit is the core component of the automobile tailboard, which has the following advantages:
1.Strong carrying capacity: able to output large force and torque, suitable for loading and unloading of heavy cargo.

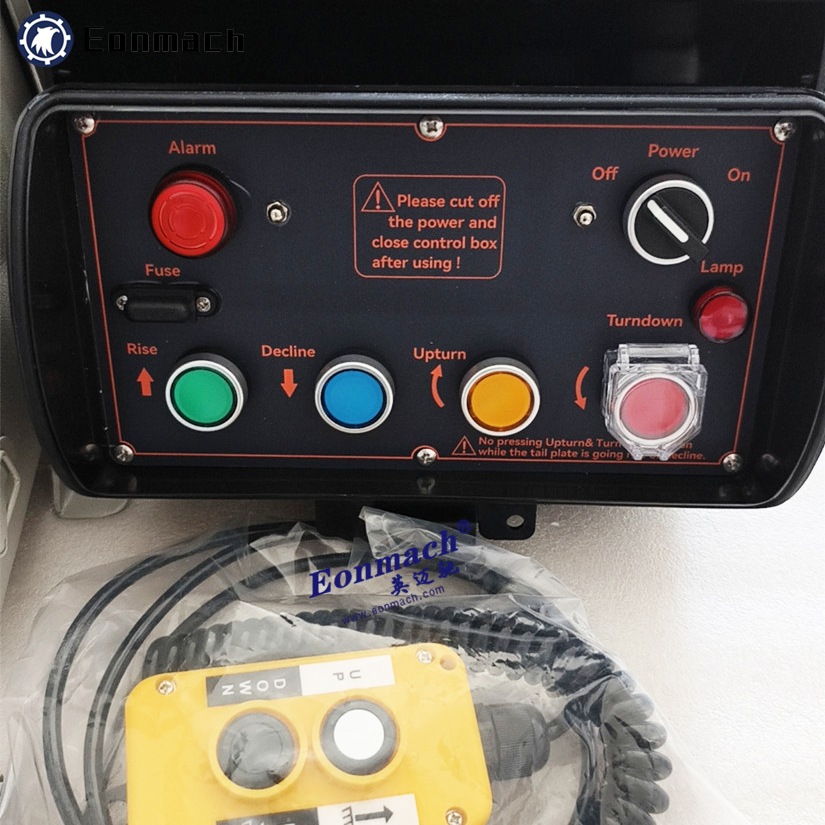

2.Easy to operate: it can be controlled by a light operating lever or button to reduce labor intensity.
3.Compact: Compact design for installation in the limited space of the vehicle.
4.Safe and reliable: with overload protection function to extend the service life of the equipment.
5.Simple maintenance: only the hydraulic oil and filter element need to be replaced regularly, with low maintenance cost.
6.Smooth operation: The characteristics of the hydraulic system keep it stable during operation and reduce cargo shaking and breakage.
7.Improve efficiency: complete the loading and unloading of goods quickly and improve the transportation efficiency.
Notice
1.This power unit is S3 working type, can not work continuously, can work
repeatedly.
2.Before installation, please be sure the cleanliness of component like tank, tube
and fittings, without any impurities.
3.Viscosity of oil should be 15-68CST, should be clean and without impurities.
Suggest to use N46 hydraulic oil. If need to work all-weather, must use
aviation hydraulic fluid.
4.This power unit is horizontal installation.
5.After first work, oil tank should be checked immediately to see if there’s
enough oil.
6.After the first 100 working hour, hydraulic oil should be replaced. After that,
the oil should be replaced every 3000 working hours.
FAQ
Q What can I pay my order?
A We accept T/T and Western Unionx .
Q Do you have any certificate?
A We have passed CE certificate.
Q How long is the production time?
A Generally the production time is 25 days.
Q What is the warranty?
A One year

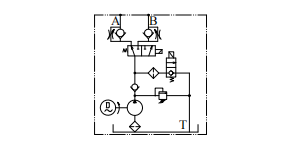

Hydraulic Schematic
