Hydraulic Power Units02

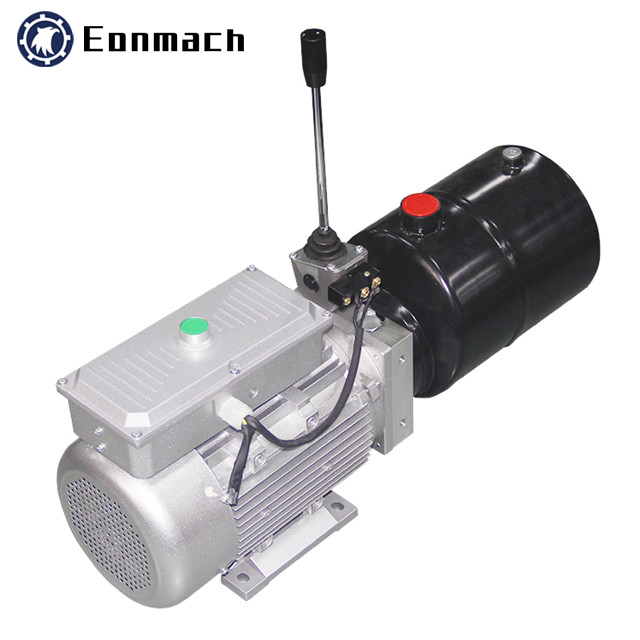

220V Dock leveler hydraulic power unit 380V dock bridge hydraulic power pack

  • EM19-0078

  • EM

  • 8412299090

Availability:
Quantity:
Inquire Add to Basket

hydraulic power units

Product Application

220V Dock leveler hydraulic power unit 380V dock bridge hydraulic power pack is designed exclusively for the dock leveler,consisting of high pressure gear pump,DC motor,multi-functional manifold,valve and tank,etc.After the main platform is fully lifted,the lip rises automatically .The both lowering movements are activated by the solenoid valves with speed adjusted by the throttles.
SPECIFICATIONS FOR 220V Dock leveler hydraulic power unit 380V dock bridge hydraulic power pack
Model
Motor Volt
Motor Power
Rated Speed
Displacement
System pressure
Tank  Capacity
EM-AC3AF24WADE19DS1
380V
0.75KW
1450RPM
2.1mL/r
16Mpa
6L
EM-AC2AF24WADE19DS1
220V
2.7mL/r

   380V Dock Bridge Hydraulic Power Pack
