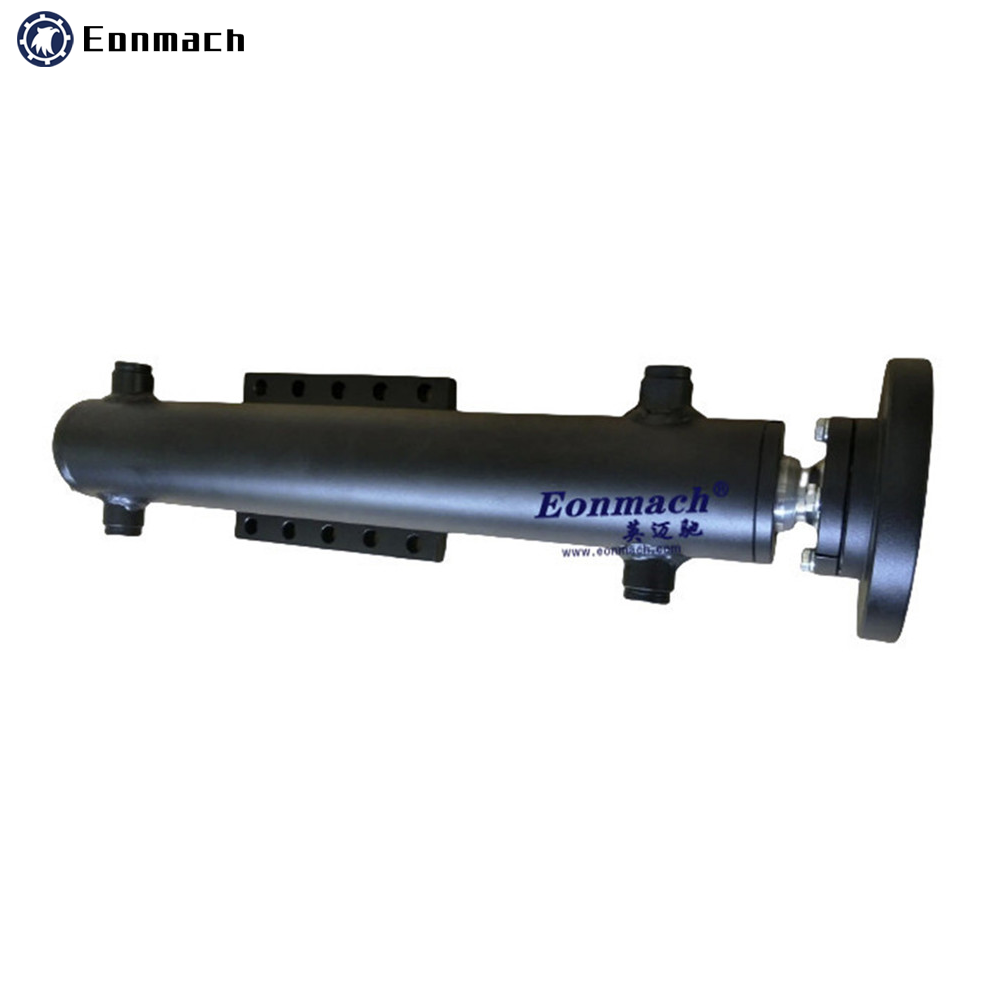

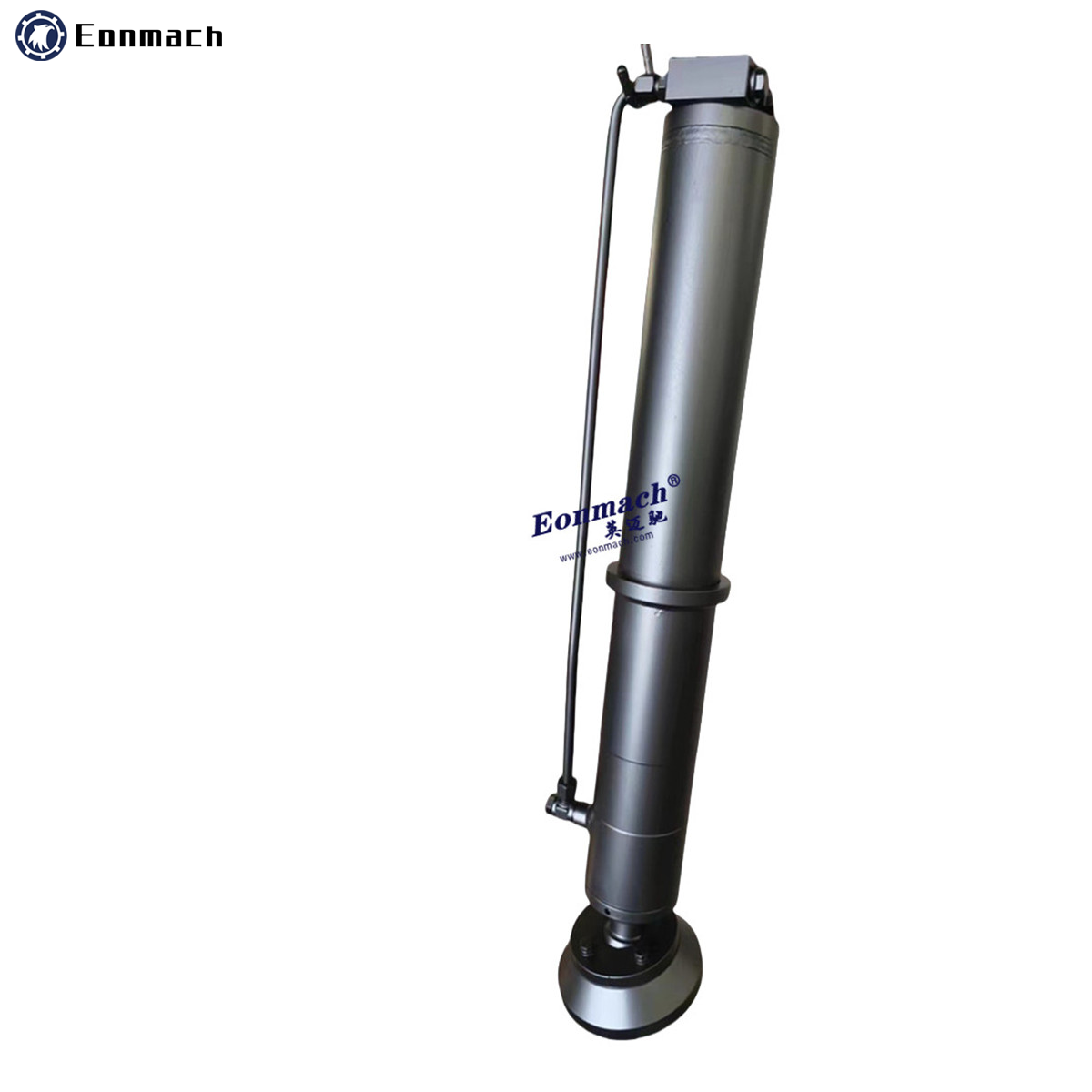

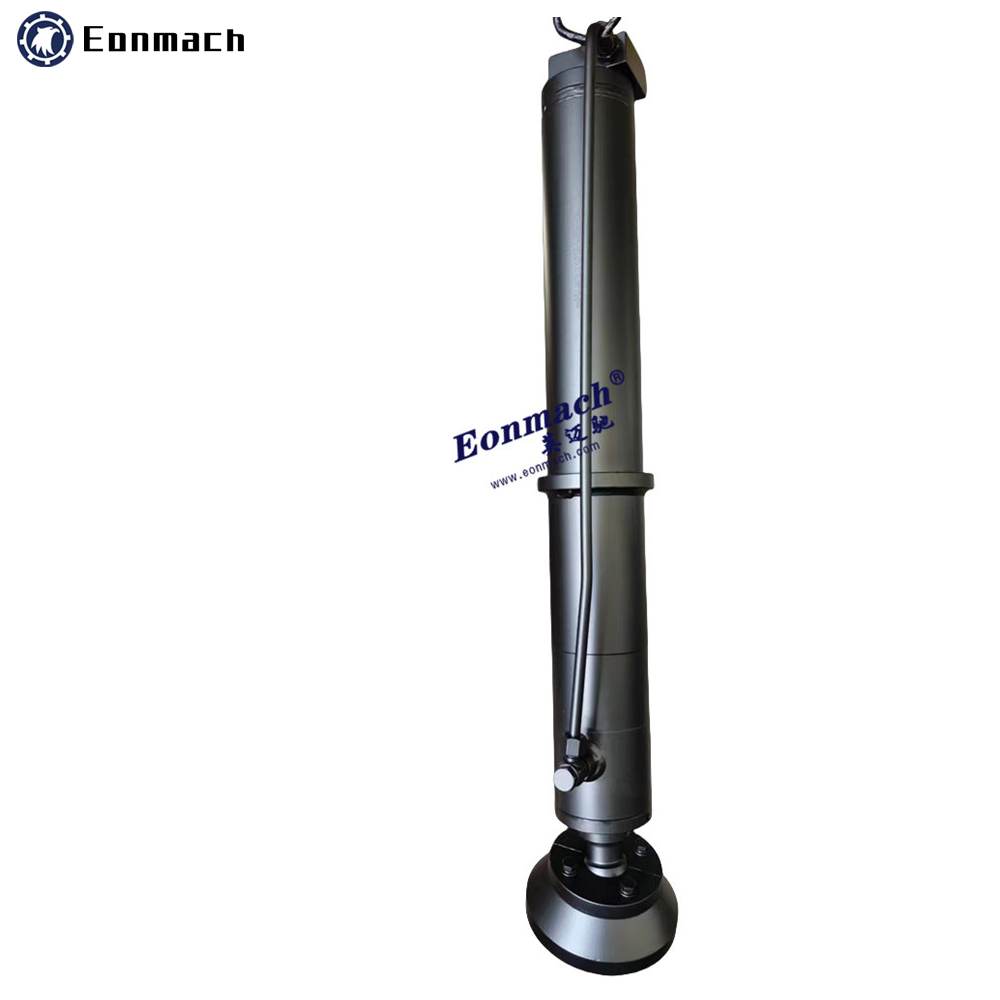

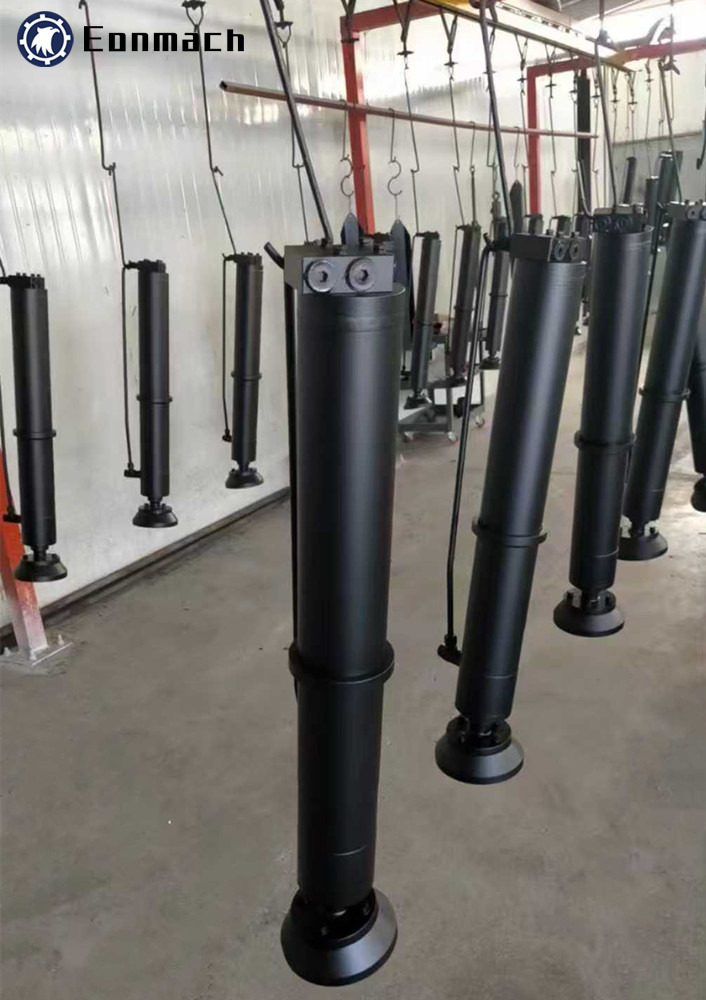

Outrigger Hydraulic Cylinder

Outrigger Hydraulic Cylinder

Product Uses

This outrigger hydraulic cylinder for Pump truck,obstacle clearance vehicle,aerial work vehicle and crane truck etc.

Technical Parameters

Bore size 80mm,Rod size 50mm,stroke 550mm.

Product Advantage

1.Strong bearing capacity: The hydraulic outrigger can bear a large vertical load and is suitable for supporting heavy equipment, such as cranes, excavators and other construction machinery, to ensure the stability of the equipment during operation.

2.Flexible lifting: It can quickly realize the lifting of the outrigger and adapt to different terrain conditions. This enables the equipment to quickly adjust the support height in complex terrain and improve work efficiency.

3.Convenient operation: The operator can control the lifting of the hydraulic outrigger only through simple operation, which reduces the labor intensity and improves the convenience of operation.

4.Good stability: through the precise control of the hydraulic system, the hydraulic leg can maintain stability during the working process, provide reliable support for the equipment, and reduce the safety risk caused by shaking or tilting.

5.Adaptable to complex working conditions: It can be used under various complex working conditions, such as rugged terrain, slope, etc., to provide stable support for vehicles or equipment and ensure the safety of operation.

   Outrigger cylinder is mainly used for cranes, pump trucks, truck-mounted cranes, aerial work vehicles, drilling rigs and other equipment, as the core component of support leveling and load-bearing stability, with the following advantages:

 1. Strong bearing capacity and stable support

-High pressure and large load design, high pressure bearing, large output thrust, can bear the load of the whole vehicle and operation, stable bearing and no settlement.

-integrally forged cylinder block, thickened flange and high strength piston rod,Impact resistance, eccentric load resistance, no deformation under heavy load.

 -Cooperate with the hydraulic lock to lock and maintain pressure, stop the machine and work for a long time without retraction, so as to eliminate potential safety hazards.

 2. Comprehensive safety protection and high reliability

-Built-in buffer structure, telescopic end to reduce impact, reduce body vibration and component wear.

-Multiple dust-proof, silt-proof and waterproof sealing combination, which is not easy to enter impurities in outdoor, construction site and muddy environment.

-Explosion-proof and leak-proof design, stable operation under high and low temperature conditions,Adapt to the complex environment in the field.

 3. Accurate leveling and convenient operation

 -The telescopic action is smooth, linear and controllable, and the multi-cylinder synchronization is good, which can quickly complete the horizontal leveling of the body.

-The hydraulic drive moves briskly, and a single person can complete the deployment, retraction and lifting of the outrigger, which saves time and effort.

-Optional travel limit and induction device can be used to precisely control the extension length and adapt to different sites.

 4. Compact structure, wide adaptability  -Integrated design, small size, less occupied space, convenient for vehicle layout. -Various mounting forms (hinged support, trunnion, flange).

1. High-strength material & strong load capacity

With heat treatment and integrated forged joints, they can withstand heavy loads and lateral impact without bending easily.

2. Reliable anti-leakage sealing system

Famous brand combined seals together with mirror-polished, chrome-plated piston rods effectively prevent oil leakage and dirt intrusion. The outriggers will not sink slowly under long-time loading.

3. Built-in safety hydraulic lock

An integrated hydraulic lock can be installed inside each cylinder. It locks pressure immediately if pipelines rupture, preventing vehicle tipping. Stroke buffer devices reduce hydraulic impact during extension and retraction.

4. Good wear and corrosion resistance

Advanced surface treatments and professional anti-rust painting enable our cylinders to work stably in muddy construction sites, coastal salt fog and low-temperature conditions.

5. Strict quality control

Automatic robotic welding and full pressure & leakage tests are carried out for every finished cylinder to guarantee stable and smooth operation.

6. Flexible customization & convenient service

We offer OEM & ODM services based on customers’ drawings and parameters for truck cranes, pump trucks, aerial platforms and other machinery.

We provide fast delivery and professional technical after-sales support.

Precautions for the Use of Outrigger Hydraulic Cylinder

1. Before operating the outrigger cylinder, ensure the vehicle is parked on a firm, flat and horizontal ground. Soft, sloped and uneven ground is prohibited to avoid cylinder overload, tilting or tipping accidents.

2. Clean dirt, gravel and sundries around the outriggers before extension. Foreign objects under the support feet may cause unbalanced stress and cylinder deformation.

3. Extend and retract the outrigger cylinder slowly and steadily. Avoid fast operation, sudden start or sudden stop, which may cause hydraulic impact, seal damage and oil leakage.

4. Do not exceed the rated load capacity of the outrigger cylinder. Overload operation will lead to permanent deformation, cylinder rod bending or internal structural damage.

5. Keep the cylinder rod surface clean and dry during operation. Prevent sand, mud, dust and corrosive substances from adhering to the piston rod, so as to protect the dust seal and internal sealing components.

6. Do not work for a long time with the outrigger cylinder fully extended under load. Proper retraction can reduce long-term pressure on the hydraulic system and extend the service life of seals.

7. Check for oil leakage, abnormal noise, jitter and slow movement during cylinder operation. Stop working immediately if any abnormality is found and perform inspection and maintenance.

8. Never adjust, disassemble or repair the outrigger hydraulic cylinder under loaded and pressurized conditions. Release the system pressure completely before maintenance.

9. After work is finished, fully retract all outrigger cylinders and ensure the support feet are completely lifted and locked to prevent collision damage during vehicle traveling.

10. Regularly check the hydraulic oil level and oil quality. Replace deteriorated hydraulic oil on schedule to ensure stable working performance of the outrigger cylinder
