EM19-8305
EONMACH
8413602290
| Quantity: | |
|---|---|
Product Uses

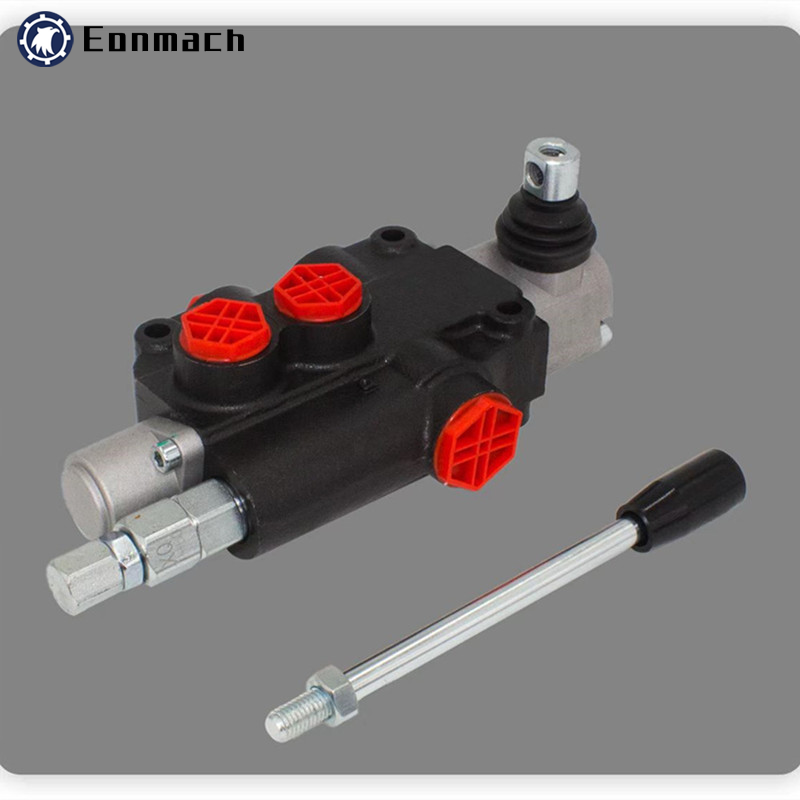

This P80 series directional control valve for small forklift,loader,mining equiment and excavator etc.

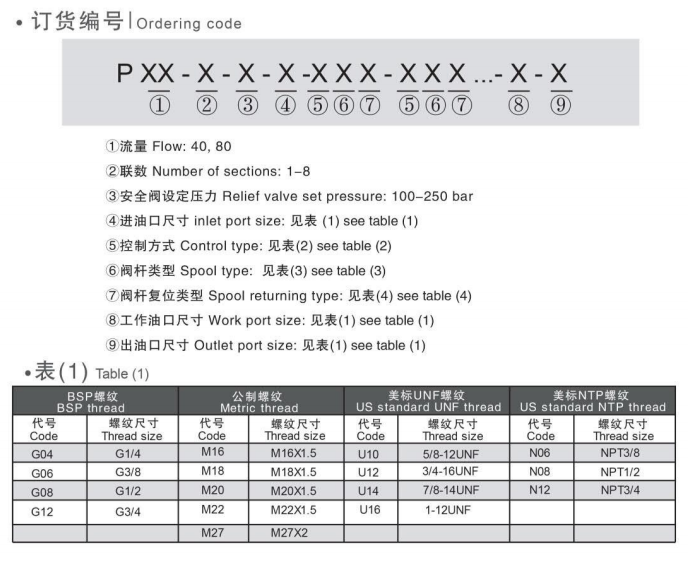

Technical Parameters
Product Advantage
P80 multi-way valve is a key component widely used in construction machinery and hydraulic systems. Its main advantages include:
1. Compact structure and high working pressure: P80 control valve adopts integral design and integrates the functions of oil inlet, oil return and reversing, which is compact and space-saving. At the same time, it can withstand high working pressure to ensure stable operation under high pressure environment.
2.Reliable performance and strong dirt resistance: The valve is made of fine cast iron to reduce internal leakage.Uarantee long-time pressure maintaining and stable operation. In addition, the design of the direct-acting safety valve improves dirt resistance, avoids clogging, prolongs service life, and reduces maintenance costs.

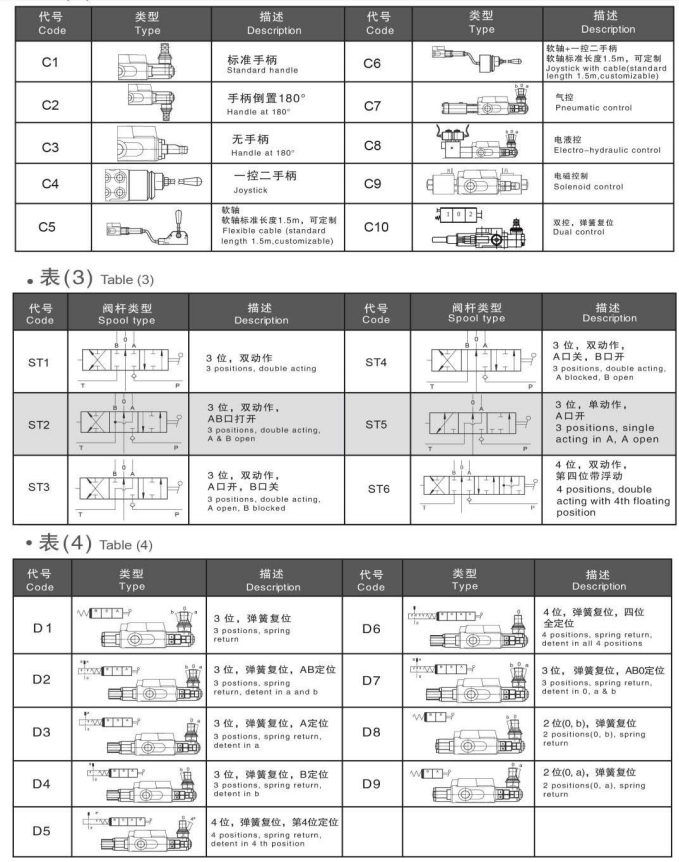

3.Multiple functions and flexible operation: P80 multi-valve provides multiple function options, such as overflow valve, overload valve, check valve and make-up valve, which can be flexibly configured according to needs. The slide valve has multiple options such as A, O, Y, P, etc., and supports any combination of 1-12. The handle bar can be installed in a flexible way, and a pressure output port can be provided to facilitate the connection with other hydraulic components.
4. Good universality and wide application range: the valve supports multiple control modes, including manual control, flexible shaft, pneumatic control, electro-hydraulic control, electromagnetic control, etc., and is suitable for engineering machinery such as forklifts, excavators, loaders, etc., as well as mining, light industry, environmental sanitation, agricultural machinery and other fields.
Hydraulic Schematic
Product Uses

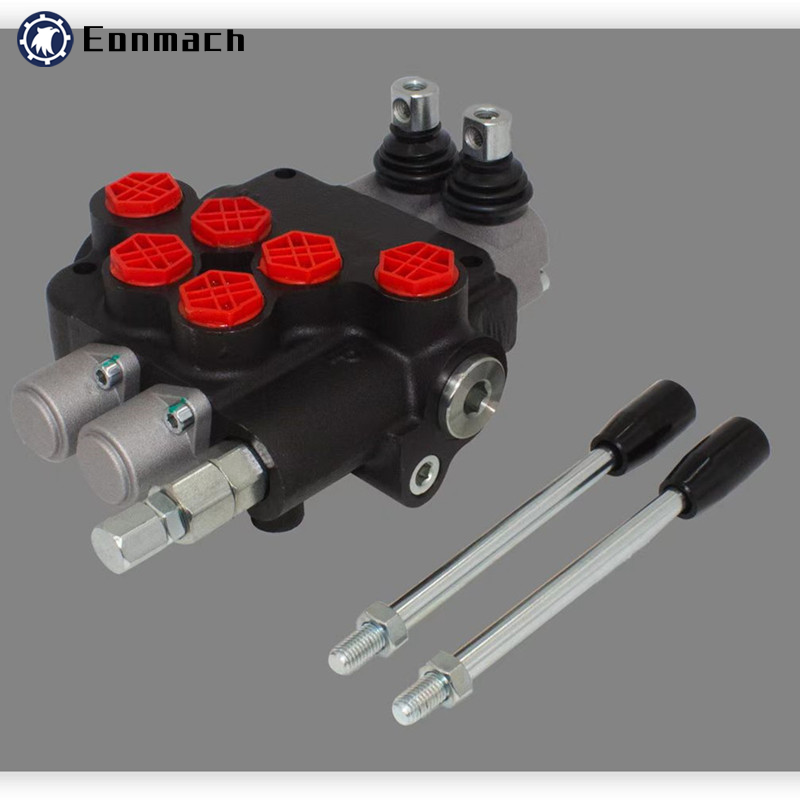

This P80 series directional control valve for small forklift,loader,mining equiment and excavator etc.
Technical Parameters
Product Advantage
P80 multi-way valve is a key component widely used in construction machinery and hydraulic systems. Its main advantages include:
1. Compact structure and high working pressure: P80 control valve adopts integral design and integrates the functions of oil inlet, oil return and reversing, which is compact and space-saving. At the same time, it can withstand high working pressure to ensure stable operation under high pressure environment.
2.Reliable performance and strong dirt resistance: The valve is made of fine cast iron to reduce internal leakage.Uarantee long-time pressure maintaining and stable operation. In addition, the design of the direct-acting safety valve improves dirt resistance, avoids clogging, prolongs service life, and reduces maintenance costs.
3.Multiple functions and flexible operation: P80 multi-valve provides multiple function options, such as overflow valve, overload valve, check valve and make-up valve, which can be flexibly configured according to needs. The slide valve has multiple options such as A, O, Y, P, etc., and supports any combination of 1-12. The handle bar can be installed in a flexible way, and a pressure output port can be provided to facilitate the connection with other hydraulic components.
4. Good universality and wide application range: the valve supports multiple control modes, including manual control, flexible shaft, pneumatic control, electro-hydraulic control, electromagnetic control, etc., and is suitable for engineering machinery such as forklifts, excavators, loaders, etc., as well as mining, light industry, environmental sanitation, agricultural machinery and other fields.
Hydraulic Schematic
