Accurate Hydraulic Cylinder measurement isn’t just about ensuring the part fits physically; it’s about guaranteeing the system operates safely and efficiently. An incorrect bore size can drastically change the force output, while a miscalculated stroke length can lead to mechanical binding or catastrophic structural failure. Whether you are replacing a standard tie-rod cylinder or sourcing a custom welded component, gathering precise data is the first critical step.
This guide provides a comprehensive walkthrough on how to measure a hydraulic cylinder correctly. We will cover the essential dimensions you need to capture, the tools required for the job, and the common pitfalls to avoid to ensure your machine is back up and running with the perfect fit.

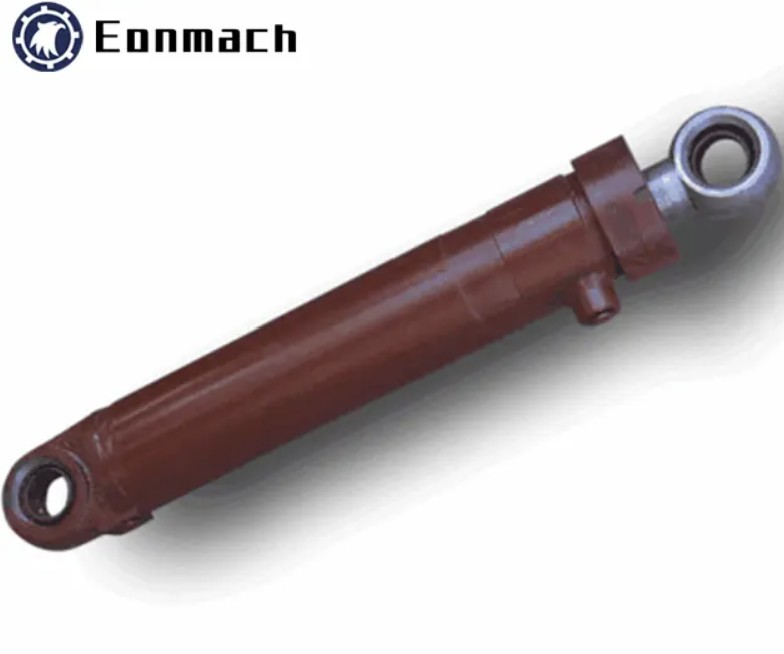

Double Acting Piston Rod Hydraulic Cylinder For Forklift
Before diving into the “how-to,” it is important to understand “what” you are looking for. A hydraulic cylinder is defined by a specific set of geometric parameters. Missing just one of these specifications can lead to ordering the wrong part. Generally, these measurements fall into three categories: core dimensions, installation dimensions, and connection specifications.
The core dimensions dictate the power and range of motion of the cylinder. These are the internal functional specs that determine if the cylinder can do the job required.
Bore Diameter: This is the inner diameter of the cylinder barrel. It is the most critical factor regarding force. A larger bore area allows for greater force generation at a specific pressure.
Rod Diameter: This measures the thickness of the chrome-plated piston rod that extends and retracts. This dimension is vital for column strength. If a replacement rod is too thin, it may buckle under a heavy compressive load.
Stroke Length: The stroke is the total distance the rod travels from fully retracted to fully extended.
These measurements ensure the cylinder physically fits into the machinery space and connects to the moving parts without interference.
Retracted Length (Closed Center): The distance between mounting points when the cylinder is completely closed. If this is too long, the machine won’t be able to return to its starting position.
Extended Length (Open Center): The distance between mounting points when the cylinder is completely open. If this is too short, the machine won’t reach its intended range of motion.
Pin-to-Pin Length: This is the standard way to reference length for pivot-mounted cylinders, measuring from the center of the base pin to the center of the rod pin.
Finally, you need to know how the cylinder attaches to the hydraulic system and the machine frame.
Mounting Type: How does it attach? Common styles include clevis, cross-tube, trunnion, and flange mounts.
Rod End Style: The end of the rod might have a male thread, female thread, or a cross-tube.
Hydraulic Ports: These are the inlets and outlets for the fluid. You need to know the thread size and type (e.g., NPT, SAE, JIC) to connect your hoses.
Now that you understand the terminology, let’s walk through the actual measurement process. Ideally, you should have the cylinder removed from the machine and cleaned of excess grease and dirt.
The bore is the inside diameter of the barrel. If the cylinder is disassembled, you can measure the inside wall directly with a caliper. However, most people need to measure an assembled cylinder.
To do this, measure the Outside Diameter (OD) of the cylinder barrel using calipers. Then, you must account for the wall thickness. A standard rule of thumb for steel hydraulic cylinders is to subtract the wall thickness from the OD.
Note: Wall thickness varies by manufacturer and pressure rating. If you cannot find the specs, measuring the OD is usually sufficient for a supplier to identify the standard bore size, as tubing comes in standard industrial sizes (e.g., a 3.5" OD barrel usually houses a 3" bore).
Using your calipers or a micrometer, measure the chrome piston rod. Measure it at a point that has not seen uneven wear, ideally near the clevis or attachment point.
Tip: Be precise here. Rods often come in standard increments (e.g., 1.5", 1.75", 2"). If your measurement is 1.48", it is likely a 1.5" rod that has experienced wear or is manufactured with a specific tolerance.
The stroke is the difference between the extended length and the retracted length.
Formula: Extended Length – Retracted Length = Stroke.If the cylinder is still on the machine and dead, you might not be able to extend it fully. in this case, look for a “wear mark” on the rod which indicates how far it usually travels, though this is less accurate. The best method is to disconnect one end and manually pull the rod out to its mechanical stop.
For pin-mounted cylinders (clevis, cross-tube):
Retracted: Push the rod all the way in. Measure from the center of the rear pinhole to the center of the rod-end pinhole.
Extended: Pull the rod all the way out. Measure from the center of the rear pinhole to the center of the rod-end pinhole.
For flange or thread-mounted cylinders, the “length” reference point changes. You typically measure from the mounting face (where it bolts to the machine) to the end of the rod thread or the specific reference point designated by the manufacturer.
If your cylinder uses pins, you must measure the Pin Diameter. A 1-inch pin will not fit in a 0.9-inch hole, and a 0.9-inch pin will slop around in a 1-inch hole, causing rapid wear.
Also, measure the Mounting Width (often called the lug width or boss width). This ensures the mounting bracket will fit inside the ears on your machine.
This is where many errors occur. A port might look like 1/2 inch, but is it NPT (tapered pipe thread) or SAE O-Ring Boss (straight thread with an O-ring)?
Measure the thread diameter.
Count the threads per inch (TPI) using a thread pitch gauge.
Compare these two numbers against a thread identification chart (JIC, NPT, SAE, BSPP).
Don’t rely on memory. Write down every dimension as you take it. Sketch a simple diagram of the cylinder and label dimensions A, B, C, etc., corresponding to your notes. This sketch will be invaluable when you speak to a sales representative or engineer.
You cannot eye-ball hydraulic measurements. To get data you can trust, you need the right tools.
Calipers: A digital or vernier caliper is essential for measuring rod diameters, pin sizes, and port threads. It offers precision down to 0.001 inches.
Tape Measure: Suitable for measuring overall length (retracted/extended) and stroke, where tolerances are slightly looser (usually +/- 0.060 inches).
Thread Pitch Gauge: A small, inexpensive tool used to identify the thread count of ports and rod ends.
Micrometer: For high-precision requirements, especially when checking a rod for ovality or wear, a micrometer provides the highest accuracy.
Measuring a removed cylinder is always preferred. It allows you to fully retract and extend the unit and access all ports and mounts easily.
However, if you must measure an installed cylinder:
Ensure the machine is locked out and tagged out.
Relieve all hydraulic pressure.
Be aware that you may not be able to get a true “Extended Length” measurement if the machine’s linkage stops before the cylinder hits its internal stop.
Never measure a cylinder that is under pressure. High-pressure hydraulic fluid can penetrate the skin (injection injury), which is a severe medical emergency. Always wear safety glasses and steel-toe boots. If you need to disconnect hoses to measure ports, have spill kits ready for residual oil.
Why go through all this trouble? Because the consequences of guessing are costly.
Most aftermarket replacements are sold based on standard categories (e.g., “3x8 cylinder” meaning 3" bore, 8" stroke). However, “standard” varies between brands. Detailed measurements allow you to cross-reference your specific unit against catalog specs to ensure a proper match.
Imagine waiting three days for a replacement cylinder, only to find the base pin is 1.5" and your machine takes a 1.25" pin. Or finding that the ports are facing the frame, making hose connection impossible. Accurate measurement prevents these installation nightmares.
If you replace a 4-inch bore cylinder with a 3.5-inch bore cylinder because you measured incorrectly, your machine will lose approximately 23% of its lifting force. Conversely, if you oversize the bore, the cylinder will move slower because the pump has to fill a larger volume. Accuracy ensures your machine performs exactly as the manufacturer intended.
For specialized or heavy-duty applications, basic length and width aren’t enough.
You must identify the pressure rating. A standard agricultural cylinder might be rated for 2,500 PSI, while an excavator cylinder might need to withstand 5,000 PSI. The physical dimensions might look similar, but the wall thickness and seal composition will differ. Always check the nameplate or machine manual for pressure requirements.
Hydraulic components are manufactured globally. Your machine might be American (Imperial/Standard) while the cylinder is European or Asian (Metric). A 25mm rod is almost 1 inch (25.4mm), but they are not interchangeable. Use calipers to determine if you are working with millimeters or inches. If your measurements end in odd decimals in inches (e.g., 0.984"), switch your calipers to metric—it’s likely a clean 25mm.
Old cylinders stretch and wear. A pinhole that measures 1.05 inches might have started as a 1.00-inch hole that has “wallowed out.” When ordering a replacement, you usually want the original dimension, not the worn dimension. If you find significant deformation, you may also need to repair the mounting ears on the machine itself.
Even experienced mechanics make mistakes. Here are the top three to avoid.
Confusing the cylinder OD with the Bore ID is the most common error. Remember: OD includes the metal wall; Bore is the empty space inside. Regarding stroke: Do not measure the length of the visible chrome rod and assume that is the stroke. The stroke is strictly the travel distance, not the physical length of the rod material.
“Clevis” and “Tang” mounts look similar but function differently. A clevis has two ears (female), while a tang is a single tab (male). Confusing these will require cutting and welding to fix.
Assuming “it looks like a pipe thread” is risky. NPT and BSPT (British Standard Pipe Taper) look nearly identical but have different thread angles. Screwing one into the other will damage the threads and cause leaks. Always use a thread gauge.
Before you pick up the phone to order a cylinder or visit a hydraulic shop, ensure you have the following data.
Bore Size: ______
Stroke Length: ______
Rod Diameter: ______
Retracted Length (Pin-to-Pin): ______
Pin Diameter: ______
Mounting Type: ______
Port Type & Size: ______
Pressure Rating (if known): ______
Double-check your numbers. Does the stroke plus the retracted length equal the extended length? (Retracted + Stroke = Extended). If the math doesn’t add up, remeasure.
If your cylinder has integrated valves, electronic position sensors, or complex trunnion mounts, standard measurement techniques might not suffice. In these cases, it is best to send the cylinder to a repair shop or manufacturer for professional evaluation and reverse engineering.
Measuring a hydraulic cylinder is a process that rewards precision and patience. By systematically gathering the core dimensions, verifying installation fits, and identifying connection types, you eliminate the guesswork from repairs. Whether you are maintaining a fleet of construction equipment or fixing a backyard log splitter, accurate hydraulic cylinder measurement is the key to reliable operation, safety, and long-term performance. Don’t just eyeball it—measure it, record it, and get the right part the first time.
