Selecting the correct lift cylinder dictates both your shop's safety and its overall operational success. Every day, technicians rely on synchronized dual Stereo Garage Cylinder systems to elevate extremely heavy vehicles securely. Mismatched or under-specced components quickly trigger dangerous uneven lifting conditions. They frequently cause catastrophic seal blowouts, unbalanced loads, and expensive workflow downtime. Commercial auto shops and high-end residential garages simply cannot risk these types of equipment failures. Your lifting machinery demands exact specifications to maintain perfect stability during critical operations. This guide completely breaks down the core sizing parameters, primary configurations, and crucial selection criteria. You will discover exactly how to evaluate and source a highly reliable lifting solution for your specific garage environment. We focus heavily on matching precise mechanical tolerances to your physical lift structure. By following these practical steps, you ensure long-term technician safety while avoiding unnecessary premium markups on unneeded features.
Synchronization is crucial: "Stereo" or paired garage cylinders must maintain identical flow rates and pressure tolerances to ensure stable, level lifting.
Spec matching dictates safety: Bore size, stroke length, and rod diameter must align exactly with the specific weight capacity and clearance of your garage lift structure.
OEM vs. Aftermarket: High-quality aftermarket hydraulic cylinders can offer strong ROI, provided they meet strict industry safety certifications (like ALI standards).
Maintenance prevents failure: Proactive seal inspection and fluid contamination checks are non-negotiable for twin-cylinder setups.
Uneven lifting poses a catastrophic risk in two-post or four-post garage lifts. Vehicles naturally carry highly uneven weight distributions. The front engine bay typically weighs significantly more than the rear trunk area. A "stereo" setup utilizes two perfectly synchronized cylinders to manage this asymmetrical load securely. If one cylinder lags behind the other, the vehicle instantly tilts. This imbalance easily leads to dropped vehicles, destroyed customer property, and severe technician injuries.
What defines a highly successful cylinder system? You want perfectly consistent lift speeds across both steel columns. The hydraulic system must exhibit absolute zero drift when paused mid-air. It also needs completely leak-proof seals while holding the maximum rated payload for extended periods.
Let us clarify the terminology. We use the term "stereo" to describe paired setups functioning together. Automated garage storage platforms and automotive lifts rely heavily on them. They operate as mechanical twins. They share a single hydraulic power unit to move upward and downward in perfect harmony.
Note: Synchronized lifting systems require exact matching in internal bore finishing and seal friction coefficients; replacing only one cylinder in a paired setup often leads to uneven lifting rates.
Garage lifts rely on a few primary mechanical configurations to elevate vehicles safely. You must understand how they operate fundamentally to choose correctly.
This mechanism places the cylinder rod directly against the lifting carriage. As pressurized fluid fills the lower chamber, the heavy steel rod pushes the carriage straight up the column.
Advantages include:
Fewer moving parts to inspect during routine maintenance.
Substantially lower lubrication requirements over the equipment lifespan.
A much smoother overall operation during maximum capacity lifts.
This distinct configuration uses the cylinder to push a heavy-duty chain and pulley mechanism. The hydraulic ram extends upwards, pulling the chain tightly, which subsequently lifts the steel carriage.
Advantages include:
Significantly faster vehicle lifting speeds.
A much shorter physical cylinder profile.
Ideal for residential garages lacking excessive vertical ceiling clearance.
Most gravity-descent automotive lifts utilize single-acting cylinders. Fluid simply enters one bottom port to push the ram up. Gravity safely pulls the carriage down as valves release the fluid back into the main reservoir. Double-acting variants feature two distinct fluid ports. They utilize hydraulic pressure to push and pull mechanically. Complex automated multi-level garage storage platforms often require double-acting setups. They ensure precise vertical control in both directions, combating high winds or uneven platform loads.

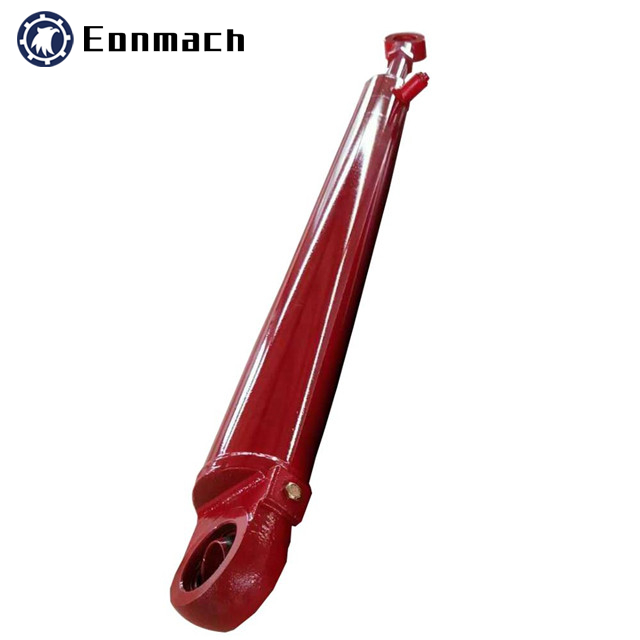

Industrial-grade stereo garage cylinder designed for synchronized lift stability.
Matching physical dimensions guarantees safety and functionality. Let us break down the critical metrics you must measure before sourcing replacements.
The inner tube diameter directly dictates the total lifting capacity. A larger bore creates significantly more surface area for pressurized fluid to push against. A 9,000 lb standard lift operates at completely different hydraulic pressures than a 15,000 lb commercial lift. Matching the exact bore size ensures your pump delivers adequate upward force without overworking its internal motor.
Stroke length measures the exact travel distance of the extending piston rod. Retracted length measures the closed unit from pin-center to pin-center. Buyers often ignore the retracted "dead space" when shopping. This causes major structural installation issues. Always measure both parameters fully closed and fully extended using a rigid tape measure.
Side-load stresses happen frequently when vehicles possess unequal weight distribution. A robust rod thickness actively prevents buckling under these lateral forces. Thicker rods powerfully resist bending. They keep the carriage stable inside the steel guide columns.
Seal material strictly dictates component longevity. Standard polyurethane seals handle normal commercial workshop duties exceptionally well. However, some warehouse environments experience extreme seasonal temperature fluctuations. In these rough cases, you might require specialized high-temp PTFE seals. They resist thermal degradation and maintain fluid pressure much better.
Tip: When calculating required lift capacity, always factor in a 20% safety margin above your heaviest anticipated vehicle weight to prevent premature seal wear and fluid bypass.
Specification | Measurement Area | Impact on Performance |
|---|---|---|
Bore Diameter | Inner cylinder tube width | Determines maximum lifting capacity based on PSI. |
Stroke Length | Total rod travel distance | Sets the maximum vehicle lifting height. |
Retracted Length | Pin-to-pin closed distance | Ensures physical fit within the lift carriage. |
Rod Diameter | Outer width of the moving rod | Prevents buckling during unequal weight distribution. |
When replacing failing components, you face a major strategic choice. Do you purchase factory OEM parts or aftermarket units? Let us thoroughly analyze the real-world outcomes.
Original Equipment Manufacturer (OEM) parts ship directly from the lift brand. They guarantee exact fitment and highly predictable long-term reliability. Third-party aftermarket replacements often consolidate designs. They attempt to fit multiple brands simultaneously. Premium aftermarket options perform flawlessly. However, low-tier generic units struggle to maintain identical internal friction between paired sides.
Aftermarket alternatives often present a highly appealing upfront price. They cost much less than OEM parts initially. Yet, you must deeply consider hidden functional costs. Cheap replacements frequently require rapid seal overhauls. They also carry severe workplace safety liabilities. A blown seal on a cheap unit easily leads to dropped vehicles and massive shop insurance claims.
How do you reliably spot a trustworthy aftermarket Hydraulic Cylinder? Look closely at their stated manufacturing processes. Trustworthy suppliers utilize skived and roller-burnished tubing. This specialized technique creates a perfect mirror-like internal finish. It significantly reduces destructive seal friction. Additionally, demand induction-hardened chrome-plated rods. These hardened exterior surfaces resist scratching and powerfully prevent rust buildup.
Different lifting environments demand different selection logic. Use this practical framework to narrow down your immediate options safely.
Commercial auto shops must always prioritize heavy-duty cycle times. Look for standardized seal availability to ensure lightning-fast repairs. Local warranty support proves vital for strictly limiting shop downtime. Conversely, residential or enthusiast garages prioritize physical footprint. They often need lower-clearance compatibility. Cost-efficiency matters slightly more for lower frequency enthusiast use.
Use this strict checklist before finalizing any purchase order:
Measure the exact pin hole size on the top and bottom mounts using digital calipers.
Identify the precise mounting style (clevis, cross-tube, or trunnion).
Confirm the port sizing and port thread location to ensure immediate hose compatibility.
Verify the maximum PSI rating perfectly matches your current hydraulic power unit output.
Never ignore established industry safety standards. Source parts complying with strict lifting protocols. The Automotive Lift Institute (ALI) provides rigorous physical testing standards. Verified equipment protects your skilled technicians and valuable customer vehicles from entirely preventable accidents.
Tip: Request the manufacturer’s pressure test reports; reputable B2B suppliers will provide documentation proving the cylinder was factory-tested at 1.5 times its rated working pressure.
Selecting the correct part only solves half the problem. Proper initial installation and diligent upkeep ensure lasting functionality.
You must meticulously bleed air from a newly installed twin cylinder system. Trapped ambient air compresses drastically under load. This causes a highly dangerous "spongy" lifting effect. It also creates terrifying sudden drops when carriages lower. You must cycle the lift unloaded multiple times while opening the bleeder valves very slowly.
Dirty hydraulic fluid destroys expensive internal seals rapidly. Microscopic metal shavings and shop debris aggressively score the internal bore. Advise your maintenance team to implement strict micron-level filtration. Most experts recommend 10-micron filters. Replace reservoir fluid at the manufacturer's strictly recommended intervals. A pristine fluid reservoir guarantees smooth, reliable seal operation.
Internal fluid bypass causes a heavy carriage to drift down under load slowly. The pressurized fluid slips silently past the damaged internal piston seal. External weeping shows highly visible fluid leaking around the top rod wiper seal. External weeping usually means you can just repack a standard seal kit. Internal bypass combined with a deeply scored bore usually dictates immediately replacing the entire unit.
Evaluating a stereo garage cylinder requires moving far past basic load ratings. You must actively scrutinize exact bore matching, premium seal quality, and the specific mechanical configuration. Proper engineering analysis physically protects your technicians and prevents disastrous equipment failures.
Always measure retracted length and stroke distance accurately before ordering new parts.
Insist on perfectly matched operational pairs to avoid dangerous asynchronous lifting.
Prioritize premium seal kits and induction-hardened rods over slight upfront savings.
Maintain absolute fluid cleanliness to dramatically extend the operational lifespan of your system.
Before issuing your next purchase order, grab a tape measure and calipers. Record your existing unit's precise retracted length, stroke, and pin hole sizes. We strongly encourage buyers to consult directly with a certified hydraulic specialist to verify these findings.
A: Replacing only one side introduces severe risks of uneven lifting. A new unit possesses much tighter seals and entirely different internal friction coefficients than the older unit. This causes one carriage to rise notably faster than the other. The resulting dangerous tilt can easily cause vehicles to slip off the lifting pads.
A: A realistic timeline depends strictly on usage cycles. Commercial auto shops lifting heavy vehicles daily should plan to replace seals every 3 to 5 years. Residential enthusiast garages might see seals last 7 to 10 years. Always monitor for external fluid weeping and slow drifting as your primary replacement indicators.
A: No. A larger cylinder alone cannot safely increase your lift capacity. The overall capacity relies strictly on the weakest structural link. This often involves the main steel columns, equalization cables, carriage locks, or the pump itself. Upgrading only the lifting ram puts dangerous stress on these under-specced structural components.
A: Gradual drifting usually points to two main culprits. First, high-pressure fluid might be bypassing a severely damaged internal piston seal. Second, a directional check valve inside the main hydraulic power unit could be failing. Both issues actively allow fluid to escape the pressure chamber, causing the carriage to slowly lower.
