Scissors lifting platforms are indispensable tools in modern industries — from manufacturing plants and construction sites to warehouses and maintenance facilities. Their ability to lift heavy loads vertically with precision and stability makes them ideal for accessing elevated areas safely and efficiently. At the heart of this smooth operation lies the Hydraulic Scissorlift Hydraulic Power Unit, the vital system that drives the platform’s lifting and lowering functions.
A scissors lifting platform operates through a crisscross or "X" pattern of supports that extend and retract, raising and lowering a working platform vertically. The mechanical scissor structure is powered by hydraulic energy, making it both powerful and stable under heavy loads.
Scissor lifts are widely used in:
Manufacturing and assembly lines – for positioning components and equipment.
Warehousing and logistics – for stacking, sorting, and maintenance operations.
Construction and building maintenance – for façade cleaning, painting, and repairs.
Automotive workshops – for vehicle inspection and repairs.
Theater and event setups – for stage and lighting adjustments.
These platforms are available in various designs: stationary lifts for material handling, mobile lifts for indoor/outdoor maintenance, and vehicle-mounted lifts for field operations. Regardless of the type, the efficiency of the lifting process depends on the quality and performance of the hydraulic power unit driving it.

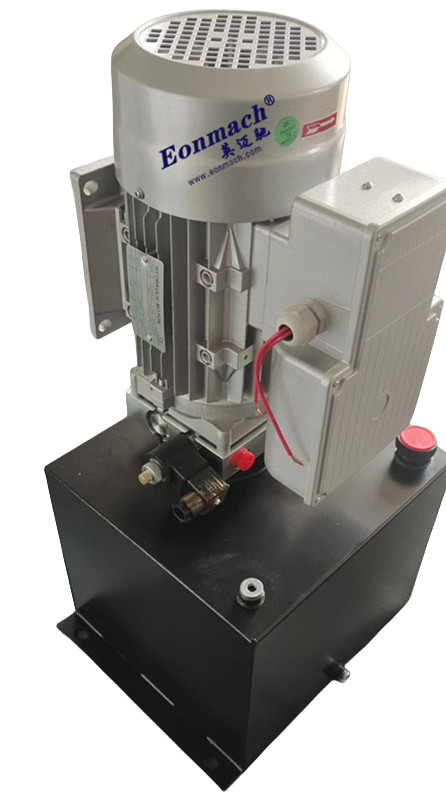

The Hydraulic Scissorlift Hydraulic Power Unit (HPU) is a self-contained system that provides pressurized fluid to power the hydraulic cylinders of the lift. It converts electrical or mechanical energy into hydraulic energy, enabling the precise movement of the lifting mechanism.
A typical HPU consists of:
Hydraulic Pump – Generates flow and pressure to move the fluid through the system.
Electric Motor – Powers the pump; available in AC or DC configurations depending on application.
Hydraulic Oil Reservoir – Stores and circulates hydraulic fluid for consistent operation.
Control Valves – Regulate the direction, pressure, and flow rate of hydraulic oil.
Filter System – Ensures oil cleanliness to prevent contamination-related wear.
Pressure Gauge and Relief Valves – Maintain system safety and prevent overloads.
Together, these components create a closed-loop system that provides reliable motion control for lifting, holding, and lowering loads smoothly.
The operating principle of a hydraulic scissorlift is relatively straightforward but highly effective. When the control switch is activated:
The electric motor powers the hydraulic pump.
The pump delivers pressurized hydraulic fluid into the lift cylinders.
The fluid pressure forces the pistons to extend, pushing the scissor arms apart and raising the platform.
To lower the lift, a solenoid valve opens, allowing fluid to return to the reservoir under controlled pressure, ensuring smooth descent.
Because hydraulic power provides high torque and precision at low speeds, the system can lift heavy loads safely and maintain stability even when the platform is fully extended.
This smooth and controlled operation is one reason why hydraulic scissor lifts are preferred over mechanical or pneumatic alternatives.
Hydraulic systems can deliver tremendous force using compact components. A small hydraulic power unit can lift heavy loads that would require much larger electric or mechanical systems.
With hydraulic flow control valves, the operator can adjust lifting and lowering speeds precisely, ensuring safe operation during material handling or personnel lifting tasks.
Hydraulic components are designed to operate under extreme conditions, including temperature variations and continuous duty cycles. Properly maintained HPUs can last for years with minimal downtime.
Modern hydraulic systems incorporate load-sensing pumps and energy recovery designs, minimizing energy consumption and heat generation.
The Hydraulic Scissorlift Hydraulic Power Unit can be integrated easily into the lift’s chassis, optimizing space without compromising accessibility for maintenance.
Selecting the right hydraulic power unit is crucial for safety and performance. Several parameters must be considered:
The hydraulic pump must generate enough pressure to lift the maximum rated load. Engineers typically design for a safety margin to handle overload conditions without system stress.
Flow rate determines the lifting speed. A higher flow rate means faster lift operation, but it must be balanced with safety and precision requirements.
Scissor lifts can be powered by AC (for stationary or industrial applications) or DC (for mobile battery-operated lifts). The HPU must match the available power source and operating voltage.
Hydraulic oil expands and changes viscosity with temperature. Integrating an oil cooler or heater ensures consistent performance across various environmental conditions.
For indoor or sensitive environments, noise levels are critical. Using precision-machined gear pumps, vibration isolators, and acoustic enclosures can significantly reduce operational noise.
Even the most efficient Hydraulic Scissorlift Hydraulic Power Unit requires regular maintenance to ensure safe and reliable performance. Neglecting small issues can lead to system failure, fluid leaks, or reduced lifting capacity.
Perform visual inspections for:
Leaks at fittings or hoses.
Unusual noise or vibration from the pump or motor.
Fluid discoloration or foaming (indicating contamination).
Oil cleanliness is the single most important factor affecting hydraulic system lifespan.
Replace hydraulic oil according to the manufacturer’s schedule.
Use filters rated for fine particulate removal (typically 10 microns or finer).
Ensure fluid compatibility with seals and components.
Over-pressurization can cause seal failures or cylinder damage. Check relief valve settings periodically and recalibrate pressure sensors when needed.
Inspect motor terminals, wiring, and solenoid connections. Loose or corroded connections can lead to erratic performance or control loss.
Keep the power unit and surrounding area clean. Dust or debris can contaminate oil during maintenance, reducing reliability.
Follow a proactive servicing schedule that includes pump inspection, valve testing, and reservoir cleaning. Early detection of wear saves costly repairs.
Even with proper care, issues can arise. Recognizing symptoms early helps prevent downtime.
Symptom | Possible Cause | Solution |
Slow lifting speed | Low oil level or clogged filter | Check and refill fluid, replace filter |
Excessive noise | Air in system or worn pump | Bleed air, inspect and replace pump |
Platform drift when stopped | Leaking valve or seal | Inspect and replace defective valve |
Overheating oil | Excessive load or poor cooling | Reduce load, install oil cooler |
Jerky motion | Contaminated oil or sticky valve | Flush system, clean components |
A preventive maintenance approach ensures such problems are minimized and system performance remains consistent.
The Hydraulic Scissorlift Hydraulic Power Unit is the driving force behind every reliable scissors lifting platform. Its performance determines how efficiently, safely, and smoothly a lift operates. From industrial factories to construction sites, well-designed and properly maintained hydraulic power units ensure long-term reliability and productivity.
Selecting the right HPU — one that matches the lift’s capacity, environment, and usage frequency — is essential to maximizing operational efficiency and minimizing downtime. With ongoing innovations in energy efficiency, control automation, and sustainability, hydraulic systems continue to evolve toward smarter, cleaner, and more powerful solutions.
