Keeping a busy automotive repair shop running smoothly relies heavily on dependable lifting equipment. Every minute a service bay sits empty represents lost revenue and frustrated customers. Replacing or upgrading a Car Lift Cylinder requires precise specification matching to prevent frustrating operational downtime. If you choose the wrong replacement part, you risk premature equipment failure and introduce critical safety hazards into your workspace.
This guide breaks down the exact technical parameters, measurement techniques, and safety considerations you need. We explore how to properly evaluate your existing setup. You will learn how to confidently select the correct Hydraulic Cylinder for your specific automotive lift system. From calculating pressure ratings to choosing the right seal materials, this comprehensive overview ensures your next purchase perfectly aligns with your shop’s operational demands.
Accurate sizing requires measuring the exact bore, rod diameter, and pin-to-pin stroke length.
Adhering to the "80% rule" for load capacity prevents system overloads and extends cylinder lifespan.
Welded cylinders generally offer the rigid durability required for commercial automotive lifts compared to tie-rod designs.
Seal material must be matched to your specific hydraulic fluid type to prevent rapid degradation.
Load-holding mechanisms and proper mounting styles are non-negotiable for shop safety and compliance.
Getting your measurements right forms the foundation of any successful equipment replacement. Even a fraction of an inch of error can cause critical mechanical binding or prevent proper installation. You must understand four primary dimensions before contacting a supplier.
The inner barrel diameter, known as the bore, directly determines the lifting force your system generates at a given pressure. A larger bore produces more push force. Meanwhile, the rod outer diameter (OD) dictates structural stability. When heavy vehicle loads shift, a thicker rod resists bending and buckling forces.
Stroke length represents the actual travel distance of the piston. You calculate this by measuring from pin center to pin center when fully extended, and subtracting the pin-to-pin measurement when fully retracted. Incorrect stroke length leads to inadequate vehicle clearance or causes the lift carriage to slam into physical end stops.
Port sizing ensures leak-free integration into your existing power unit. You must identify the correct port threading to match your hydraulic hoses. Common standards include NPT (National Pipe Thread) and ORB (O-Ring Boss). Mixing these threads guarantees high-pressure fluid leaks.
Best Practice for Measuring:
Clean the old component thoroughly to remove grease and debris.
Use a digital caliper to measure the rod OD and bore ID. Do not rely on standard tape measures for these precise figures.
Measure the closed height from the center of the bottom mounting pin to the center of the top mounting pin.
Extend the rod entirely and measure pin-to-pin again to find your stroke.
Use a specialized thread pitch gauge to confirm port threading types rather than relying solely on worn, faded manufacturer labels.
Your lift must safely handle the specific weight classes of the vehicles you service. You determine this capacity by understanding the relationship between operating pressure (PSI) and the internal surface area of your Hydraulic Cylinder.
Standard passenger vehicles typically require lift systems rated between 6,000 and 9,000 lbs. If your shop services commercial vans or heavy-duty pickup trucks, you need equipment rated for 12,000 lbs or more. You must calculate the required force accurately. If a pump delivers 2,500 PSI, the cylinder bore must provide enough surface area to multiply that pressure into sufficient lifting force.
However, static weight calculations rarely tell the whole story. You must account for dynamic pressure spikes. When a mechanic drops a heavy transmission, or a vehicle settles unevenly on the swing arms, hydraulic surges occur. If your system runs smoothly at 2,500 PSI under normal conditions, the internal components should tolerate transient spikes much higher than that baseline.
Engineers consistently recommend the "80% rule" for fluid power applications. You should operate your equipment at no more than 80% of its maximum rated load capacity and stroke length. Limiting your maximum push force minimizes metal fatigue and drastically extends the working lifespan of the seals and internal walls.
Never undersize a car lift cylinder to save upfront procurement costs. Exceeding the rated capacity drastically increases the risk of catastrophic rod buckling. This danger amplifies significantly when the lift operates at full extension.
Vehicle Weight Class | Example Vehicle Types | Recommended Minimum Lift Capacity |
|---|---|---|
Light Duty | Sedans, Compact SUVs | 6,000 - 9,000 lbs |
Medium Duty | Half-ton Trucks, Large SUVs | 10,000 - 12,000 lbs |
Heavy Duty | Commercial Vans, 1-ton Trucks | 14,000+ lbs |

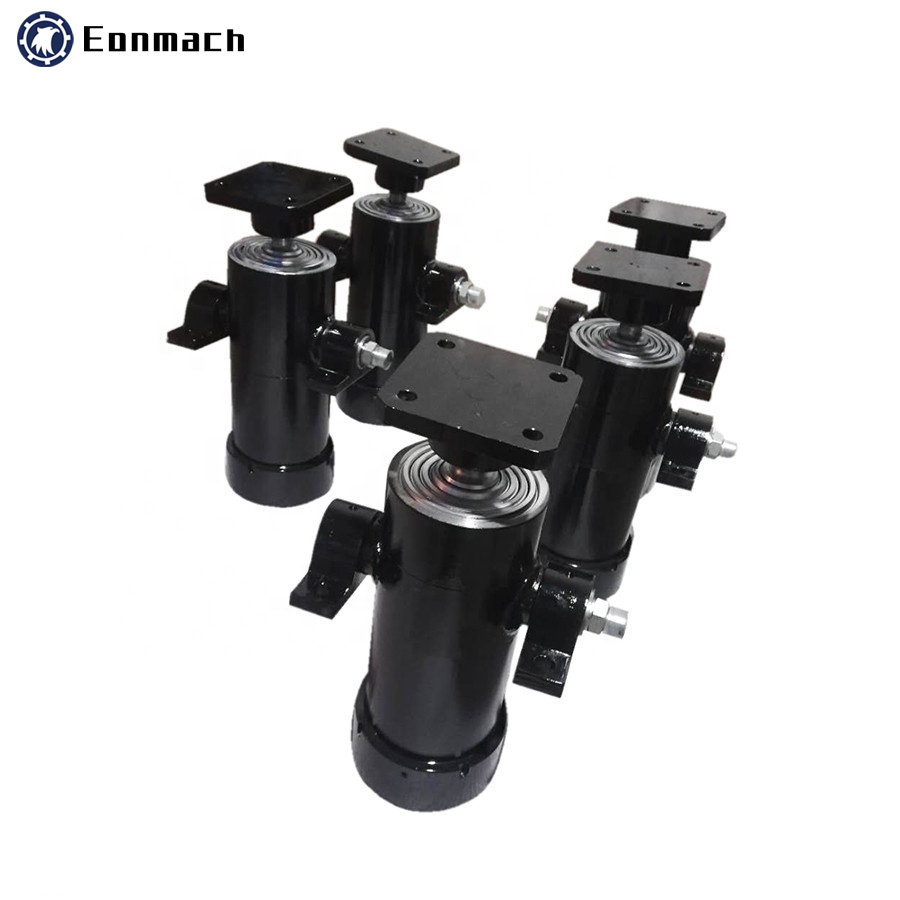

A heavy-duty welded replacement cylinder designed for modern automotive lift systems.
Automotive lifts operate in demanding, space-constrained environments. Because of these unique physical requirements, the construction style of your replacement part matters immensely.
Welded cylinders serve as the undisputed industry standard for two-post and four-post automotive lifts. Manufacturers weld the end caps directly to the barrel. This creates a highly compact, streamlined profile. Welded designs offer superior structural rigidity. They handle higher operating pressures effortlessly and resist the harsh, high-cycle abuse typical of commercial repair bays.
Tie-rod cylinders present a different approach. They rely on four high-strength threaded bolts (tie rods) running along the outside of the barrel to hold the end caps in place. While mechanics appreciate them for their easy disassembly and maintenance, they fall short in automotive lift applications. The long tie rods remain susceptible to stretching under extreme high-pressure spikes. This stretching can lead to fluid bypassing the seals. Furthermore, their bulky exterior profile makes them difficult to fit inside enclosed lift columns.
Space constraints ultimately dictate your choices. The physical footprint of a lift carriage requires a narrow housing. The sleek profile of a welded Car Lift Cylinder slides easily into the vertical posts of a lift, ensuring cables, pulleys, and mechanical locks operate without interference.
Internal seals keep fluid power trapped where it belongs. If you select the wrong seal material, it will degrade rapidly, leading to dangerous fluid blow-by and a lift that slowly sinks under load.
You must match your seal material to your specific hydraulic fluid type. Using mismatched materials causes seals to swell, crack, or dissolve completely.
Buna-N (Nitrile): This serves as the industry standard. It provides excellent resistance to conventional petroleum-based hydraulic fluids. Use this for standard indoor automotive applications.
EPDM: Required if your system utilizes specialized fire-resistant synthetic fluids, like phosphate esters.
Viton (Fluorocarbon): Choose Viton for extreme temperature environments or when using highly specialized synthetic blends. They resist degradation far better under intense heat.
External contamination poses an equal threat. Automotive shops remain inherently dirty environments. Brake dust, metal shavings, aggressive degreasers, and ambient moisture constantly surround your lift. Heavy-duty wiper seals act as the first line of defense. They scrape the rod clean as it retracts, preventing gritty particles from entering the housing and scoring the polished steel rod.
Corrosion protection also plays a vital role. Lifts located in wash-bays or humid geographic regions face accelerated rust. Always specify hard-chrome plated rods for any replacement. The hardened chrome resists pitting and flaking. For extreme moisture exposure, consider specialized anti-corrosion epoxy coatings for the external barrel.
How you attach the actuator to the lift frame determines how forces transfer through the metal. Utilizing the wrong mounting style introduces destructive side-loading, which bends rods and ruins internal bearing surfaces.
Common automotive lift mounting configurations include rigid and flexible options. A rigid flange mount bolts firmly to the lift frame, pushing strictly in a straight line. Conversely, trunnion mounts or clevis mounts utilize pins. These pinned mounts allow for slight angular movement as the carriage travels up the post. This flexibility accommodates minor frame deflections under heavy loads, preventing the rod from absorbing lateral stress.
Safety remains the absolute highest priority when holding a multi-ton vehicle in the air. Load-holding safety mechanisms protect technicians working underneath.
Velocity fuses, also known as safety check valves, represent a critical requirement. You must ensure these valves are built into or plumbed directly to the cylinder port. If a high-pressure rubber hose suddenly bursts, the velocity fuse detects the rapid fluid escape and instantly locks the fluid inside the barrel. This prevents the vehicle from entering a rapid, catastrophic free-fall.
Furthermore, fluid power works in tandem with mechanical systems. Your replacement unit must accurately align with the lift's automatic mechanical safety locks. The actuator pushes the carriage slightly past the lock, allowing it to settle safely onto the steel resting blocks.
Always ensure your setup aligns with North American ALI (Automotive Lift Institute) safety principles. Never bypass load-holding fluid valves or modify mounting brackets to force an improper fit.
Many shop owners attempt to cut corners during maintenance, leading to expensive secondary failures. Understanding common mistakes helps you avoid repeating them.
Ignoring side-load risks stands out as the most frequent error. Hydraulic equipment generates massive linear force, but it cannot tolerate sideways pressure. Uneven vehicle weight distribution, worn carriage slide blocks, or improper lift post alignment creates lateral forces. These lateral forces push the rod against the gland nut, quickly ruining the seals and eventually bending the rod itself.
Overlooking stroke cushions also causes significant damage. Cushions act as internal shock absorbers. If a replacement lacks cushioning at the end of its stroke, the internal piston slams violently into the end caps at full extension or retraction. These jarring stops send shockwaves through the entire lift structure, fatiguing the welds and damaging pump valves.
Assuming a universal fit almost always results in a wasted purchase. Never buy generic, off-the-shelf components without verifying exact dimensions. Every lift manufacturer utilizes proprietary pin diameters, specific port angles, and tight mount clearances. A component that looks identical in a catalog might have a pin hole that is 1/16th of an inch too small, rendering it completely useless for your specific application.
Selecting the right replacement component safeguards your technicians and protects your shop's profitability. You must build your procurement decision framework around precision and safety. Always measure bore, rod, and stroke dimensions with accurate digital tools. Over-spec your pressure ratings slightly to absorb dynamic hydraulic surges safely. Prioritize heavy-duty welded construction for compact durability, and verify that your seals match your fluid type perfectly.
Before you request a quote or contact a supplier, take actionable steps in your shop today. Document your current equipment's exact pin-to-pin dimensions, verify the fluid type in your reservoir, and note the operating pressure stamped on your power unit. Armed with this accurate data, you can confidently source a direct replacement that ensures your lift operates safely for years to come.
A: Measure the distance from the center of the bottom mounting pin to the center of the top mounting pin while the rod is fully retracted. Then, extend the rod completely and measure the pin-to-pin distance again. Subtract the retracted measurement from the extended measurement to determine your exact stroke length.
A: No, you should not interchange them. Most two-post and four-post car lifts rely on single-acting designs that use fluid pressure to lift and gravity to lower. Installing a double-acting version requires entirely different power units, complex four-way directional valves, and extra return plumbing.
A: Slow downward drift under load usually indicates internal fluid bypass. The internal piston seals have likely worn out, scratched, or degraded. Fluid leaks past the piston inside the barrel, preventing it from holding pressure. Worn check valves in your pump unit can also cause this symptom.
A: In a high-volume commercial shop, a quality component typically lasts between 5 to 7 years before requiring a seal replacement. Lifespan depends heavily on maintenance habits. Keeping the fluid clean, replacing worn carriage blocks to prevent side-loading, and avoiding maximum weight overloads will significantly extend its operational life.
