How many types of hydraulic cylinders are there?
The answer depends on how they are classified.
There is no single industry-wide number because hydraulic cylinders can be grouped according to their operating method, construction, rod arrangement, number of stages, mounting style, or intended application. For example, a cylinder may simultaneously be described as double-acting, welded, and single-rod. These terms do not describe three different cylinders; they describe different characteristics of the same cylinder.
For most equipment buyers and engineers, the easiest way to understand hydraulic cylinder types is to separate them into two broad classification methods:
By operating action: single-acting and double-acting.
By construction: tie-rod, welded, telescopic, and other specialized designs.
This distinction is important because the type of hydraulic cylinder selected affects available force, movement control, installation space, maintenance requirements, stroke length, and suitability for the machine.
Table of Contents
If hydraulic cylinders are classified by operating action, there are two fundamental types: single-acting and double-acting.
If they are classified by body construction, three of the most commonly encountered types are tie-rod, welded, and telescopic cylinders. Industry references also identify ram or plunger cylinders as another construction category.
This means it is more accurate to think of hydraulic cylinders as a family of overlapping designs rather than to say that there are exactly three, five, or seven types.
The following table provides a practical overview.
Hydraulic Cylinder Type | Main Characteristic | Typical Advantage | Common Applications |
|---|---|---|---|
Single-acting | Hydraulic pressure acts in one direction | Simple hydraulic circuit | Lifting, dumping, clamping |
Double-acting | Hydraulic pressure controls extension and retraction | Controlled movement in both directions | Construction machinery, industrial equipment |
Tie-rod | End caps are retained by external tie rods | Easier disassembly and servicing | Factory equipment, presses, machinery |
Welded | Cylinder body uses a welded construction | Compact and robust design | Mobile equipment, agriculture, construction |
Telescopic | Multiple nested stages extend sequentially | Very long stroke from short retracted length | Dump trucks, trailers, lifting equipment |
Ram or plunger | Large plunger provides pushing force | Simple high-force lifting arrangement | Jacks, presses, lifting systems |
The categories can overlap. A telescopic cylinder, for example, may be single-acting or double-acting, while a welded cylinder may also be double-acting.
A single-acting hydraulic cylinder uses pressurized fluid to create force in only one direction.
In many designs, hydraulic pressure extends the rod or lifting stage, while gravity, a spring, or the weight of the machine returns it when hydraulic pressure is released. Because hydraulic pressure is not required for both directions, the circuit can be relatively simple.
A single-acting cylinder typically has one primary hydraulic connection for the working chamber.
This design is particularly useful when the machine already has a reliable external return force.
Consider a dock leveler. Hydraulic pressure can raise the platform, while the weight of the platform helps return it when the hydraulic circuit releases pressure. In this type of application, adding powered hydraulic retraction may provide little practical benefit.
EONMACH's current product range includes a Single Acting Hydraulic Cylinder for Dock Leveler, confirming that single-acting construction is part of its application-specific cylinder offering.
Single-acting designs are therefore often considered when the priorities are straightforward motion, simpler plumbing, and reliable movement in one powered direction.
A double-acting cylinder works differently because hydraulic pressure can act on both sides of the piston.
When oil enters the cap-end chamber, the rod extends. When oil is directed into the rod-side chamber, the rod retracts.
The result is powered control in both directions.
This arrangement is valuable when a machine must not depend on gravity or another external force to complete its return movement. It also gives the hydraulic system greater control over extension, retraction, positioning, and repeated operating cycles.
Double-acting cylinders are widely used in machinery where both pushing and pulling movements matter. Industry references describe them as suitable for applications requiring controlled force in both directions.
EONMACH currently lists double-acting cylinders for applications such as hydraulic scissor lifts, general lifting, and customized equipment.
An important engineering detail is that extension and retraction force are normally different in a conventional single-rod double-acting cylinder. The piston rod reduces the effective hydraulic area on the rod side, so the cylinder usually produces greater theoretical force during extension than during retraction at the same pressure.
Neither design is automatically better.
The choice depends on what the machine must do.
If the load naturally returns the cylinder and precise powered retraction is unnecessary, a single-acting cylinder may offer a simpler solution.
If the machine must actively push and pull, operate horizontally, maintain controlled movement in either direction, or complete repetitive cycles regardless of gravity, a double-acting design is usually more appropriate.
The decision should therefore begin with the required movement rather than the cylinder name.
Ask one question first:
Does the machine need hydraulic force in one direction or in both directions?
That answer can eliminate many unsuitable cylinder configurations before bore, stroke, mounting, or pressure is considered.
Tie-rod cylinders are classified according to construction rather than operating action.
In this design, threaded steel tie rods run along the outside of the cylinder and hold the end caps and barrel assembly together.
One major advantage is serviceability. Because the assembly can be disassembled, internal components such as seals can often be accessed without replacing the entire cylinder.
This construction is familiar in industrial and factory machinery, where regular maintenance access and repeatable mounting dimensions may be important. Technical references identify tie-rod construction as one of the fundamental hydraulic cylinder body styles.
However, the external tie rods also increase the overall package size and create exposed components around the cylinder barrel.
That makes the design more attractive in some stationary industrial applications than in compact mobile equipment where installation space, dirt exposure, and external impact may be greater concerns.
Imagine a hydraulic cylinder installed inside an excavator linkage, agricultural implement, lifting mechanism, or mobile machine where space is limited and the equipment is regularly exposed to dirt, shock, and outdoor conditions.
This is the kind of environment where welded cylinders are often used.
Instead of retaining the major cylinder sections with external tie rods, welded designs use a more integrated body construction. This can produce a compact package with fewer exposed structural components.
The resulting form makes welded cylinders common in mobile hydraulic equipment.

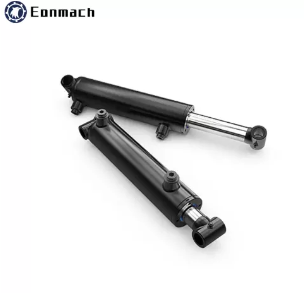

EONMACH currently lists products such as double-acting welded hydraulic cylinders, agricultural machinery cylinders, excavator cylinders, skip-loader cylinders, outrigger cylinders, and construction-machinery cylinders.
The key point is that “welded” describes the cylinder structure. A welded cylinder can still be single-acting or double-acting depending on how hydraulic pressure is applied.
Telescopic cylinders solve a very different engineering problem:
How can a machine achieve a very long stroke when there is not enough room for a conventional cylinder of similar extended length?
The solution is to use several nested tubular stages.
When hydraulic pressure is supplied, the stages extend in sequence, creating a stroke substantially longer than the cylinder's retracted package.
This makes telescopic cylinders especially useful for equipment such as dump trucks and tipping trailers. A dump body may need to rise through a large angle, but there is limited room beneath the body for a long conventional cylinder.
EONMACH's current product portfolio includes a Tipper Trailer Telescopic Hydraulic Cylinder and a Long Stroke Multi Stages Telescopic Hydraulic Cylinder for Dump Truck.
Telescopic cylinders can be single-acting or double-acting. Single-acting versions are common where gravity can retract the stages after unloading, while double-acting designs provide hydraulic control in both directions but require more complex internal construction.
A ram or plunger cylinder is designed primarily to generate pushing or lifting force.
Instead of using a conventional piston and smaller piston rod arrangement, the moving plunger itself provides the working area.
This type of design is commonly associated with jacking, lifting, pressing, and other applications where strong force in one primary direction is more important than powered return movement.
Ram cylinders are therefore usually single-acting.
Their operating concept is comparatively simple: hydraulic pressure pushes the ram outward, while the load, gravity, or another external mechanism returns it.
For buyers, the important distinction is not simply the cylinder's appearance. The key consideration is whether the application needs a conventional piston-and-rod design or a large plunger optimized primarily for pushing force.
This is where hydraulic cylinder terminology can become confusing.
A cylinder can belong to several categories at the same time.
For example, a cylinder may be:
telescopic + single-acting + multi-stage
Another may be:
welded + double-acting + single-rod
A third may be:
tie-rod + double-acting
This is why there is no universally correct answer such as “there are exactly five hydraulic cylinder types.”
Different classification systems answer different engineering questions.
“Single-acting or double-acting?” describes how hydraulic force is applied.
“Welded or tie-rod?” describes how the cylinder is constructed.
“Telescopic or single-stage?” describes how stroke is achieved.
These descriptions should be used together when developing a cylinder specification.
A conventional hydraulic cylinder normally has one piston rod extending from one side of the piston.
A double-rod cylinder has a rod extending from both sides.
Because similar rod areas can exist on both sides of the piston, a double-rod design can provide more symmetrical hydraulic areas and therefore more similar motion characteristics in both directions.
These cylinders can be useful where balanced extension and retraction behavior or mechanical connection on both ends is required.
They are less common than standard single-rod cylinders in many mobile machines, but they demonstrate why hydraulic cylinder classification extends beyond only single-acting, double-acting, welded, or telescopic designs.
Special application requirements can lead to many additional configurations.
Manufacturers also categorize hydraulic cylinders according to the machines in which they are used.
For example, EONMACH's current cylinder category includes products for car lifts, medical beds, agricultural machinery, compression garbage trucks, hook-lift garbage trucks, excavators, outriggers, chair lifts, dock levelers, skip loaders, scissor lifts, and other equipment.
These names are useful commercially because they tell a buyer what the cylinder is designed to do.
However, “agricultural machinery cylinder” and “medical bed cylinder” are application classifications rather than fundamental hydraulic operating principles.
Both may still use a single-acting or double-acting mechanism.
Similarly, an application-specific cylinder may use welded construction, a single rod, specialized mounting, a control valve, or dimensions developed specifically for that equipment.
Therefore, when comparing cylinder types, it helps to separate mechanical design from end-use application.
Selecting the right cylinder becomes easier when the process is approached from the machine backward.
Begin with the required motion. Decide whether the cylinder must provide powered movement in one direction or both.
Then consider the installation envelope. A conventional cylinder may work if sufficient length is available, while a telescopic design becomes attractive when a long stroke must fit into a short retracted space.
Next consider the equipment environment. Mobile construction and agricultural machinery may favor compact, robust cylinder construction, while industrial machinery may place greater emphasis on standardized dimensions and serviceability.
Force and pressure must then be calculated. Bore size influences available hydraulic force, while rod diameter affects retract force, structural strength, and buckling resistance.
Finally, confirm stroke, mounting, speed, duty cycle, hydraulic fluid, working temperature, port arrangement, seals, cushioning, and any required control valve.
In other words, selecting a hydraulic cylinder should not begin with:
“Which cylinder type is the strongest?”
It should begin with:
“What movement, force, stroke, space, and control does this machine require?”
EONMACH manufactures hydraulic cylinders for industrial and mobile hydraulic systems, with its current category page showing applications across agriculture machinery, engineering machinery, truck lift systems, dock levelers, excavators, lifting equipment, medical equipment, waste-handling vehicles, and related machinery.
Its product range demonstrates several of the classifications explained above. The current catalog includes single-acting cylinders, double-acting cylinders, welded cylinders, telescopic cylinders, multi-stage cylinders, and customized hydraulic cylinders.
EONMACH also states that customized cylinders can be produced based on customer drawings, specifications, or application requirements.
That matters because many real machines do not fit neatly into one generic cylinder specification.
A cylinder may need a particular:
bore and rod combination,
stroke,
mounting arrangement,
port position,
seal configuration,
operating pressure,
or application-specific geometry.
The final design should therefore be matched to the actual equipment rather than chosen only by cylinder category.
One mistake is treating single-acting, double-acting, welded, and telescopic as four mutually exclusive alternatives.
They are not.
A telescopic cylinder can be single-acting. A welded cylinder can be double-acting.
Another mistake is selecting a cylinder according to application name alone. Two excavators can require very different bore sizes, strokes, rod diameters, mounting dimensions, and working pressures.
A third mistake is assuming that a larger cylinder is always better. Increasing bore diameter increases potential force at a given pressure, but it also increases oil volume and can reduce speed if available flow remains unchanged.
Finally, buyers sometimes focus on force while overlooking mounting and side load. Hydraulic cylinders are designed primarily to transmit axial force. Poor alignment can shorten rod, bearing, and seal life even when the cylinder has more than enough theoretical force.
For practical selection, memorizing a fixed number is less important than understanding how the classifications work.
An engineer does not normally choose between “type three” and “type five.”
Instead, the specification develops step by step.
The machine may require a double-acting cylinder because force is needed in both directions. It may require welded construction because installation space is limited. It may need a long stroke, a specific mounting style, and a customized rod diameter because of the machine geometry.
Each choice adds another layer to the final cylinder design.
That is why the most useful answer to “How many types of hydraulic cylinder are there?” is:
There is no single fixed number. Hydraulic cylinders are classified in several ways, with single-acting and double-acting being the two basic operating types, and tie-rod, welded, telescopic, and ram designs representing common construction categories.
The two main types by operating method are single-acting and double-acting cylinders. By construction, common types include tie-rod, welded, telescopic, and ram or plunger cylinders.
Tie-rod, welded, and telescopic cylinders are three commonly discussed construction types. EONMACH also has an existing technical article specifically focused on these three categories.
A single-acting cylinder uses hydraulic pressure for movement in one direction and relies on another force for return. A double-acting cylinder uses hydraulic pressure for both extension and retraction.
It can be either. Single-acting telescopic cylinders are common in tipping applications where gravity assists retraction, while double-acting telescopic designs use hydraulic pressure for both directions.
Telescopic cylinders are commonly used where a dump body needs a long lifting stroke but only limited installation length is available. The exact design depends on vehicle geometry, load, pressure, and required stroke.
There is no single fixed number of hydraulic cylinder types because cylinders can be classified according to more than one engineering characteristic.
At the most basic level, hydraulic cylinders can be divided into single-acting and double-acting designs according to how hydraulic pressure creates movement.
When classified by construction, common designs include tie-rod, welded, telescopic, and ram or plunger cylinders.
A particular cylinder may belong to several classifications at the same time. For example, a dump-truck cylinder may be both telescopic and single-acting, while a construction-equipment cylinder may be welded and double-acting.
For buyers, the most important task is therefore not counting cylinder types. It is identifying the design that matches the machine's force, stroke, movement, pressure, space, mounting, speed, and operating environment.
