Ever wonder how heavy machines move with such precision? Hydraulic cylinders power much of this motion. Controlling these cylinders is key to safe, efficient operation.
Hydraulic cylinder control manages speed, force, direction, and position. Poor control risks damage and downtime.
In this post, you’ll learn why control matters and how to optimize hydraulic cylinder performance.

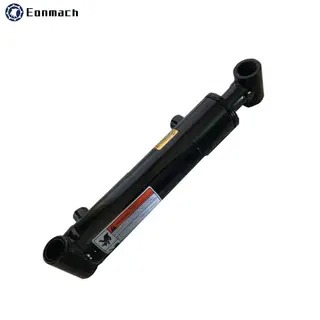

Hydraulic cylinders act as linear actuators, converting fluid power into straight-line motion. They rely on fluid pressure to push a piston inside a cylindrical barrel. When pressurized hydraulic fluid enters one side of the piston, it forces the piston—and the connected rod—to move. The fluid on the opposite side flows back to the reservoir, completing the cycle. This movement translates fluid energy into mechanical force, powering everything from heavy machinery to industrial equipment.
Fluid pressure is the driving force behind piston motion. The hydraulic pump sends pressurized fluid into the cylinder, applying force on the piston’s surface area. The greater the pressure or piston area, the stronger the force generated. By controlling fluid pressure and flow direction, one can precisely manage the piston’s speed, force, and direction. The fluid’s incompressibility ensures smooth and consistent movement, essential for accurate control.
Component | Function |
|---|---|
Cylinder barrel | Houses the piston and contains pressurized fluid |
Piston | Separates pressure zones, transmits force to the rod |
Piston rod | Connects piston to the external load or machinery part |
Cylinder head/cap | Closes cylinder ends, supports seals and rod bearings |
Seals | Prevent fluid leaks, keep contaminants out |
Mounts | Attach cylinder securely to machinery |
Each part plays a vital role. The barrel withstands high pressure, while the piston moves inside it without leakage. The rod transfers motion outside the cylinder. Seals prevent fluid escape, which could cause system failure or inefficiency.
Proper sealing is critical. Worn or damaged seals cause leaks, reducing efficiency and risking contamination. Regular inspection and maintenance extend cylinder life. Lubrication helps seals function smoothly, preventing wear. Also, keeping hydraulic fluid clean avoids abrasive particles that damage seals and internal surfaces. Maintenance routines should include checking for leaks, seal condition, and fluid quality to ensure reliable operation.
Hydraulic cylinders come in several types, each with unique control needs and applications. Understanding these differences helps select the right cylinder and control method for your machinery.
Single-acting cylinders use hydraulic pressure to move the piston in one direction only. The piston returns by spring force, gravity, or an external load. Because fluid acts on just one side, controlling speed and force is simpler but less precise. They are cost-effective and ideal for tasks like lifting, tilting, or pushing light loads. Examples include agricultural machinery, small presses, and safety devices where motion occurs in a single direction.
Control considerations:
Simple valve setups control fluid flow for extension.
Return speed depends on mechanical means, not fluid control.
Limited precision in speed and position control.
Double-acting cylinders receive fluid pressure on both sides of the piston, enabling motion in both directions. This allows precise control of extension and retraction speeds and forces. However, controlling these cylinders requires more complex valve arrangements and sometimes sensors to maintain performance under varying loads. They are common in industrial presses, mobile equipment, and material handling.
Control considerations:
Requires directional control valves to switch flow between piston sides.
Flow and pressure control needed for smooth bidirectional movement.
Sensors may monitor position or force for automation.
Telescopic cylinders have multiple nested pistons that extend sequentially, offering long strokes from compact sizes. They are widely used in cranes, dump trucks, and machinery with space constraints. Controlling these cylinders demands careful management of flow and pressure to avoid uneven extension or piston binding.
Control considerations:
Flow must be balanced to extend all stages smoothly.
Pressure limits prevent damage from stage binding or shock loads.
Synchronization mechanisms may be integrated.
These cylinders use fluid from the rod side redirected to the cap side to increase extension speed without extra pump power. This speeds up motion while maintaining force but introduces higher pressure on some cylinder parts. They are common in construction and industrial equipment requiring a balance of speed and force.
Control considerations:
Relief valves protect against pressure spikes.
Flow control manages speed without sacrificing force.
System design must handle increased pressure zones safely.
Cylinder Type | Operation | Control Considerations | Common Applications |
|---|---|---|---|
Single-Acting Cylinders | One-direction motion; return by spring or gravity | Simple control; limited precision | Agricultural machinery, small presses, safety devices |
Double-Acting Cylinders | Bidirectional fluid pressure | Complex valve control; sensor integration possible | Industrial presses, mobile machinery, material handling |
Telescopic Cylinders | Multiple nested pistons extend | Precise flow and pressure control to avoid binding | Cranes, dump trucks, space-limited machinery |
Differential/Regenerative Cylinders | Rod-side fluid redirected to cap side | Manage higher pressures; relief valves essential | Construction equipment, long-stroke industrial presses |
Understanding cylinder types and their control needs helps improve machinery performance, safety, and efficiency.
Controlling the speed of a hydraulic cylinder is crucial for smooth, safe, and efficient operation. Different methods exist to regulate how fast the piston moves, depending on the application and precision needed.
Metered flow control works by regulating the amount of hydraulic fluid entering the cylinder. By limiting the fluid flow, it directly controls the piston speed. During retraction, a check valve allows fluid to exit freely, preventing pressure buildup. This method provides smooth, predictable motion and suits many industrial uses. Adjusting the flow valve lets you fine-tune speed without affecting system pressure significantly.
Non-metered flow control restricts fluid leaving the cylinder rather than entering it. It’s energy-efficient during slow, gravity-driven movements because the fluid doesn’t need pumping against high pressure. However, improper use can cause pressure spikes on the rod side, risking leaks or damage. This method fits low-speed tasks or controlled load descents but requires careful application.
Needle valves offer fine control over hydraulic flow in both directions. They are compact, affordable, and ideal for low-speed, precise motion control. Needle valves often include check valves to prevent reverse flow, protecting the system. Applications include small presses, testing equipment, and wherever gradual, controlled movement is essential.
These valves split incoming flow between two outputs, ensuring the main cylinder gets fluid first. A built-in relief valve protects the system from overpressure. They excel in multi-actuator setups, maintaining stable operation. However, unused flow may dissipate as heat, so sizing and adjustment matter to minimize energy loss.
Proportional directional valves use electronic signals to adjust spool position, controlling flow precisely. They enable smooth acceleration and deceleration, adapting automatically to load changes. These valves suit automation, robotics, and industrial machinery needing exact speed and position control. Integration with sensors and feedback loops boosts efficiency, reduces energy waste, and extends equipment life.
Tip: Use proportional directional valves for precise, automated speed control in complex hydraulic systems to improve efficiency and reduce wear.
The force a hydraulic cylinder produces depends mainly on two factors: the piston area and the fluid pressure applied. The relationship is simple but powerful:
Force = Pressure × Piston Area.
This means increasing pressure or piston size boosts force output. However, understanding how the cylinder type affects force is crucial.
Single-Rod Cylinders:
These have a piston rod on one side only. When extending, the full piston area receives fluid pressure, generating maximum force. During retraction, the rod occupies space on the piston side, reducing the effective area. So, the retraction force is less than the extension force. This difference matters when precise force balance is needed.
Double-Rod Cylinders:
These have rods on both sides, making piston areas equal on extension and retraction sides. This design provides nearly equal force in both directions. It’s ideal for applications requiring balanced push and pull strength.
Pressure relief valves act as safety devices. They limit maximum system pressure to prevent cylinder damage from overloads. If pressure exceeds a set limit, the valve opens, diverting fluid back to the reservoir. This protects the cylinder, pump, and other components from costly failure.
Load-sensing valves automatically adjust flow and pressure based on the load demand. They help maintain efficient force control by supplying just enough pressure to move the load. This reduces energy waste and improves system responsiveness. Load-sensing systems are common in mobile machinery and industrial equipment where load conditions vary frequently.
Regenerative circuits recycle fluid from the rod side back to the cap side during extension. This increases piston speed without reducing available force or requiring extra pump power. It’s useful in large-stroke cylinders where fast extension improves productivity. However, the system must be designed carefully to avoid pressure spikes and ensure smooth operation.
Precise position control is vital in many industrial applications. It ensures the piston stops exactly where needed. This accuracy is crucial for automation, assembly lines, robotics, and any task requiring repeatable, exact movements.
In manufacturing, even small position errors can cause defects or slow production. Precise control improves product quality and reduces waste. It also enhances safety by preventing collisions or unintended motions. For example, robotic arms rely on accurate cylinder positioning to handle delicate parts without damage.
Many hydraulic cylinders use magnets embedded in the piston. Sensors placed outside the barrel detect the piston’s location by sensing magnetic fields. Hall Effect sensors are common for this purpose because they are reliable, non-contact, and resistant to dirt or wear.
This setup eliminates the need for hollow rods or complex mechanical linkages. It provides continuous real-time position feedback, enabling better control and automation.
Smart cylinders combine sensors, microcontrollers, or PLCs to monitor position, speed, and force simultaneously. They communicate data to control systems for precise adjustments. This integration allows:
Automated corrections for load changes or wear
Real-time diagnostics to predict maintenance needs
Enhanced safety through immediate fault detection
Smart cylinders improve efficiency and reduce downtime in demanding industrial environments.
Real-time position monitoring helps operators optimize machine performance. It enables:
Faster setup and changeover times
Reduced energy consumption by avoiding overshoot or unnecessary movements
Early detection of leaks, wear, or misalignment before failures occur
This proactive approach extends equipment life and lowers maintenance costs.
Proper hydraulic cylinder control plays a crucial role in safe, efficient machinery operation. When you manage cylinder motion precisely, you avoid sudden jerks or unexpected movements that could harm operators or damage equipment. Safety is always the top priority, especially in heavy-duty machines where high forces act rapidly.
Controlling cylinders correctly also extends machinery life. Smooth, predictable motion reduces wear on seals, rods, and valves. It lowers maintenance frequency and cost, keeping production running longer without interruptions. Machines that operate under well-regulated pressures and loads experience less fatigue and fewer breakdowns.
Another key benefit is performance optimization under varying conditions. Loads and pressures change during work cycles, and good control systems adapt accordingly. They maintain consistent speed and force, ensuring tasks complete accurately regardless of external factors. This adaptability improves productivity and reduces energy waste.
Imagine a hydraulic press: if the cylinder speed varies wildly or force spikes unexpectedly, the product quality suffers. Precise control guarantees smooth motion, protecting both the machine and the workpiece. Similarly, in mobile equipment like excavators, proper control prevents jerky arm movements, enhancing operator comfort and safety.
In summary, effective hydraulic cylinder control means:
Safer operation by preventing sudden, unpredictable motions
Longer machinery lifespan due to reduced wear and tear
Lower maintenance costs and downtime
Consistent performance under changing load and pressure
Improved product quality and operator comfort
By investing in proper control techniques, you ensure your hydraulic equipment runs smoothly, reliably, and safely in any application.
Mastering hydraulic cylinder control ensures smooth, safe, and efficient machine operation. Advanced technologies like smart sensors and proportional valves enhance precision and responsiveness. Adopting precise control methods reduces wear, energy waste, and downtime. This improves machinery efficiency and operator safety significantly. For reliable and innovative hydraulic solutions, consider EONMACH, whose products deliver superior control and durability tailored to modern industrial needs. Their expertise supports optimized performance in every application.
A: A hydraulic cylinder is a linear actuator that converts fluid pressure into mechanical force by moving a piston inside a barrel, powering machinery with straight-line motion.
A: You can control speed by regulating hydraulic fluid flow using methods like metered flow control, needle valves, or proportional directional valves for precise motion.
A: Controlling force prevents overload damage and ensures safe operation by adjusting fluid pressure and using devices like pressure relief and load-sensing valves.
A: Single-acting cylinders move in one direction using fluid pressure, while double-acting cylinders use pressure on both sides for bidirectional, precise control.
A: Regularly inspect and replace seals, maintain clean hydraulic fluid, and lubricate components to prevent leaks and extend cylinder life.
