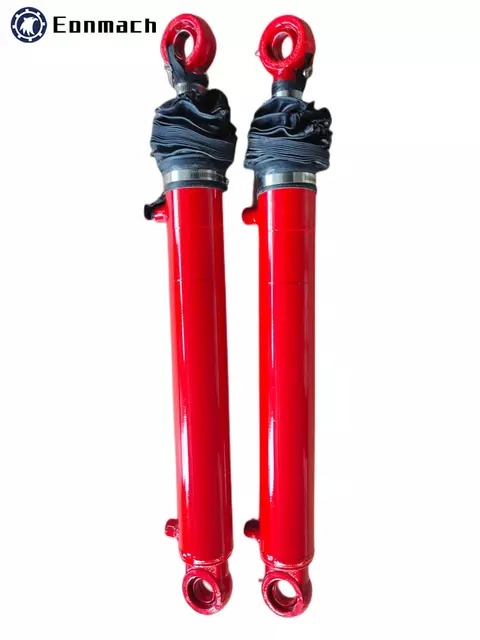

How do heavy machines lift, push, and position massive loads with such precise control? The answer often lies in the hydraulic cylinder, which converts fluid pressure into powerful linear motion. This guide explains how hydraulic cylinders work, their main functions, and their importance across industrial applications.
Understanding the key components of a hydraulic cylinder helps you grasp how it works and how to maintain it properly. Each part plays a specific role to ensure smooth, powerful motion.
The cylinder barrel is the main body of the hydraulic cylinder. It holds the hydraulic fluid and guides the piston’s movement. This barrel must be strong and smooth inside to prevent leaks and reduce friction. Usually, it’s made from steel or other durable metals to handle high pressure.
The piston rod connects the piston inside the barrel to the machine or equipment. It moves in and out, transferring force generated by the hydraulic fluid. The piston itself fits tightly inside the barrel and separates the fluid chambers. When fluid pressure pushes on the piston, it moves the rod, creating mechanical motion.
The cylinder head is located at the rod end of the barrel. It supports the piston rod and contains seals to prevent fluid leaks. The cylinder bottom, or cap, closes the opposite end of the barrel, sealing the hydraulic fluid inside. Both parts must be securely attached to maintain pressure and protect internal components.
Rod glands are the components in the cylinder head that guide the piston rod and house the seals. Seals prevent hydraulic fluid from leaking out and keep contaminants from entering. Cushions are sometimes added to slow down the piston near the end of its stroke, reducing shock and wear.
Hydraulic fluid transfers force within the cylinder. It must have the right viscosity to flow smoothly and resist heat and wear. Clean, high-quality fluid helps prevent corrosion and damage to seals and moving parts, ensuring the cylinder works reliably.
Hydraulic cylinders come in several designs. Each type provides a different combination of movement, control, stroke length, and installation space.
Cylinder Type | How It Works | Main Advantages | Common Applications |
|---|---|---|---|
Single acting | Hydraulic pressure moves the piston in one direction. A spring, gravity, or external load returns it. | Simple design, lower cost, and easy maintenance | Jacks, presses, lifts, and clamping systems |
Double acting | Hydraulic pressure extends and retracts the piston. | Precise control and powered movement in both directions | Construction equipment, industrial machinery, and automation systems |
Telescopic | Multiple nested stages extend in sequence to create a long stroke. | Long reach with a compact retracted length | Dump trucks, cranes, lifting platforms, and material-handling equipment |
Piggyback | Two cylinders are mounted together to provide multiple or extended movements. | Compact arrangement and flexible motion control | Specialized machinery with limited installation space or complex motion needs |
Choosing the right hydraulic cylinder depends on the required movement, load, stroke length, available space, and level of control.
Tip: Match the cylinder type to your application’s force, stroke length, and control needs for optimal performance and durability.
Proper installation ensures your hydraulic cylinder works smoothly and lasts longer. First, mount the cylinder securely on a stable surface or frame using the correct brackets or mounts. Align the piston rod carefully with the load or machine part it moves to avoid bending or side loading, which can cause damage. Connect hydraulic hoses or pipes firmly to the ports, ensuring no leaks or kinks. Use clean hydraulic fluid during setup to prevent contamination. Finally, test the cylinder at low pressure to check for smooth operation and leaks before full use.
Operate your hydraulic cylinder within its rated pressure and load limits to avoid damage. Use the control valves properly to regulate fluid flow and speed, preventing sudden movements that stress the system. Avoid rapid cycling or overloading, which can wear seals and components quickly. Keep the piston rod clean and free from debris to reduce seal wear. When not in use, retract the piston rod fully to protect it from damage and corrosion.
Hydraulic cylinders can exert great force, so safety is vital. Always wear protective gear such as gloves and safety glasses when working near them. Never place hands or body parts near moving parts during operation. Check hoses and fittings regularly for signs of wear or leaks that could cause fluid injection injuries. Use lockout/tagout procedures before maintenance to prevent accidental activation. Ensure the cylinder is supported properly to prevent unexpected movement or falling loads.
Regular maintenance keeps your hydraulic cylinder reliable. Inspect seals, rod glands, and hoses frequently for leaks or damage. Replace worn or damaged parts promptly. Keep hydraulic fluid clean by changing filters and fluid regularly according to manufacturer recommendations. Lubricate moving parts as needed to reduce friction. Store cylinders in a dry, clean place when not in use to prevent rust and contamination. Schedule professional inspections periodically for thorough system checks.
Hydraulic cylinders work by using hydraulic fluid to create force and motion. When fluid is pumped into the cylinder, it pushes against the piston inside the barrel. Because fluid is incompressible, it transfers pressure evenly and efficiently. This pressure creates mechanical force that moves the piston rod. The fluid flows through valves and hoses, controlled carefully to regulate speed and direction.
A key principle of hydraulic cylinders is force multiplication. The piston inside the cylinder has a certain surface area. When fluid pressure acts on this area, it generates force. If you have two pistons of different sizes connected by fluid, the smaller piston requires less force to move. This force is then multiplied on the larger piston, producing greater output force. This principle allows hydraulic systems to lift heavy loads with relatively small input force.
Often, hydraulic cylinders use pairs of pistons connected in parallel through fluid lines. When one piston moves, it pushes fluid to the other piston, causing it to move as well. This setup allows complex movements and force control. The fluid transmission between pistons ensures smooth operation and efficient power transfer. This system is common in applications requiring synchronized or amplified motion.
Hydraulic cylinders are crucial in many real-world applications. For example, aircraft landing gear uses hydraulic cylinders to extend and retract wheels smoothly and reliably. The hydraulic system applies fluid pressure to move the pistons, which operate the landing gear mechanisms. This ensures safe takeoff and landing. Other examples include construction equipment like excavators, where cylinders lift heavy arms, and industrial presses that apply powerful forces for shaping materials.
In industrial manufacturing, hydraulic cylinders power presses, molding machines, clamping systems, and automated equipment. They provide consistent force for shaping, assembling, and positioning heavy components with controlled movement.
Construction equipment uses hydraulic cylinders for demanding lifting and digging tasks. They move excavator arms, loader buckets, bulldozer blades, and crane booms while operating under heavy loads and harsh outdoor conditions.
Automotive manufacturers use hydraulic cylinders to lift, position, and assemble vehicle parts. In aerospace systems, they may operate landing gear, cargo doors, and flight-control components that require dependable movement and precise control.
Hydraulic cylinders also support agricultural, marine, mining, forestry, and material-handling equipment. Selecting a cylinder designed for the application’s load, environment, and duty cycle helps improve reliability, safety, and service life.
Tip: Choose hydraulic cylinders designed for your specific industry’s conditions to ensure reliable performance and longer service life.
Hydraulic cylinders can develop problems that affect performance or cause failure. The most common issues include:
Fluid leaks around seals, rod glands, or fittings.
Slow or erratic movement caused by internal wear or contamination.
Piston rod bending or scoring due to misalignment or debris.
Loss of pressure or force, often from worn seals or fluid contamination.
Noisy operation, which may indicate cavitation or air in the system.
Overheating due to excessive friction or fluid breakdown.
Recognizing these symptoms early helps prevent costly damage and downtime.
Diagnosing problems requires a systematic approach:
Visual Inspection: Check for visible leaks, damaged hoses, or bent rods.
Check Fluid Level and Quality: Low or dirty fluid can cause issues.
Operate the Cylinder Slowly: Observe for smoothness, speed, and noise.
Pressure Testing: Use gauges to verify system pressure matches specs.
Seal Inspection: Look for wear or damage on seals and rod glands.
Alignment Check: Ensure the cylinder and load are properly aligned.
Check for Contamination: Inspect fluid and components for dirt or metal particles.
Using this method helps pinpoint the root cause accurately.
Repairs depend on the issue found:
Seal Replacement: Most leaks come from worn seals. Replace seals and rod glands to restore tightness.
Piston Rod Repair: Minor scoring can be polished out; severe bending requires rod replacement.
Cylinder Barrel Repair: Deep scratches or corrosion may require re-boring or barrel replacement.
Hydraulic Fluid Change: Contaminated fluid should be drained and replaced.
Component Replacement: If damage is extensive, replacing pistons, cushions, or entire cylinders may be necessary.
Always follow manufacturer guidelines for repairs. Use quality parts to ensure reliability.
Preventing problems is better than fixing them. Key maintenance tips include:
Regular Seal Inspection: Check seals for wear and replace before leaks start.
Keep Fluid Clean: Use filters and change fluid per schedule.
Proper Alignment: Avoid side loading by aligning cylinder and load correctly.
Avoid Overloading: Use cylinders within rated capacities.
Routine Lubrication: Lubricate moving parts to reduce wear.
Monitor System Pressure: Prevent pressure spikes that damage components.
Store Properly: Protect cylinders from dirt and corrosion when not in use.
Consistent maintenance extends cylinder life and reduces unexpected failures.
Maximizing the use of hydraulic cylinders involves understanding their components and types for proper operation. Proper use ensures efficient force transfer and smooth motion in various applications. Regular maintenance and correct installation extend cylinder life and prevent failures. Following safety guidelines protects users and equipment. For reliable performance and expert support, consider products from EONMACH, which offer durable, high-quality hydraulic cylinders designed to meet diverse industrial needs. Their solutions help optimize productivity and reduce downtime.
A: A hydraulic cylinder uses hydraulic fluid to create force and motion by pushing a piston inside a cylinder barrel, transferring mechanical power.
A: Securely mount the cylinder, align the piston rod with the load, connect hoses tightly, use clean fluid, and test at low pressure to ensure smooth operation.
A: Maintenance prevents leaks, wear, and contamination, extending the hydraulic cylinder’s life and ensuring reliable performance.
A: Common issues include fluid leaks, slow movement, and rod damage; solutions involve replacing seals, checking alignment, and changing fluid.
A: Prices vary by type and size; simple single acting cylinders are more affordable, while specialized or heavy-duty cylinders cost more.
