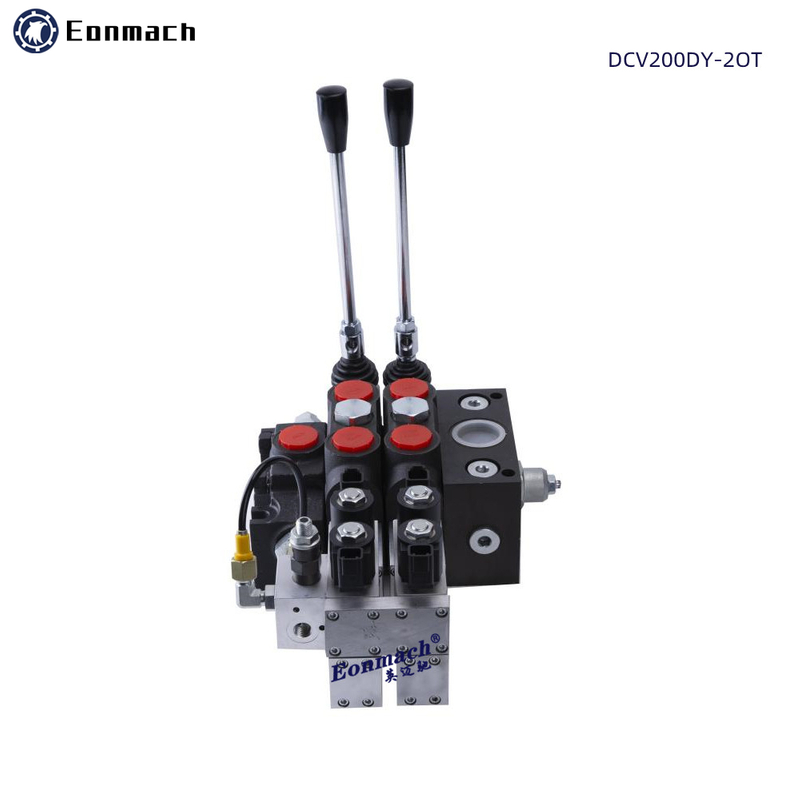

DCV200DY Directional Control Valve
Core advantages of DCV200 electro-hydraulic multi-way control valve DCV200 has a maximum rated flow of 200L/min, a pressure resistance of 31.5MPa, a super-large flow high-pressure valve body, and an electro-hydraulic control structure, which is perfectly suitable for heavy wood grabbing machines, large engineering machinery, and port heavy-duty equipment.
Compared with manual/ordinary hydraulic control, the advantages are very prominent:
Effort-saving control, suitable for large flow, high pressure and heavy load working conditions DCV200 itself has large flow and high pressure, and manual operation is laborious and easy to fatigue;The electric signal drives the electromagnetic pilot valve, and then the hydraulic thrust drives the main valve core.
The operator can control the super-large flow oil circuit only by pushing the handle lightly. It is not easy to fatigue for a long time of continuous heavy-duty operation, and the feeling of long-term use is greatly improved. High action precision, stepless flow control The displacement of the valve core is controlled by the electro-hydraulic proportion, the flow is continuously adjustable, the actions of snatching, lifting and turning are finely controlled by the micro-motion, the material is grabbed under heavy load without material flushing and shaking, and the positioning is accurate; the flow is automatically distributed during the multi-link composite action,The multi-way action does not grab oil and has very little stutter, and the operation stability is far superior to that of the manual valve. Support remote + automation integration, with strong expansibility
The electric signal can be connected to PLC, vehicle-mounted controller and wireless remote control module to realize remote control and automatic operation program presetting; the cab of large equipment is far away from the operation end and the high-risk forest area/construction site scene, and can be remotely operated to greatly improve the operation safety; the old equipment can be intelligently upgraded by installing the electric control module without large-scale modification of the hydraulic pipeline. Quick response and good adaptability to dynamic working condition The electric signal is transmitted in milliseconds, and the pilot hydraulic is synchronized.
