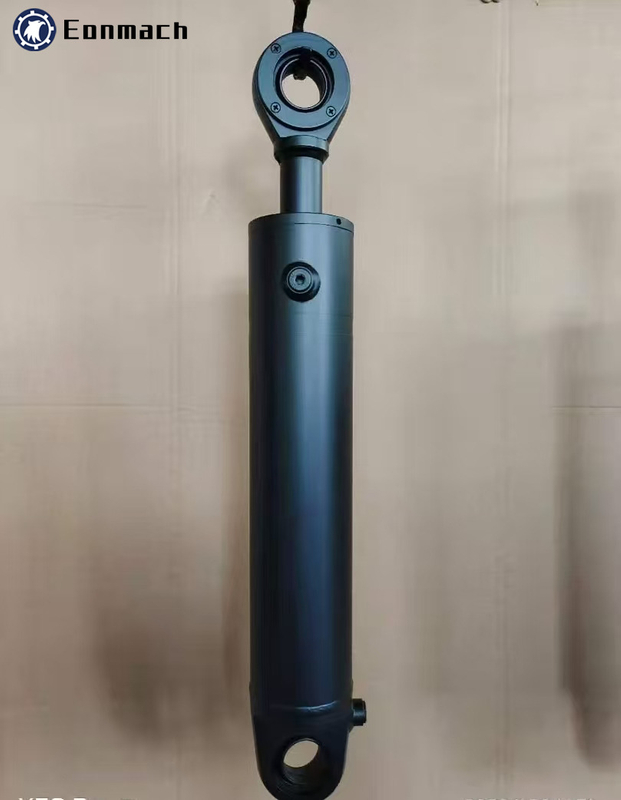

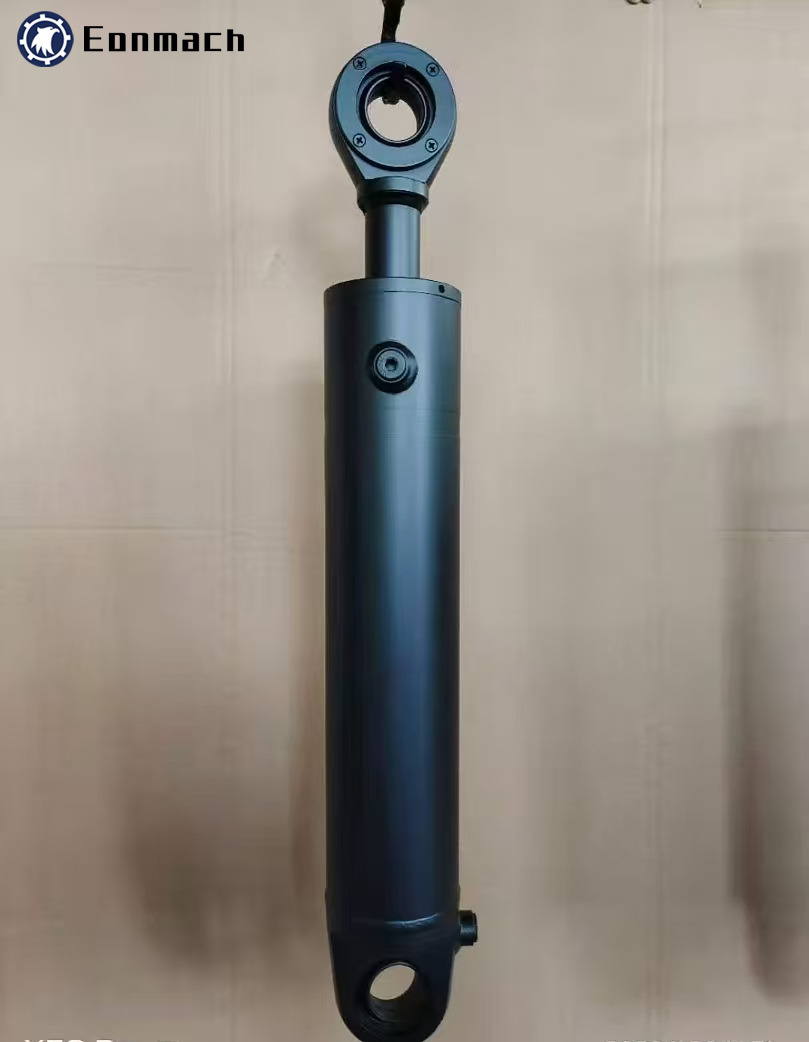

Steering Hydraulic Cylinder for Tractor

This hydraulic cylinder tube material is 20# steel, rod material is 45# steel,high quality bearings,imported brand seals,special for tractor lifting.
  • EM20-4103

  • EONMACH

  • 84122100.90

Availability:
Quantity:

Product Description

The EONMACH EM20-4103 Steering Hydraulic Cylinder for Tractor converts hydraulic pressure into linear force to operate a compatible tractor steering mechanism. Its double-acting design provides powered extension and retraction, supporting controlled steering movement during fieldwork and routine agricultural operations.

Featuring a 110 mm bore, 50 mm piston rod, and 400 mm stroke, this tractor hydraulic cylinder combines a 20# steel cylinder tube with a 45# steel piston rod. A hard chrome-plated rod surface, branded seals, bearings, and protective surface treatment help address the wear, contamination, and moisture encountered in agricultural environments.

Available with OEM and ODM support, the cylinder can be reviewed against customer drawings, connection dimensions, and hydraulic requirements for new equipment or replacement projects.


Technical Parameters

technical parameters for Steering Hydraulic Cylinder for Tractor

Core Performance

Double-Acting Steering Movement

Hydraulic pressure drives the piston in both directions, allowing the cylinder to extend and retract under control of the tractor’s steering circuit. When correctly matched to the steering system, this arrangement supports responsive movement and reduces the physical effort required to steer.

Controlled Linear Travel

The 400 mm stroke provides a defined range of cylinder movement. Matching this travel to the steering linkage and mechanical stops helps establish the required wheel movement without exceeding the equipment’s intended steering range.

Sealing and Contamination Protection

Branded sealing components and dust protection help retain hydraulic fluid and limit the entry of dirt and moisture around the rod. These features support consistent operation in environments where mud, dust, and water exposure are common.

Wear and Corrosion Protection

The polished, hard chrome-plated piston rod provides a working surface for the rod seals and helps resist wear and corrosion. Protective coating on external surfaces adds resistance to environmental exposure during outdoor agricultural use.

Inspection Before Shipment

EONMACH states that finished cylinders undergo pressure testing, extension and retraction checks, and leakage inspection before delivery. These checks help identify assembly and sealing issues before installation.

Product Advantages

Defined Materials and Dimensions

The specified steel grades and 110/50/400 mm bore, rod, and stroke dimensions provide a clear starting point for technical evaluation. Buyers can compare the configuration with their equipment drawings before proceeding with detailed selection.

Construction for Agricultural Conditions

The combination of a steel tube, chrome-plated rod, seals, dust protection, and external coating addresses common sources of cylinder deterioration in farm service. Together with suitable maintenance, these features help preserve the condition of working surfaces and sealing components.

Customization for Equipment Integration

OEM and ODM support allows customers to submit requirements for dimensions, mounting arrangements, and hydraulic connections. Reviewing these details before production helps align the cylinder with the tractor’s available space and steering geometry.

Support for Replacement Projects

EONMACH can review drawings and specifications when assessing a replacement cylinder. This helps buyers check the complete installation requirements, including closed length, stroke, mounting connections, port location, and operating pressure.

Sample Evaluation and Technical Support

A sample can be supplied for testing before a larger order. Pre-sales selection assistance and after-sales guidance support customers through specification review, installation planning, and maintenance enquiries.

Application Scenarios

Agricultural Tractor Steering

For compatible tractor steering systems used during cultivation, planting, spraying, and general fieldwork. Cylinder selection must match the steering linkage, hydraulic supply, and required operating forces.

Farmyard Maneuvering

For tractors operating around barns, storage areas, loading points, and other spaces requiring frequent changes in direction. Proper system matching helps provide controlled steering during repeated maneuvers.

Tractor Manufacturing and Assembly

For OEM projects requiring a hydraulic steering cylinder reviewed against an approved equipment drawing. Mounting dimensions, stroke, hydraulic connections, and performance requirements can be specified during the design stage.

Replacement and Refurbishment

For repair workshops, agricultural machinery distributors, and fleet maintenance teams sourcing a replacement cylinder. Suitability should be established through dimensional and hydraulic checks rather than appearance alone.

FAQ

Q: Is this tractor steering cylinder double-acting?

A: Yes. The product page describes a double-acting design, which uses hydraulic pressure for both extension and retraction. It must be connected to a compatible steering control circuit.

Q: What are the standard dimensions?

A: The published dimensions are a 110 mm bore, 50 mm piston rod diameter, and 400 mm stroke. Mounting center distances, pin dimensions, port threads, and overall dimensions should be confirmed using the product drawing.

Q: What materials are used?

A: The product summary specifies a 20# steel cylinder tube and a 45# steel piston rod. The page also describes hard chrome plating and precision polishing for the rod surface.

Q: What is the rated working pressure?

A: The product page does not provide a numerical pressure rating for the EM20-4103. Provide the tractor’s operating pressure and relief valve setting so EONMACH can confirm a suitable cylinder specification.

Q: Will this cylinder fit my tractor?

A: Compatibility depends on more than bore and stroke. Check the tractor model, mounting arrangement, retracted and extended lengths, pin sizes, port connections, operating pressure, and steering geometry. Submit a drawing or the original cylinder specifications for review.

Q: Can the cylinder be customized?

A: Yes. EONMACH offers OEM and ODM services according to customer drawings and technical requirements. Submit the required dimensions, mounting details, hydraulic connections, operating conditions, and order quantity for evaluation.

Q: Can I order a sample before bulk production?

A: Yes. EONMACH states that one sample can be made for testing. Sample specifications, pricing, and delivery arrangements should be confirmed when placing the order.

Q: What are the production time and warranty?

A: The product page lists a production time of 30 days and a one-year warranty. Confirm the delivery schedule and applicable warranty terms in the quotation.

Q: What maintenance does the cylinder require?

A: Keep the exposed piston rod clean and inspect it for damage or corrosion. Check seals, hose connections, and mounting points regularly, maintain hydraulic fluid cleanliness, and follow the tractor manufacturer’s service instructions. Investigate leakage, uneven movement, or unusual steering behavior promptly.
