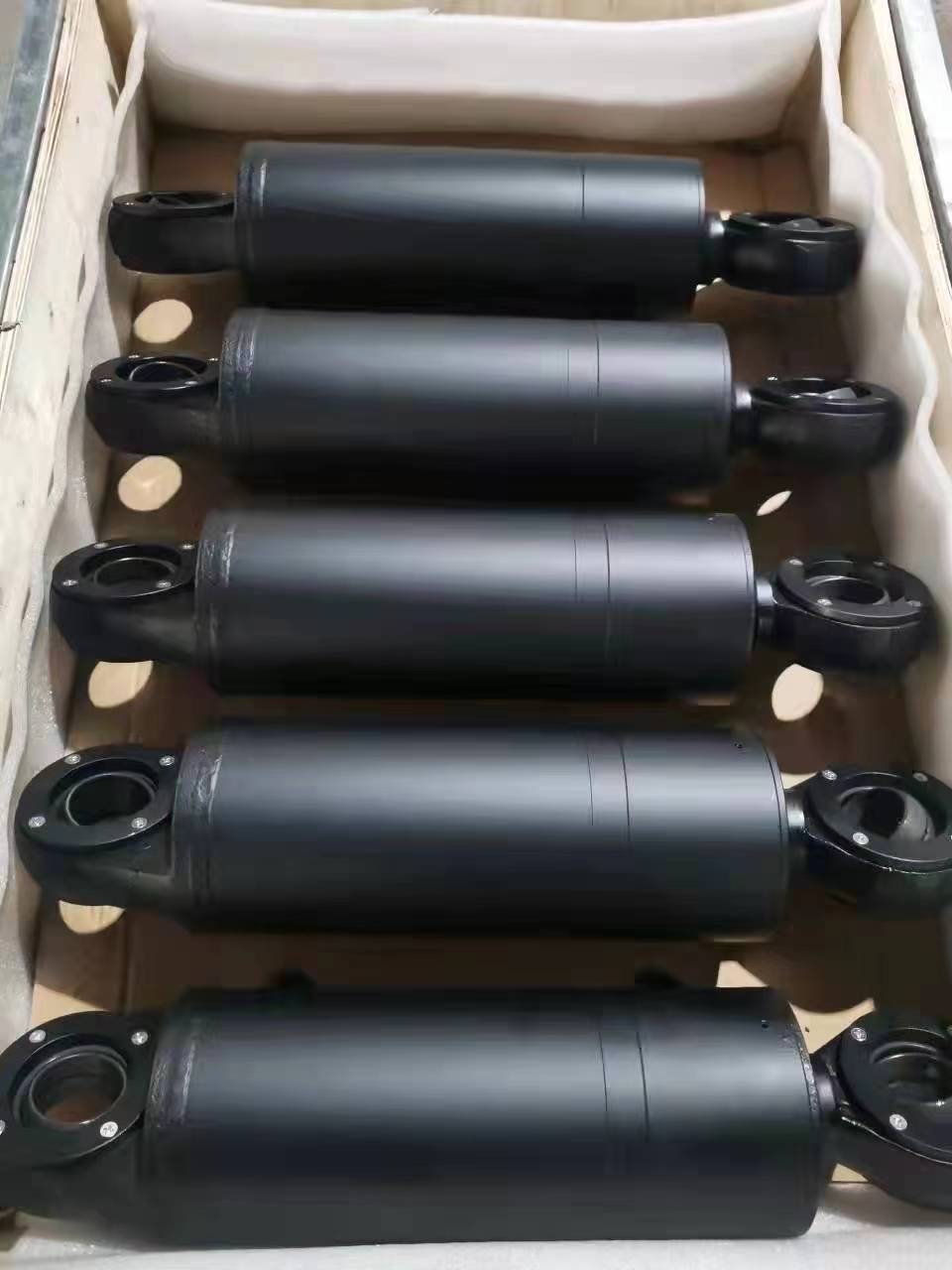

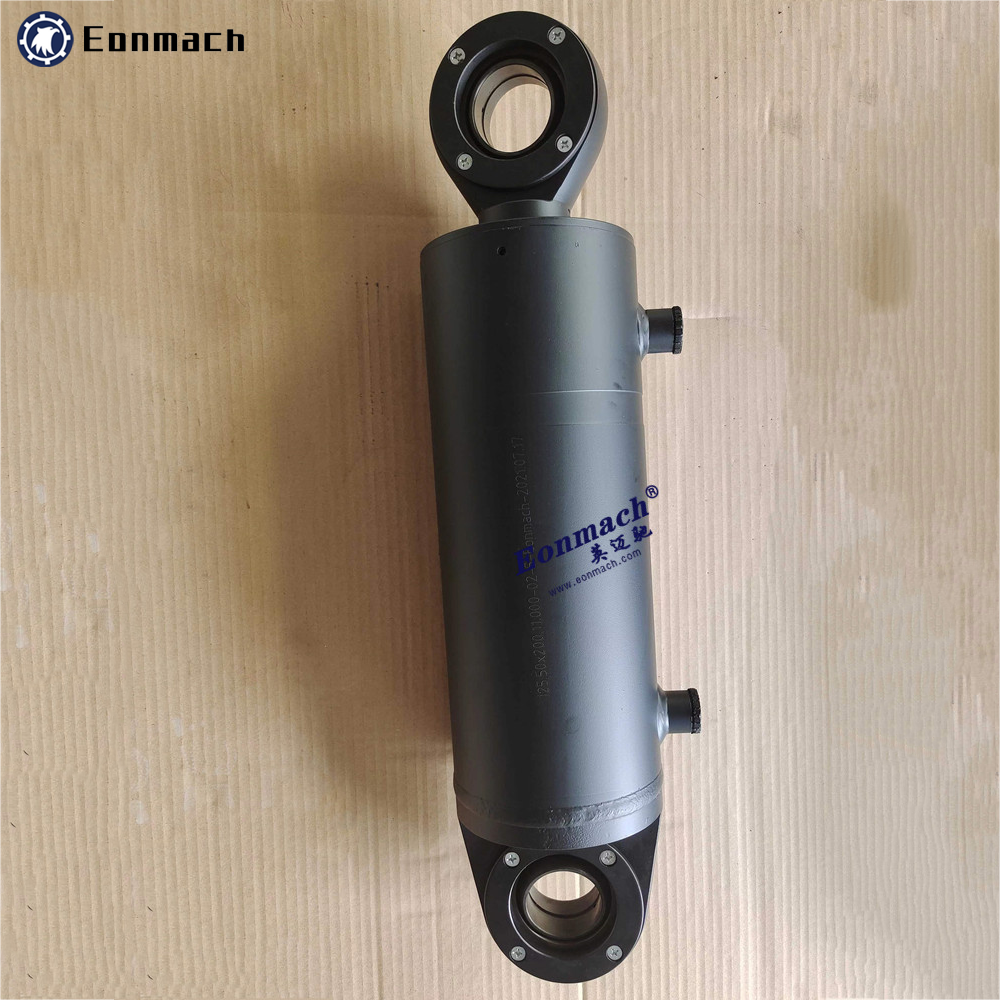

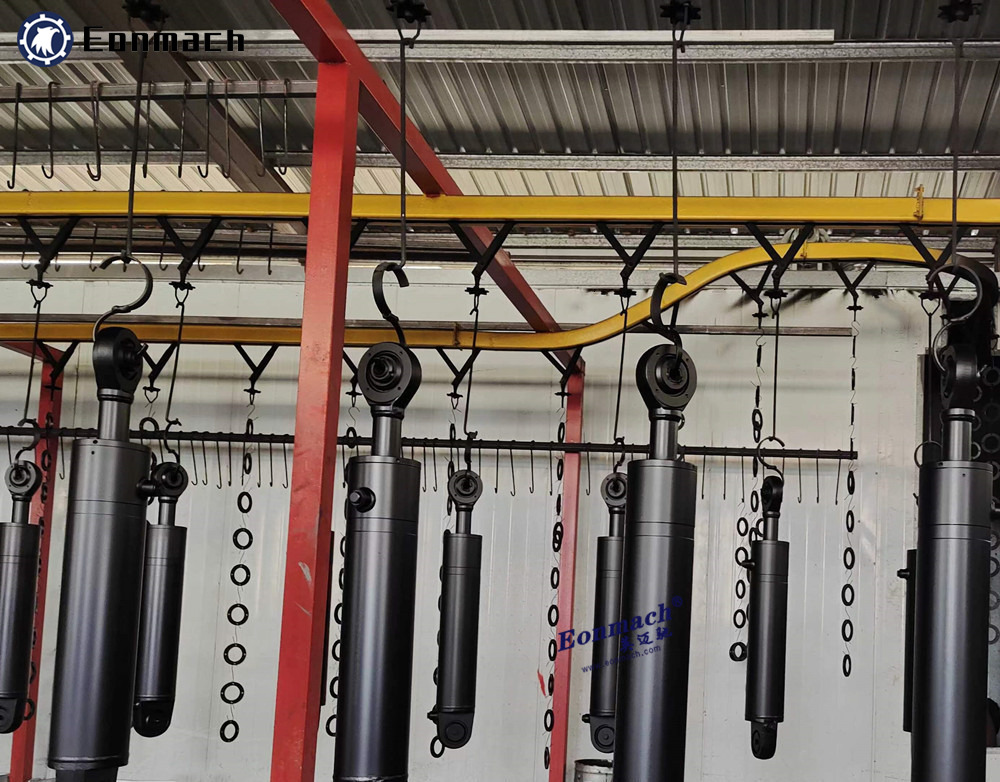

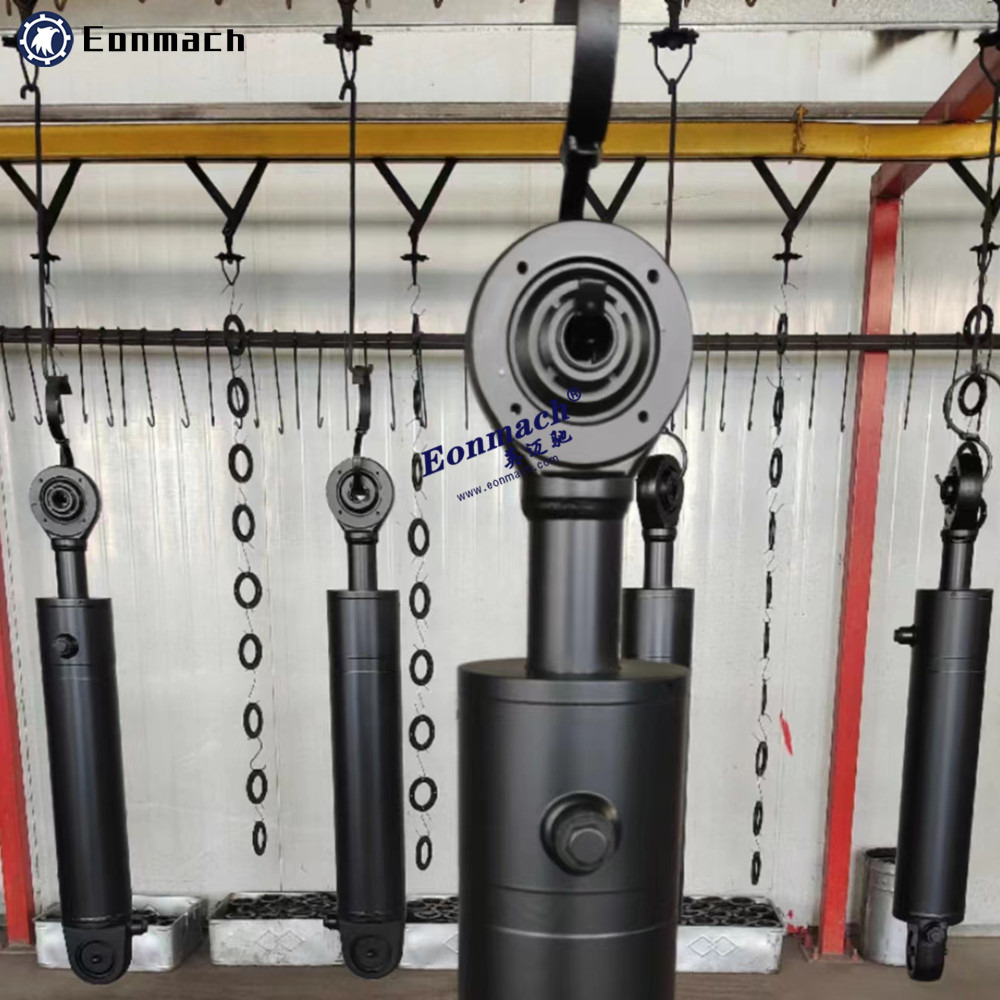

Hydraulic Cylinder for Tractor

Product Uses

This hydraulic cylinder for Tractor and Agricultural machinery.

Technical Parameters

Bore size 125mm,Rod size 50mm,stroke 200mm.

Product Advantage

The tractor lifting hydraulic cylinder has significant advantages in agricultural operations, which are mainly reflected in the following aspects:

1.Efficient operation: The hydraulic cylinder can quickly and accurately adjust the height of farm tools, reduce manual operation time, and significantly improve the efficiency of farming, sowing and harvesting operations.

2. Flexible adaptation: The height of the cylinder can be flexibly adjusted according to different operation requirements and terrain conditions to adapt to diversified agricultural production scenarios.

3.Large lifting power: It can easily meet the lifting requirements of heavy farm tools and adapt to complex operating environment.

Core advantages of tractor lifting cylinder (suspension cylinder): heavy load and strong lift, durable and corrosion-resistant, high efficiency and energy saving, suitable for the field, easy to maintain, and customizable.

 First, heavy load and strong pull, sufficient lifting force  -Operating pressure 25 – 35 MPa, single cylinder thrust 5 – 30 tons, suitable for 50 – 300 HP tractors. -High-strength alloy steel cylinder + forged steel flange, anti-eccentric load, not easy to deform. -Stepped piston rod design, bending strength increased by 50%, no bending under heavy load.

-Double action can be forced into the earth, and the operation on hard/clay ground is more stable.  2. Durability, corrosion resistance and long life in the field  -The piston rod is plated with hard chromium + ultra-fine grinding, wear-resistant and rust-resistant, and the dust ring prevents sediment intrusion. -Sealing parts are resistant to * * -40 ℃ ~ + 80 ℃ * *, suitable for severe cold and heat, and leak-proof. - -Long fatigue life, can withstand 100,000 times + high frequency lifting, continuous operation in busy farming season without strike.  3. High efficiency, energy saving and fast operation  -Fast response:The boost time is 2 – 3 seconds and the efficiency is increased by 15%. -Floating control: adaptive to the terrain when plowing, no damage to farm tools, fuel saving. -Cushion design: Reduces shock and protects suspension and implements.  And fourthly, that structure is adaptive, and the installation is flexible.  -Three-point suspension for vertical lift + horizontal fine adjustment + angle compensation. -Integrated travel limit, one-button positioning, transport/cultivation height controllable.  And 5, that maintenance is simple and the cost is low.  -Modular seal for quick field replacement without cylinder removal.

FAQ

Q Do you accept OEM or ODM manufacturing?

A Yes! We do accept OEM or ODM manufacturing. We will quote you the exact price and make the exact cylinder according to your specification and drawing.

Q Could we get small quantity samples?

A Yes! We understand the quality test is important and we are glad to make the sample for you. The MOQ is 1pcs.

Q How long is the production time?

A The production time is 25 days.

Q Could we get small quantity samples?

A Yes,we can make one sample for your test.

Q What is the warranty?

A 12 moths
