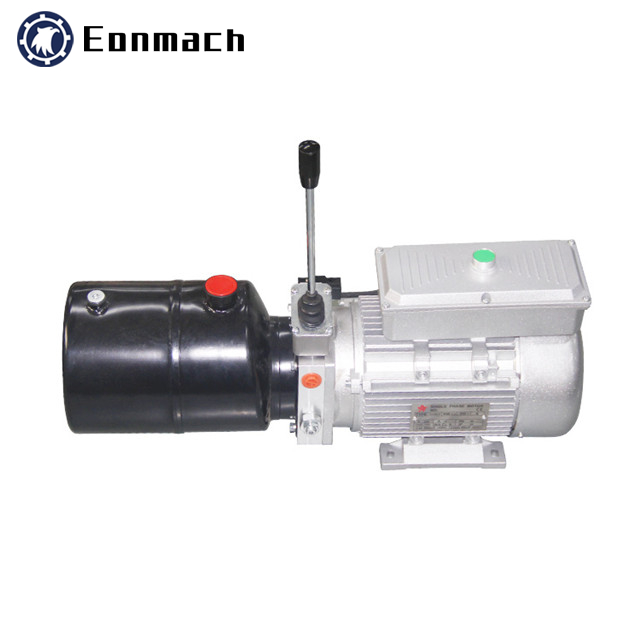

380VAC Double-Scissors Lift Hydraulic Power Unit Pack

  • EM18-0011

  • EM

  • 8412299090

Availability:
Quantity:

Product Description

220VAC 380VAC Double-scissors Lift Hydraulic Power Unit Pack

General Descriptions of hydraulic power unit :
Equiped with a zero leakage double-check solenoid valves, this power unit fulfils the complete separation of the two independent circuits, which are respectively for the main platform and subordinate platform of the double scissors lift. By increasing the number of the solenoid valve, it is easy to get more independent circuits which are used to control the corresponding cylinders.
Model Specifications of hydraulic power unit, hydraulic power pack, hydraulic power pack unit:

Model

Motor Info

Pump Displacement

Tank Capacity

Pressure

Mounting

Oil Port

HPU-29GOEMEVDFOA

220V 2.2kW 2850rpm 50Hz

2.1cc/r


20L

20MPa

Vertical

G1/4''

HPU-29GPEMEVDGOA

220V 3.0KW 2850rpm 50Hz

26MPa

HPU-29HOEMEVDFOA

380V 2.2KW 2850rpm 50Hz 22MPa

HPU-29HPEMEVDHOA

380V 3.0KW 2850rpm 50Hz 28MPa

Special Notes:

1. The duty of this power unit is S3. ie: 30 seconds on and 270s off.

2. Clean all the hydraulic parts concemed before mounting the power unit.

3. Viscosity of the hydraulic oil should be 15-68 cst, which should also be clean and free of ompurities. N46 hydraulic oil is recommended.

4. This power unit should be mounted horizontal.

5. Check the oil level in the tank after the first start of the power unit.

6. Oil changing is required after the initial 100 operation hours afterwards once every 3000 hours.
380VAC Double-Scissors Lift Hydraulic Power Unit Pack


380VAC Double-Scissors Lift Hydraulic Power Unit Pack
380VAC Double-Scissors Lift Hydraulic Power Unit Pack
