EM22-3012
EONMACH
84122100
| Quantity: | |
|---|---|

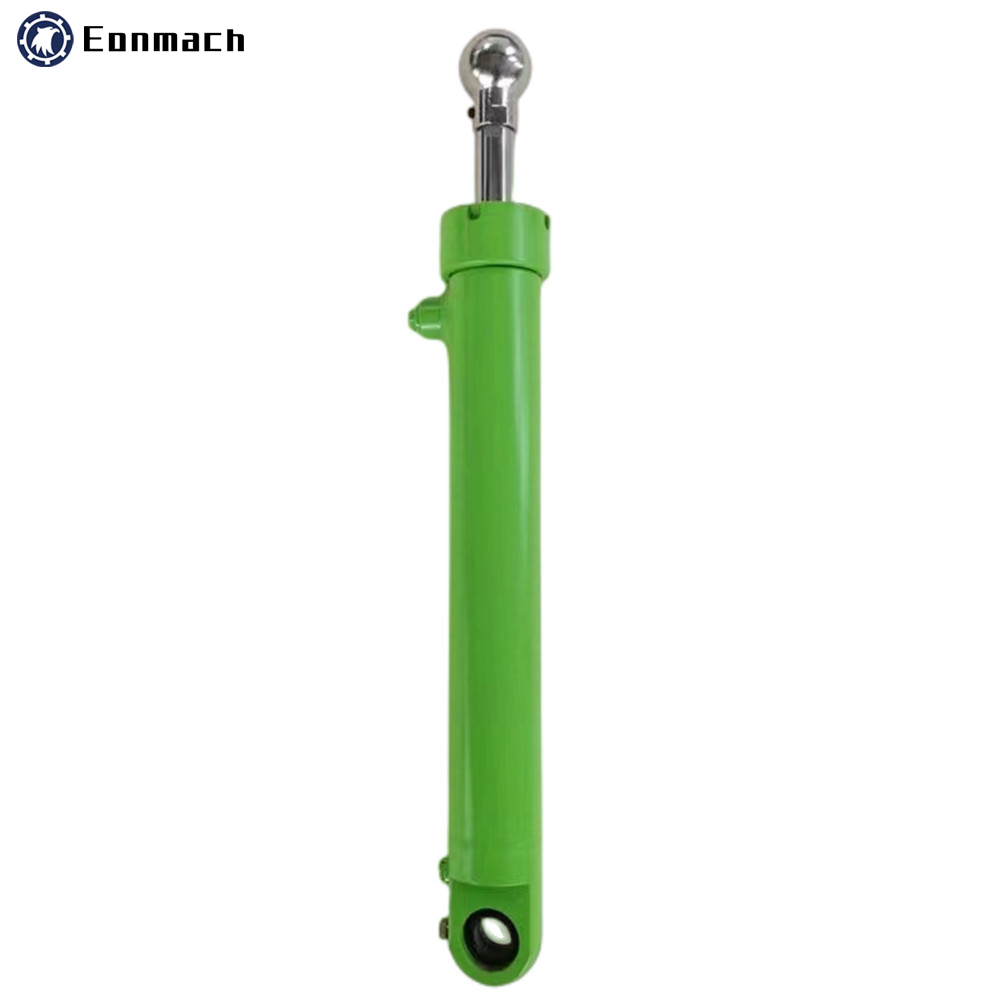

Unlike standard hydraulic cylinders, this customized version is engineered to match the specific structural dimensions, load-bearing requirements, and working environments of different agricultural machinery. It consists of key parts including precision hydraulic piston, sealed hydraulic cylinder barrel, high-strength piston rod, and adjustable hydraulic cushion, all of which are selected based on the customer’s exact needs.
The design of this custom hydraulic cylinder follows two core principles: adaptability to harsh agricultural environments and alignment with machinery working characteristics. For environmental adaptation, we use corrosion-resistant hydraulic cylinder materials, such as galvanized or chrome-plated piston rods, to resist rust caused by soil, fertilizer, and rainwater. For machinery alignment, we customize parameters like stroke length, mounting style, and pressure rating to ensure seamless integration with tractors, harvesters, and planters, eliminating the need for secondary modification of the host equipment.
The most prominent advantage of the Customized Hydraulic Cylinder for Agriculture Machinery is its full customization capability. We can adjust every key parameter according to the customer’s requirements, including stroke length (from 50mm to 2000mm), bore diameter (from 32mm to 150mm), mounting type (clevis, flange, or trunnion), and working pressure (from 10MPa to 40MPa). This tailored design ensures that the cylinder fits perfectly with the customer’s agricultural machinery, avoiding the problem of mismatched dimensions that often occurs with standard cylinders.
Agricultural machinery often needs to handle heavy loads during plowing, harvesting, and transportation, so our custom hydraulic cylinder is built with high-load bearing cylinder technology. The piston rod is made of high-strength alloy steel, which can withstand a maximum load of 50 tons without deformation. The cylinder barrel is processed with precision honing technology, ensuring smooth movement of the piston and stable output force, even under long-term heavy-load operation. This heavy-duty design significantly improves the working efficiency and service life of agricultural machinery.
Farm machinery works in harsh environments with exposure to soil, moisture, and chemical fertilizers, which are highly corrosive to hydraulic components. Our Customized Hydraulic Cylinder for Agriculture Machinery adopts a multi-layer anti-corrosion treatment process: the piston rod is chrome-plated with a thickness of 0.05mm, and the cylinder barrel is coated with anti-rust paint. The sealed hydraulic cylinder structure uses imported high-temperature resistant seals, which prevent oil leakage and the entry of impurities. As a result, the cylinder’s service life can reach 8-10 years, which is twice as long as that of ordinary agricultural hydraulic cylinders.
The custom hydraulic cylinder is equipped with a precision hydraulic stroke adjustment system, which allows users to control the movement distance of the piston rod with an accuracy of ±1mm. This precision control is crucial for agricultural operations that require high accuracy, such as seeding depth adjustment and pesticide spraying height control. Additionally, the cylinder is designed with a hydraulic cushion device, which reduces the impact force when the piston reaches the end of the stroke, protecting both the cylinder and the connected agricultural machinery parts.
Tractors are the most widely used agricultural machinery, and our Customized Hydraulic Cylinder for Agriculture Machinery is an essential component for tractor hydraulic systems. It can be used to drive the lifting of the tractor’s three-point hitch, adjust the height of agricultural implements such as plows and harrows, and control the tilting of the tractor’s cab. The customized mounting style ensures easy installation, and the high-load bearing capacity meets the needs of heavy-duty tractor operations.
In harvesters and threshers, the custom hydraulic cylinder is used to control the movement of the cutting table, the conveying belt, and the threshing drum. Its precision hydraulic stroke ensures that the cutting table maintains a consistent height from the ground, improving the harvesting efficiency and reducing grain loss. The corrosion-resistant design also makes it suitable for long-term operation in fields with high humidity and dust.
For large-scale agricultural irrigation and fertilization machinery, such as sprinkler trucks and fertilizer spreaders, the custom hydraulic cylinder is used to adjust the angle of the sprinkler arm and the opening of the fertilizer hopper. Its stable output force ensures uniform distribution of water and fertilizer, improving the utilization rate of resources and reducing production costs.
You need to provide the machinery model, required stroke length, bore diameter, mounting type, working pressure, and the expected working environment (such as temperature range and humidity level).
Yes, we can provide a special anti-corrosion treatment (such as stainless steel material or thickened chrome plating) for cylinders used in coastal areas to resist saltwater corrosion.
The production cycle is usually 7-15 working days, depending on the complexity of the specifications. For bulk orders, we can shorten the delivery time to 5 working days.
Yes. Single-acting cylinders rely on hydraulic pressure for extension and spring force for retraction, suitable for simple lifting tasks. Double-acting cylinders use hydraulic pressure for both extension and retraction, suitable for complex and precise movement control.
We provide a detailed installation manual with each cylinder, including step-by-step installation instructions and debugging methods. We also offer online technical support if you encounter any problems during installation.
