Hydraulic Power Pack Unit for Double Acting Concrete Mixer Truck

  • EM15-0007
  • EM
  • 8412299090
Quantity:

Product Description

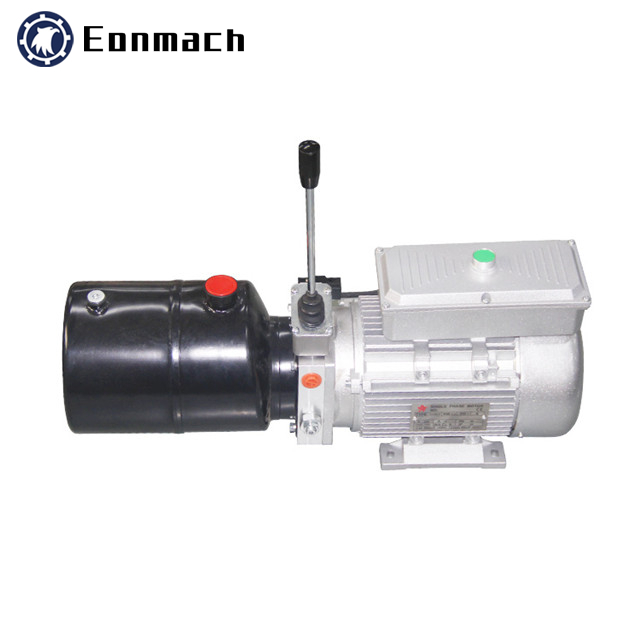

Hydraulic Power Pack Unit for Double Acting Concrete Mixer Truck
Hydraulic Power pack/ Hydraulic Power unit/Hydraulic system for cement mixer/grouting machine is designed for lift platform/hoistable platformcement mixer/grouting machine,Equipped with a high pressure gear pump , a ac motor , a multi-functional manifold valves and a tank , ect . specially designed for cement mixer/grouting machine, with the function of power lift and gravity lowering the fixed compensated valve maintaining the lowering in steady speed.


pump displacementtank capacitypressuremountingoil portLength
220V 0.75KW  1440RPM 50HZ1.6CC/R4L18MPAHORIZONTALG1/4''290
220V 1.5KW  2850RPM 50HZ1.6CC/R6L20MPAHORIZONTAL3/8'' NPT290
220V 1.5KW  2850RPM 50HZ2.1CC/R8L16MPAHORIZONTAL3/8'' NPT370
380V 2.2KW  2850RPM 50HZ2.1CC/R10L20MPAHORIZONTAL3/8'' NPT440
380V 2.2KW  2850RPM 50HZ2.6CC/R125L16MPAHORIZONTAL1/4 BSPP545
