Product Uses
This hydraulic power unit for 2 post vehicle lift and 4 post vehicle lift ensures stable lifting and lowering, compatible with standard garage and auto repair lifts.

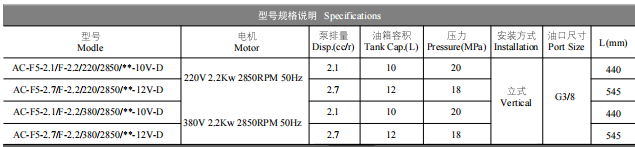

Technical Parameters
Product Advantage
The power unit of the vehicle lift plays an important role in many fields because of its high efficiency, flexibility and reliability. The following are the main advantages:
1.1. Compact structure, easy to install The power unit of the lift is small in size and light in weight, and is convenient to install and arrange in a limited space. The hydraulic pump and the hydraulic motor are connected through an oil pipe, so that a complex mechanical transmission structure is not needed, and the space is further saved.
2. Strong power and adaptability Can provide stable power output,Adapt to the needs of different loads and working environments. Whether it is a small motorcycle lift or a large car lift, it can meet its power needs and is suitable for a variety of work scenarios.
3. stable performance and long service life It adopts high-quality sealing technology and high-quality materials.To ensure the sealing and stability of the power unit. As a working medium, hydraulic oil can effectively lubricate the surface of components, reduce wear and prolong service life.
Notice
1.This power unit is S3 working type, can not work continuously, can work repeatedly.
2.Before installation, please be sure the cleanliness of component like tank, tube and fittings, without any impurities.
3.Viscosity of oil should be 15-68CST, should be clean and without impurities. Suggest to use N46 hydraulic oil. If need to work all-weather, must use aviation hydraulic fluid.
4.This power unit is vertical installation.
5.After first work, oil tank should be checked immediately to see if there’s enough oil.
6.After the first 100 working hour, hydraulic oil should be replaced. After that, the oil should be replaced every 3000 working hours.
FAQ
Q What can I pay my order?
A We accept T/T and Western Unionx
Q Do you have any certificate?
A We have passed CE certificate.
Q What is the warranty?
A One year
Hydraulic Schematic
