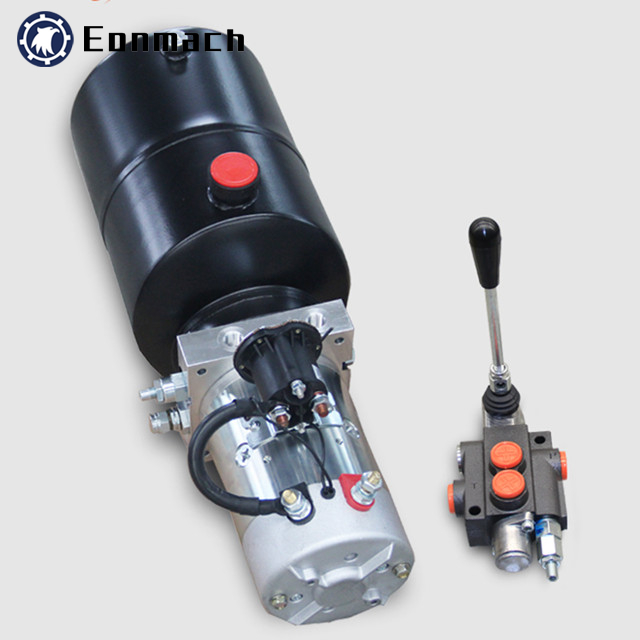

Lift Hydraulic Power Pack Unit for Truck Lifting Platform Loading Unloading Platform Tailboard Fork Truck 12V 24V DC

  • EM18-0027
  • EM
  • 8412299090
Quantity:

Product Description

lift hydraulic power pack unit for Truck lifting platform loading unloading platform tailboard fork truck 12v 24v dc

Overview
Quick Details
Type:
Hydraulic Power Units
Brand Name:
EOMACH
Place of Origin:
Shandong, China
1.install style:
horizontally, vertical
2.Motor volt:
12V, 24V, 48V DC or 110v,220v,240V AC
3.Pump:
0.25 0.5 0.75 1.0 1.25 1.6 2.0 2.5 cc / r
4.Motor:
250w, 250w, 800w, 1.6kw, 2kw, 3kw
Packaging & Delivery
Lead Time :

Quantity(Pieces) 1 - 10 11 - 50 51 - 100 >100
Est. Time(days) 5 10 15 To be negotiated


Lift Hydraulic Power Pack Unit for Truck Lifting Platform Loading Unloading Platform Tailboard Fork Truck 12V 24V DC

Model Specifications

MODEL MOTOR VOLTAGE MOTOR POWER SPEED DISPLACEMENT SYSTEM PRESSURE TANK CAPACITY L(MM)
FD4DC1DWA02C 12V DC 1.5KW 2800R 1.0ML/R 20MPA 4.0L 435
FE5DC1DWA02C 12V DC 1.5KW 2800R 1.6ML/R 20MPA 5.0L 480
FF6DC2EWB02C 24V DC 2.2KW 2800R 2.0ML8R 20MPA 6.0L 500
EG8DC2EWB02C 24V DC 2.2KW 2800R 2.5ML8R 16MPA 8.0L 580


Packing

Lift Hydraulic Power Pack Unit for Truck Lifting Platform Loading Unloading Platform Tailboard Fork Truck 12V 24V DC

Lift Hydraulic Power Pack Unit for Truck Lifting Platform Loading Unloading Platform Tailboard Fork Truck 12V 24V DC


Lift Hydraulic Power Pack Unit for Truck Lifting Platform Loading Unloading Platform Tailboard Fork Truck 12V 24V DC
