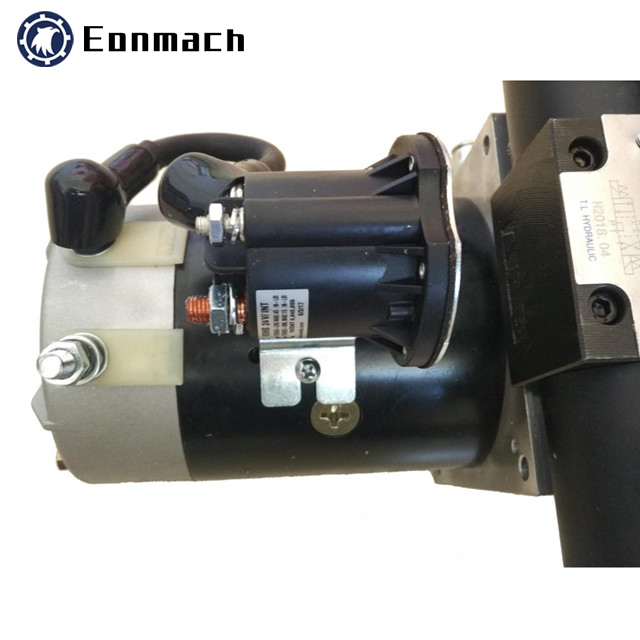

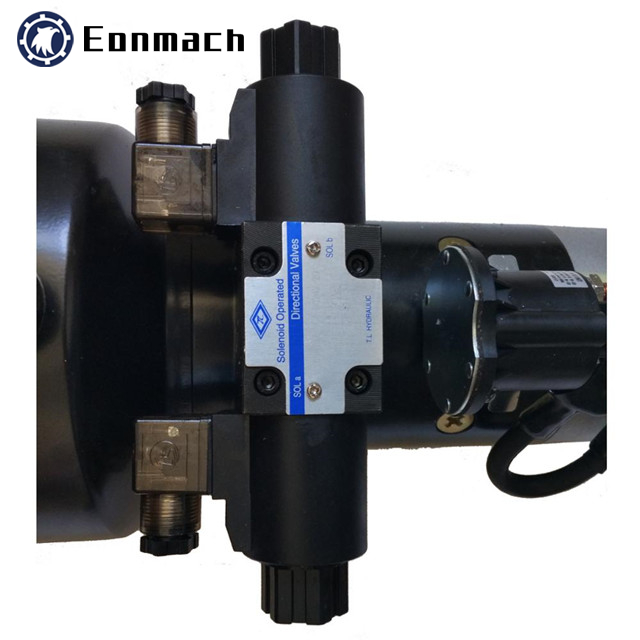

Trash Compactor Mini Hydraulic Power Unit Power Supply Unit

  • EM18-0037
  • EM
  • 8412299090
Quantity:

Product Description

Trash compactor mini hydraulic power unit power supply unit

Overview
Quick Details
Type:
Hydraulic Power Units

Model Number:
YD-DC24DE24WAFC14AS3

Brand Name:
EONMACH

Place of Origin:
Shandong, China (Mainland)

Name:
Trash compactor mini hydraulic power unit power supply unit

Voltage:
110V,220V,380V

Power:
0.75KW,1.1KW

Speed:
1450rpm

Displacement:
2.1cc/r,3.7cc/r,4.2cc/r

Pressure:
14.5Mpa,16Mpa,20Mpa

Tank:
4L,12L

Material:
Steel

Color:
Black,red

Certificate:
ISO9001 CE
Supply Ability
Supply Ability:
2000 Unit/Units per Week Trash compactor mini hydraulic power unit power supply unit
Packaging & Delivery
Packaging Details
Trash compactor mini hydraulic power unit power supply unit are packed in Carton,then pallets.
Port
Qingdao port
Lead Time :
Shipped in 15 days after payment
Product Description

Product Application

Trash compactor mini hydraulic power unit power supply unit is integrates with high/low gear pump,AC motor,multi-functional manifold,valves,tank,etc.While working at lower pressure.both pumps putput flow,while working at higher pressure,only small pump putputs flow.This enables the power unit to have a high flow at low pressure and lower power consumption at high pressure.Two different retracting speeds are achieved by energizing/de-energizing the 3-way valve.

SPECIFICATIONS FOR Trash compactor mini hydraulic power unit power supply unit
Motor Volt
Motor Power
Rated Speed
Displacement
System pressure
Tank  Capacity
110V
1.1KW
1450RPM
4.2mL/r
14.5Mpa
4L
220V
1.1KW
3.7mL/r
20Mpa
380V
0.75KW
2.1mL/r
16Mpa
Trash Compactor Mini Hydraulic Power Unit Power Supply Unit

      Trash Compactor Mini Hydraulic Power Unit Power Supply Unit
