EM19-20017
EONMACH
84122100
| Quantity: | |
|---|---|
Factory Hospital Bed and Beauty Bed Hydraulic Cylinder
Maximum Stroke:400mm
Shaft Diameter:300 max
Work temperature:-20-80 degree
Working Pressure:16Mpa,25Mp
cylinder diameter:40-320mm
Warranty:12 Months

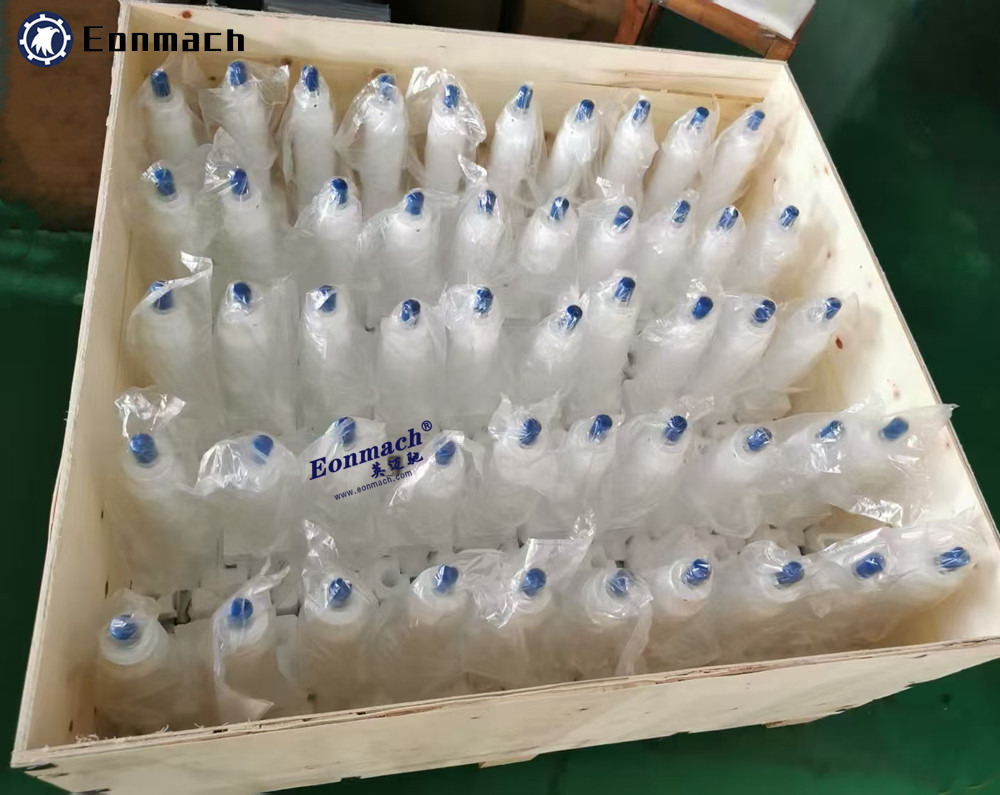

Packaging Details :packing:steel pallet, wooden case or as customers' requirements
Delivery Time :15 days after confirmed
Product Description
Features:
| Compact structure |
| beautiful appearance |
| convenient installation |
| stable performance |
| wide range of use |
Performance Data:
| Lift distance every time | 6mm |
| Drop distance per second | 15mm |
| Max Load | 600KG |
| Rated Load | 300Kg |
| service life | 50000 times |
| seal kit | NOK |
Scope of use: beauty bed, check bed, emergency bed, operation bed, etc.
Core advantage
1. Strong bearing + eccentric load resistance Under the same volume, the bearing capacity of the hydraulic cylinder is much larger than that of the electric push rod/screw rod, which can easily cope with the full load weight of the patient + mattress, and it is not easy to deform in the partial load scenarios such as side lying and turning over, and the stability is stronger.
2. Smooth and quiet operation Depending on hydraulic oil damping buffer, the lifting start and stop is soft without impact, the running noise is ≤ 45dB, it will not disturb patients or pull the wound after operation, especially suitable for ward and operating room environment.
3. Safety against falling Built-in hydraulic lock prevents the bed from falling rapidly, which is the core security guarantee for medical scenes.
4. accurate and controllable speed regulation It can realize slow rise and slow fall, accurately control the angle of body position, and meet the needs of fine body position adjustment of postoperative patients and critically ill patients.
5. Compact structure and easy layout The cylinder body is small in size, can be hidden inside the bed frame, does not occupy the use space, and is suitable for complex postures such as back lifting, leg lifting, rollover and the like. 6. Long fatigue life The abrasion of the moving parts is small,It can rise and fall repeatedly with high frequency to meet the hospital's 24-hour uninterrupted use. Strong environmental adaptability The low temperature ward and the air conditioning operating room can work normally without the problems of low temperature pressure relief of the air pressure rod and lead screw jamming.
-Non-electric drive: It is completely dependent on the manual pump core, and the body position can be adjusted normally in case of power failure or equipment failure, with strong emergency response.
-Minimal structure: integrated pump and cylinder, no exposed pipeline, extremely low maintenance cost, suitable for primary hospitals and health care institutions.
-The operation is labor-saving: the foot drive can complete the lifting, and the burden of medical care operation is small.
