Stroke 130-300mm Medical Bed and Beauty Bed Hydraulic Cylinder

Stroke 130-300mm Medical Bed and Beauty Bed Hydraulic Cylinder

The hydraulic cylinder for medical bed with stroke 130mm-300mm please check which is workable for you.

And they can bear 250 kgs,the rated load is 300 kgs and max load is 600 kgs.

It was developed in 2011 and the mass production began from 2013.

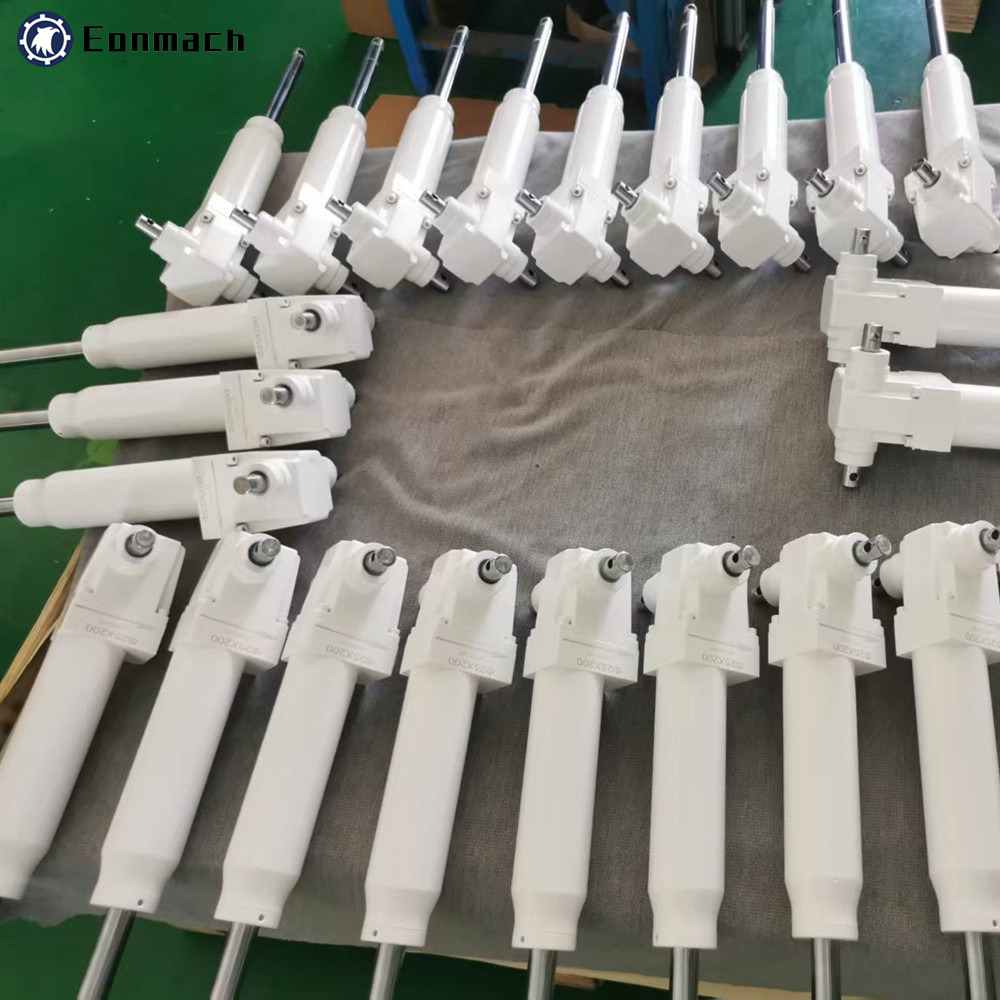

-Appearance material: the whole is a white medical grade spraying shell, the end of the piston rod is provided with a blue protective cap, and the bottom is a double-lug + pin shaft installation structure, which is suitable for the hinged installation of the bed frame.

-Integrated design: pump cylinder integrated structure, built-in manual pump core, no need for external hydraulic pipeline, can be lifted pedal drive during operation.

1. Built-in one-way hydraulic lock, instantly locked after stopping operation, to prevent the bed from sinking and ensure the stability of the patient's body position.

2. White smooth coating + no exposed pipeline, easy to wipe and disinfect with alcohol/chlorine-containing disinfectant, no dead corner of cleaning.

3. Pure mechanical hydraulic drive, the body position can still be adjusted normally in power failure/emergency scenarios, and the medical operation is easy.

4. Hydraulic oil damping buffer, gentle lifting process without impact, noise ≤ 45dB, in line with the requirements of ward silence.

Application scenario:

 -Ordinary nursing bed: control the back plate to lift, the legs to bend, and the bed body to rise and fall as a whole.

 -Sick bed in health care institution: suitable for low-frequency body position adjustment, with extremely low maintenance cost.

-Outpatient examination bed: provides stable height and angle adjustment, compact structure and does not occupy space.

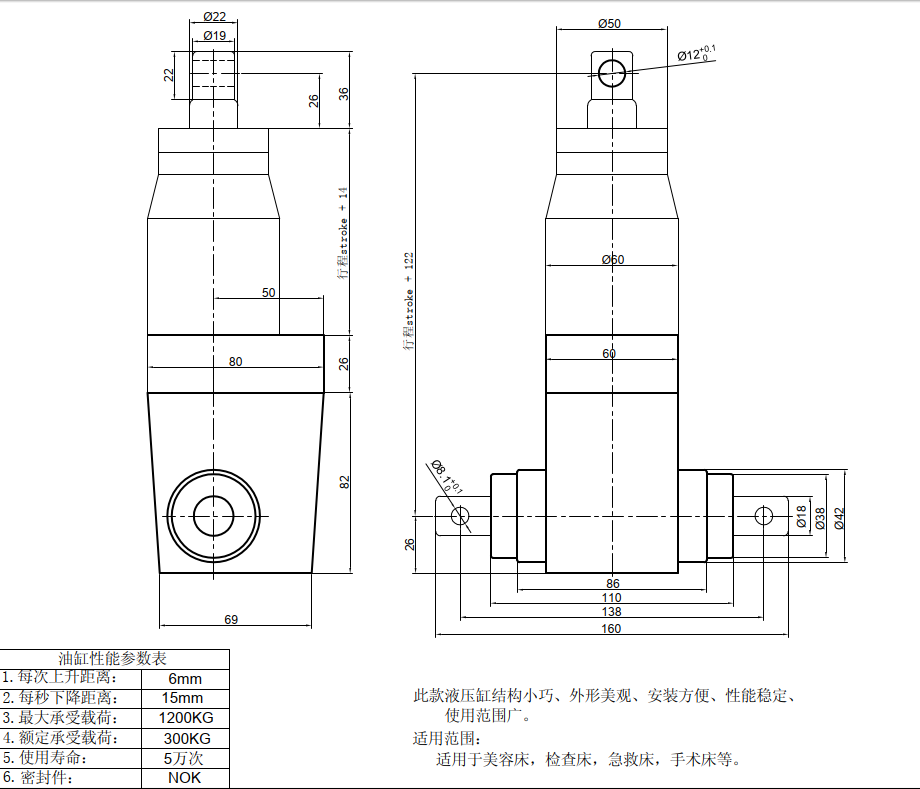

Bore 25 mm Stroke 130 mm-300mm Rated load 300 – 650 kg.
