EM19-2003
EONMACH
84122100
| Quantity: | |
|---|---|

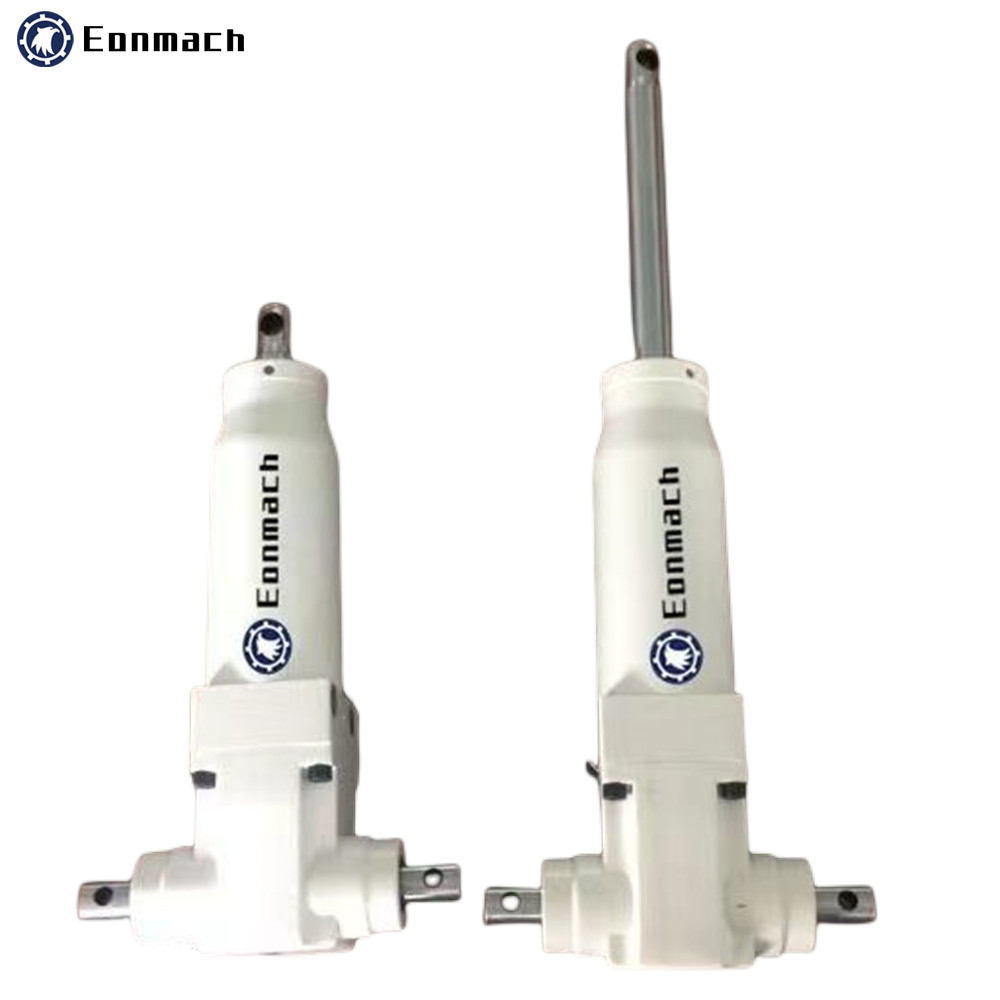

Stoke 130mm-300mm Hydraulic Cylinder for Medical Bed and Beauty Bed.
Performance Data:
| Lift distance every time | 6mm |
| Drop distance per second | 15mm |
| Max Load | 600KG |
| Rated Load | 300Kg |
| service life | 50000 times |
| seal kit | NOK |
The quality core of the hydraulic cylinder of the medical bed is leakproof, strong enough, stable operation, long durability, safety and compliance, which directly determines the safety and life of the bed. Materials and Processes (Basic) -Cylinder: 45 # seamless steel, honed mirror grade (Ra ≤ 0.2 μm), internal diameter tolerance ± 0.02 mm. -Piston rod: 45Cr hardened and tempered, hard chromium plating ≥ 25 μm, hardness HRC ≥ 60, straightness ≤ 0.05 mm/m.
-Seal: Medical grade polyurethane/rubber, resistant to hydrolysis, aging and biocompatible.
-Appearance: no cracks, burrs, rust; uniform coating resistant to disinfection.
There are several key advantages that make our Medical Bed Hydraulic cylinders popular among global buyers:
1. Ultra-quiet & Smooth Operation
Our hydraulic cylinders run stably with low noise during lifting and lowering. They bring comfortable, gentle adjustment for patients without harsh vibration or sudden jolts, which meets strict medical environment requirements.
2. Excellent Leakage Prevention & Cleanliness
Equipped with high-grade imported NOK sealing components and dustproof structures, our hydraulic cylinders avoid oil leakage effectively. No oil contamination on bed sheets or medical equipment, satisfying hygienic standards for hospitals and nursing homes.
3. Safe Load-bearing & Stable Locking Performance
Built-in reliable pressure locking structures keep the medical bed fixed firmly at any height. Even under long-term static load, there will be no automatic sinking, ensuring patient safety during treatment and rest.
4. Corrosion-resistant & Easy to Disinfect Surfaces
The cylinder surface adopts fine polishing and anti-rust coating. It resists erosion from disinfectants, alcohol and cleaning liquids commonly used in wards, and is convenient for daily wiping and sterilization.
5. Strict Medical-grade Quality Inspection
Every hydraulic cylinder undergoes repeated high-pressure testing, fatigue testing and aging tests before delivery. Stable quality reduces after-sales failures and maintenance work for medical institutions.
6. Flexible Customization & Compact Structure
We support OEM and ODM customization according to installation size, stroke, thrust and appearance needs. Slim and reasonable structures are perfectly suitable for electric hospital beds, nursing beds, rehabilitation beds and multifunctional home care beds.
7. Reliable Delivery and Professional Technical Support
Located in Qingdao, we enjoy convenient port transportation for fast global shipment. Our team offers professional parameter matching guidance and timely after-sales service for distributors and manufacturers
