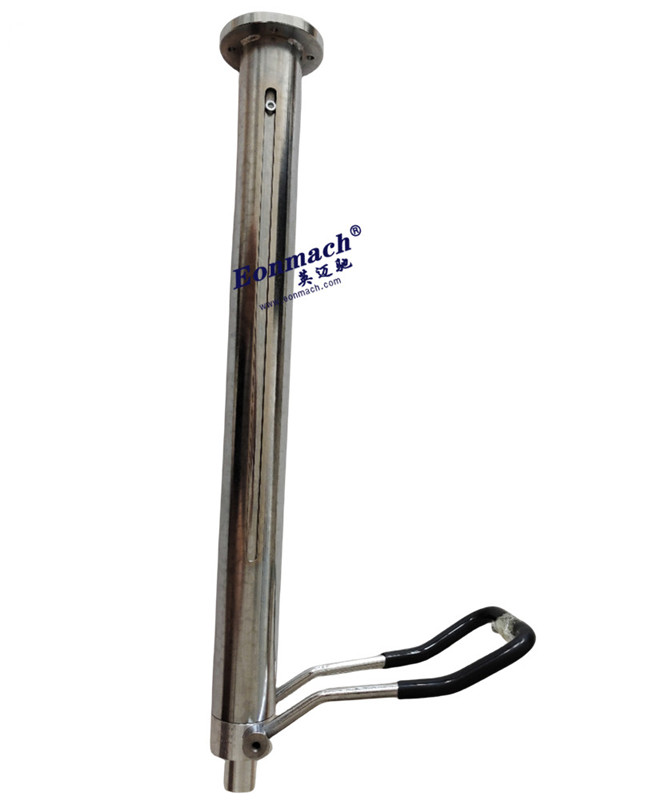

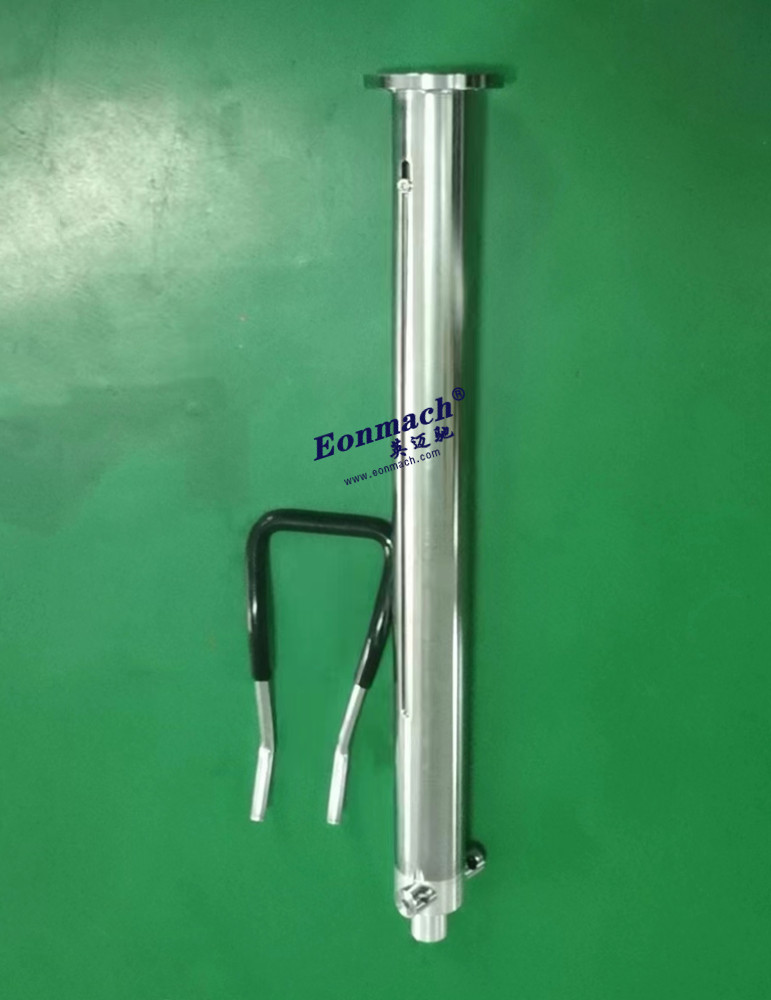

Hydraulic Cylinder for Chair Lift

Product Uses

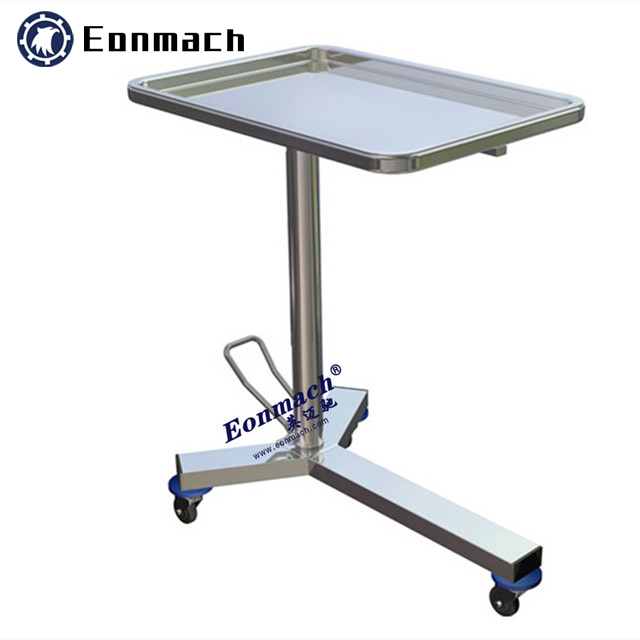

This hydraulic cylinder for Chair lift and small table platform.

Technical Parameters

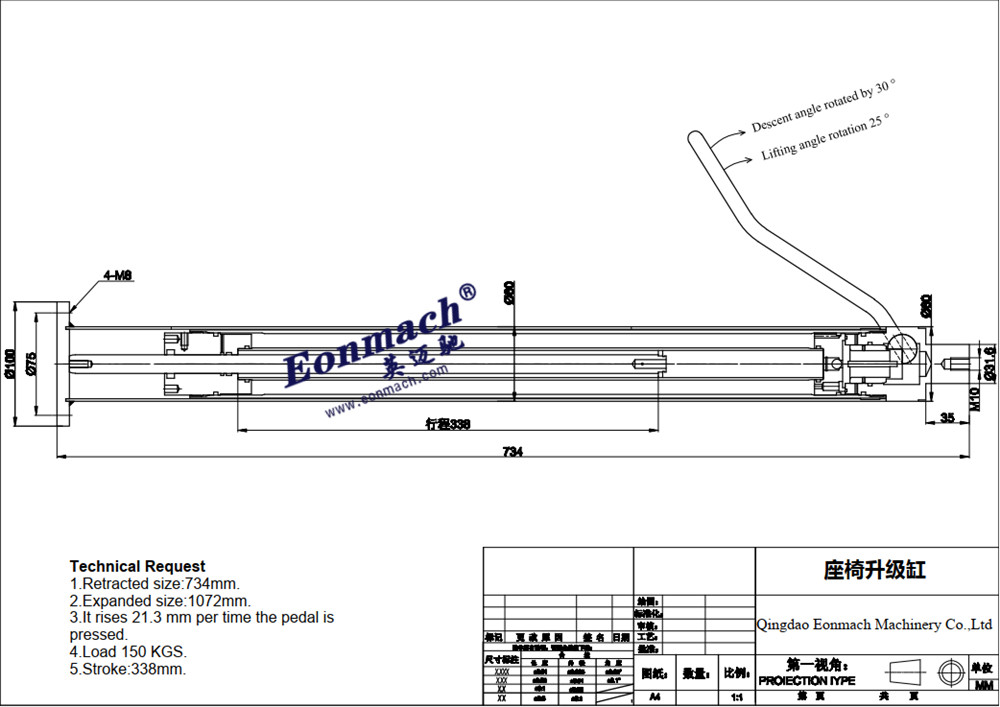

Bore size 60mm,Rod size 35mm,stroke 400mm.

Product Advantage

The chair lift cylinder has the following significant advantages:  Strong carrying capacity:

1. Strong carrying capacity: The lifting cylinder of the chair can bear large weight and provide stable supporting force to ensure the safety and stability of the chair when carrying the user.

2.Smooth lifting experience: Through the precise control of the hydraulic system, the chair lifting cylinder can achieve smooth and jitter-free lifting operation, providing users with a comfortable experience.

3. Flexible height adjustment: Users can easily adjust the height of the chair according to their needs to adapt to different work or life scenarios and improve the convenience of use.

4.Reliability and durability: The hydraulic system has mature technology and good sealing, which can maintain stable performance in long-term use and reduce the probability of failure.

Core advantages of medical chair hydraulic cylinder

 1. Smooth operation, good patient experience  -No sense of frustration: hydraulic transmission relies on oil to transmit force, and the lifting process is gentle and smooth, avoiding mechanical impact and reducing dizziness or discomfort of patients.

-Good mute effect: The noise of the hydraulic system is much lower than that of the electric push rod, which is especially suitable for dental, physical examination and other scenes requiring quiet environment.

 2. Strong load capacity, safe and reliable  -Large load support: a single cylinder can easily carry 150 – 300 kg,Meet the weight requirements of obese patients or equipment.

-Overload protection: When the system pressure exceeds the limit, it will automatically release the pressure to avoid mechanical damage or personal injury.

 3. Compact structure and strong adaptability  -Compact size: The cylinder can be integrated inside the chair frame, which does not take up extra space and makes the medical chair look simpler and more beautiful. -Multi-posture adjustment: It can cooperate with multiple groups of oil cylinders to realize compound actions such as backrest lifting, leg board lifting and overall inclination, so as to meet different diagnosis and treatment needs.

-Flexible installation:Flange/pin and other installation methods, easy to adapt to different brands of medical chair structure.

 4. High durability and low maintenance cost  -Long anti-fatigue life: high-quality seals and chrome-plated piston rod, can withstand more than 50,000 times of reciprocating action, not easy to leak oil, wear. -Environmental corrosion resistance: Medical grade materials can withstand alcohol, disinfectant and other cleaning supplies, not easy to rust aging.

-Simple maintenance: only need to check the oil level and sealing status daily, with few fault points, and the maintenance cost is lower than complex electric servo system.

FAQ

Q How long is the production time?

A The production time is 30 days.

Q Could we get small quantity samples?

A Yes,we can make one sample for your test.

Q What is the warranty?

A 12 months.
