Product Uses

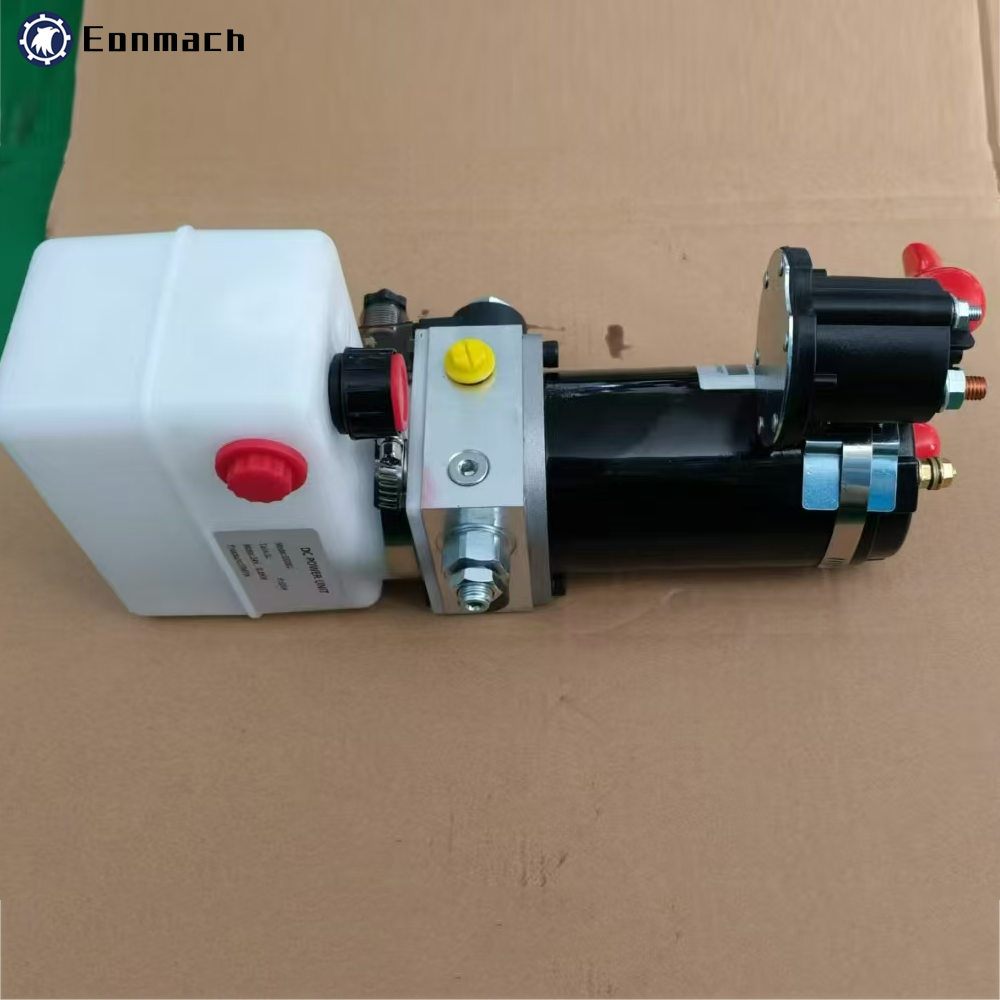

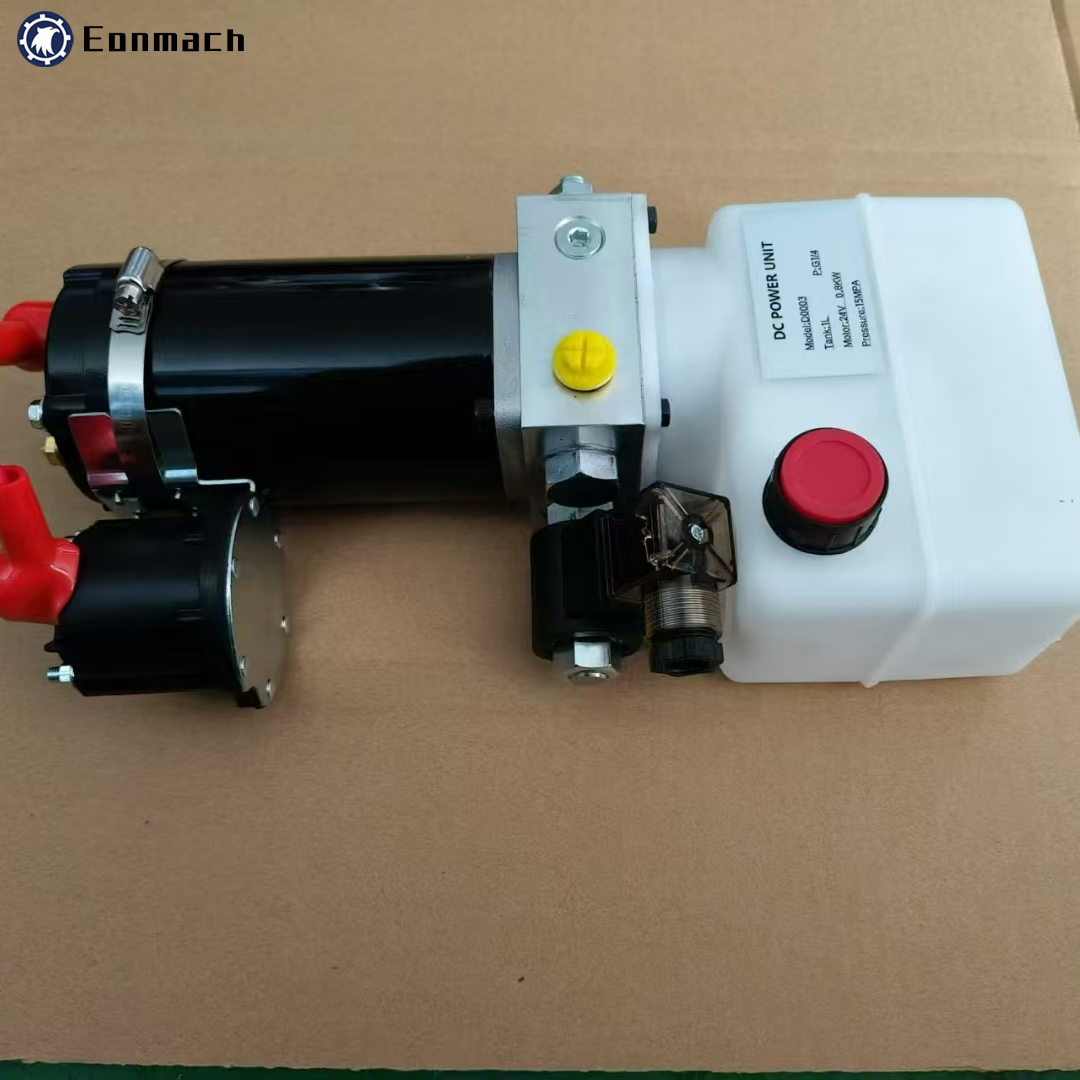

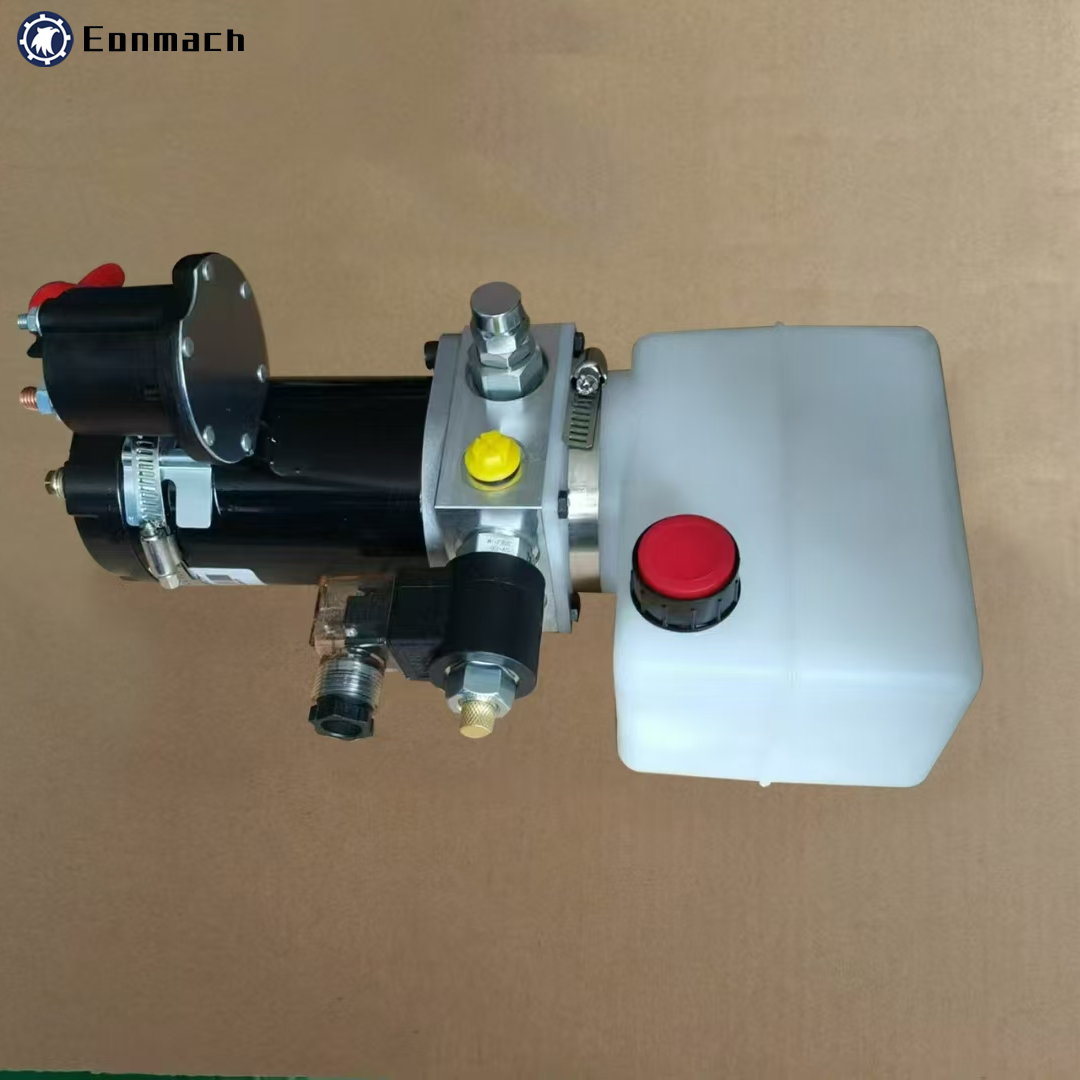

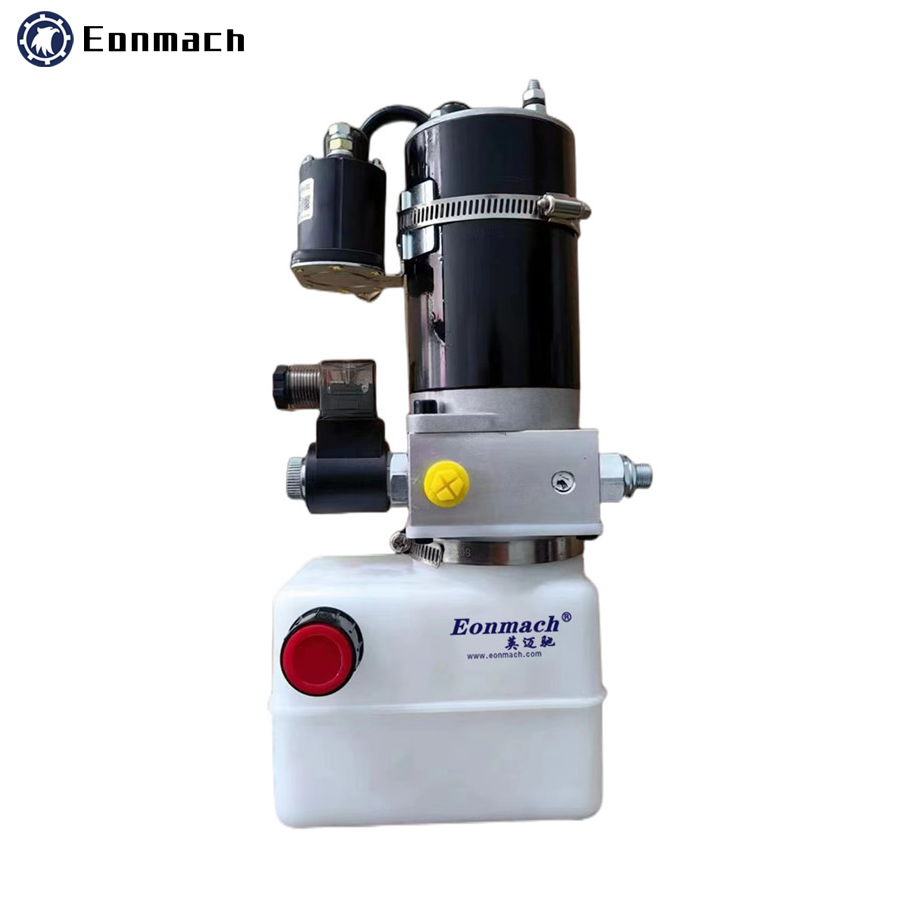

This hydraulic power unit for Home Lift Pallet Truck ensures stable lifting and lowering.

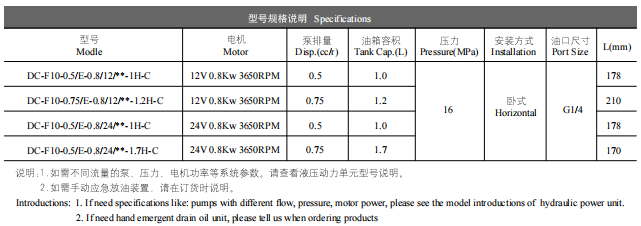

Technical Parameters
Product Advantage
The power unit of the pallet truck has many advantages, which can significantly improve the performance and efficiency of the pallet truck. -Compact:
1. well-designed, small footprint, easy to install and operate in limited space, suitable for a variety of complex working environments.
2.Efficient performance: It can provide powerful power support to ensure the efficient operation of the pallet truck when handling goods and improve work efficiency.
3.Stable and reliable: to achieve the smooth lifting and lowering of goods, ensure the stability and safety of the handling process, and reduce the risk of damage to the goods.
4.Easy maintenance: requires less maintenance, reduces maintenance costs and downtime, and improves equipment utilization.
5.Strong adaptability: it can adapt to different working requirements and working conditions, and provide reliable power guarantee for the pallet truck.
Notice
1.This power unit is S3 working type, can not work continuously, can work
repeatedly.
2.Before installation, please be sure the cleanliness of component like tank, tube
and fittings, without any impurities.
3.Viscosity of oil should be 15-68CST, should be clean and without impurities.
Suggest to use N46 hydraulic oil. If need to work all-weather, must use
aviation hydraulic fluid.
4.This power unit is horizontal installation.
5.After first work, oil tank should be checked immediately to see if there’s
enough oil.
6.After the first 100 working hour, hydraulic oil should be replaced. After that,
the oil should be replaced every 3000 working hours.
FAQ
Q How long is the production time?
A Generally the production time is 15 days.
Q How about your warranty?
A 12 months.
Q Do you accept OEM manufacturing?
A We do accept OEM manufaturing.

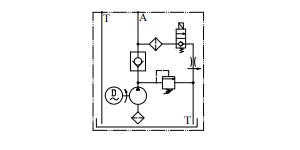

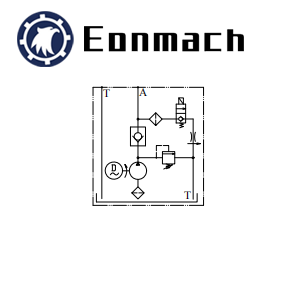

Hydraulic Schematic
