EM19-0009
EM
9412299090
| Quantity: | |
|---|---|

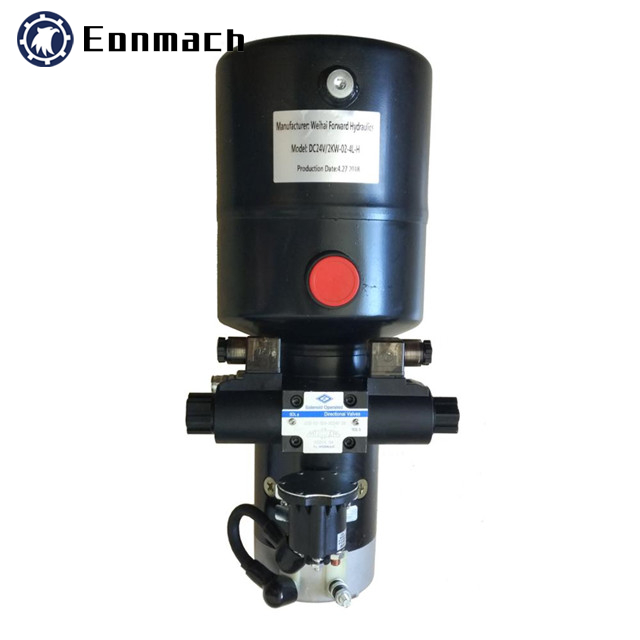

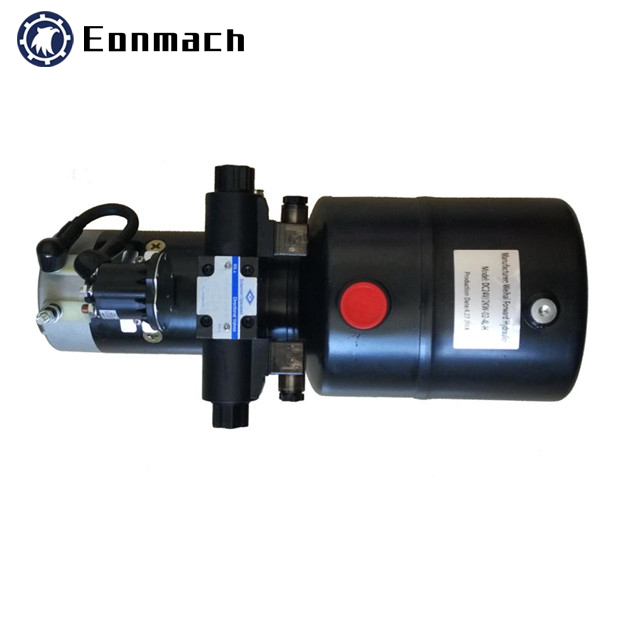

Overview
Quick Details
Type:
Hydraulic Power Units
Brand Name:
EOMACH
Place of Origin:
Shandong, China
1.install style:
horizontally, vertical
2.Motor volt:
12V, 24V, 48V DC or 110v,220v,240V AC
3.Pump:
0.25 0.5 0.75 1.0 1.25 1.6 2.0 2.5 cc / r
4.Motor:
250w, 250w, 800w, 1.6kw, 2kw, 3kw
Packaging & Delivery
Lead Time :
| Quantity(Pieces) | 1 - 10 | 11 - 50 | 51 - 100 | >100 |
| Est. Time(days) | 5 | 10 | 15 | To be negotiated |
Model Specifications
| MODEL | MOTOR VOLTAGE | MOTOR POWER | SPEED | DISPLACEMENT | SYSTEM PRESSURE | TANK CAPACITY | L(MM) |
| FD4DC1DWA02C | 12V DC | 1.5KW | 2800R | 1.0ML/R | 20MPA | 4.0L | 435 |
| FE5DC1DWA02C | 12V DC | 1.5KW | 2800R | 1.6ML/R | 20MPA | 5.0L | 480 |
| FF6DC2EWB02C | 24V DC | 2.2KW | 2800R | 2.0ML8R | 20MPA | 6.0L | 500 |
| EG8DC2EWB02C | 24V DC | 2.2KW | 2800R | 2.5ML8R | 16MPA | 8.0L | 580 |
Packing
