Product Uses

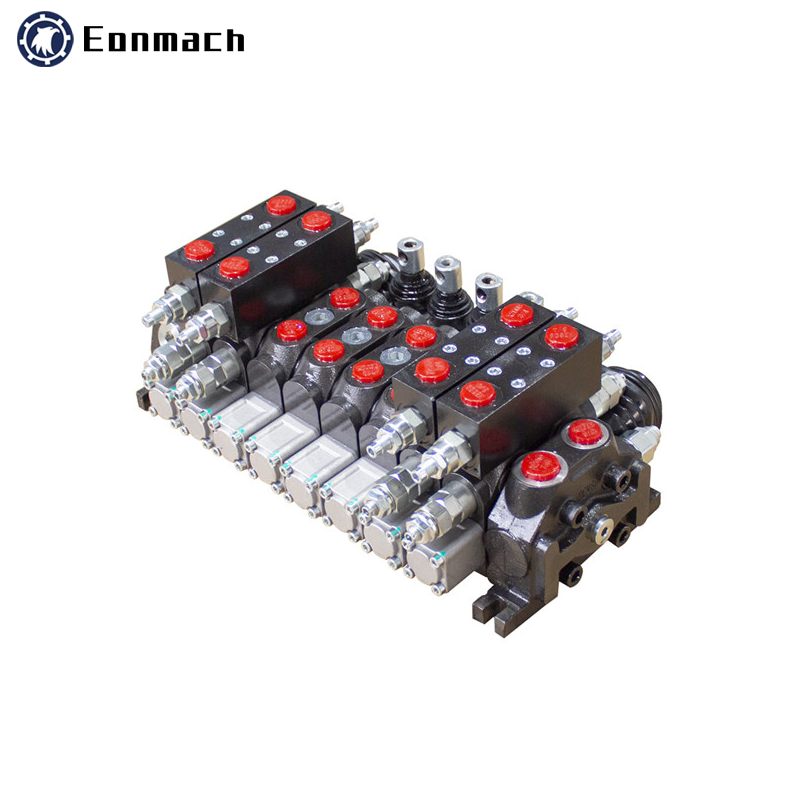

This SD8 series directional control valve for Wood grabbing machine and excavator etc.

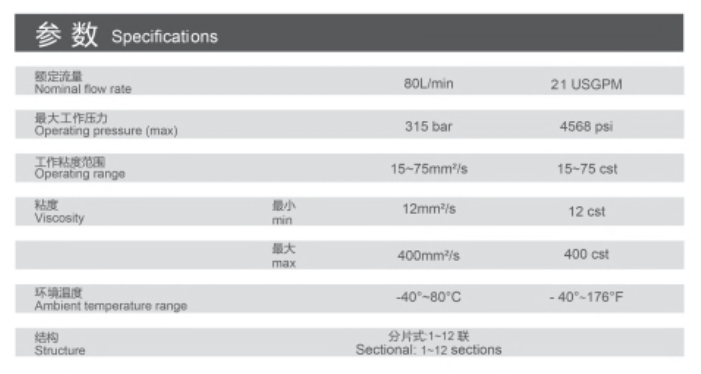

Technical Parameters
Product Advantage
1.The slide valve has rich functions (such as O, A, Y, etc.), supports a variety of combinations, and meets the needs of different working conditions of the wood grab.
2.High working pressure (usually 31.5Mpa), wide nominal flow range (40L-160L), suitable for heavy load and high flow operation. -Low pressure loss in the middle position of the slide valve, low energy loss, and improved system efficiency.
3.Provide a variety of port sizes and connections (threaded connections) to adapt to different wood grab hydraulic systems. -Support manual, hydraulic, electro-hydraulic and other drive modes, flexible operation.
4.High-strength materials and precision machining process are used to ensure long-term stable operation. -Safety and shock valves are designed to provide overload protection and extend equipment life.

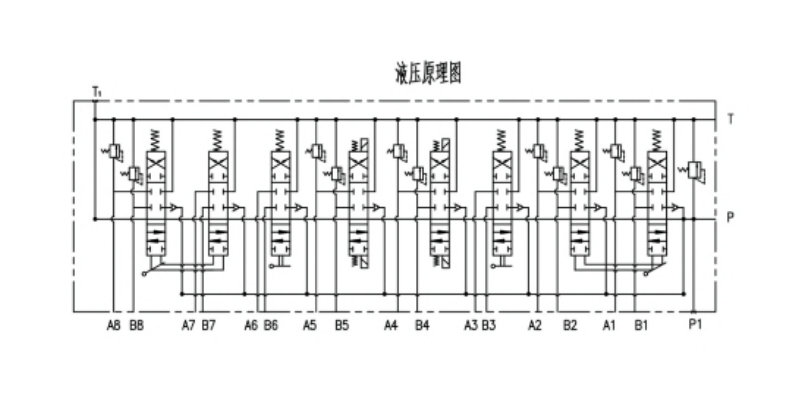

Hydraulic Schematic
Product Uses
This SD8 series directional control valve for Wood grabbing machine and excavator etc.
Technical Parameters
Product Advantage
1.The slide valve has rich functions (such as O, A, Y, etc.), supports a variety of combinations, and meets the needs of different working conditions of the wood grab.
2.High working pressure (usually 31.5Mpa), wide nominal flow range (40L-160L), suitable for heavy load and high flow operation. -Low pressure loss in the middle position of the slide valve, low energy loss, and improved system efficiency.
3.Provide a variety of port sizes and connections (threaded connections) to adapt to different wood grab hydraulic systems. -Support manual, hydraulic, electro-hydraulic and other drive modes, flexible operation.
4.High-strength materials and precision machining process are used to ensure long-term stable operation. -Safety and shock valves are designed to provide overload protection and extend equipment life.
Hydraulic Schematic
