Wingspan Van Hydraulic Power Unit Hydraulic Power Pack

  • EM19-0020

  • EM

  • 8412299090

Availability:
Quantity:

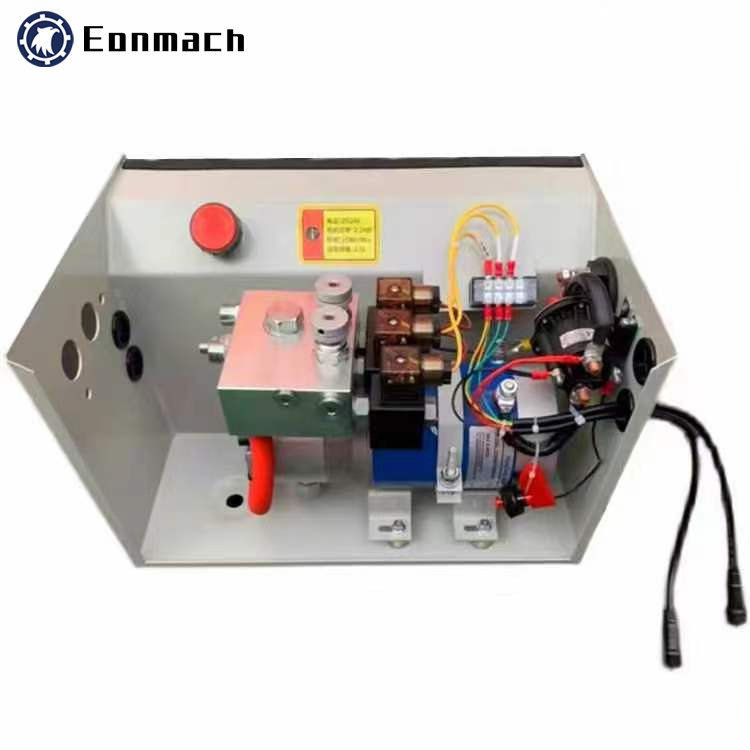

Wingspan van hydraulic power unit hydraulic power pack

Overview
Quick Details
Type:
Hydraulic Power Units

Model Number:
OEM

Brand Name:
Eonmach

Place of Origin:
Shandong, China (Mainland)

Tank capacity:6L 8L 10L:
Tank material: metal; plastic

Motor Power:1hp 2hp 3hp 4hp:
Duty Mptor: S3

HS Code:8412299090:
Installation: Horizontal

Motor Volt:12V 24V 48V:
Nominal speed: 2850RPM
Supply Ability
Supply Ability:
6000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Exporting standard packing carton&pallet
Port
Qingdao
Lead Time :
7 working days
Product Description


Double acting hydraulic power pack features:


1. Voltage: 12V/24V/36V/48V/60V/72V

2. DC Motor Power: 0.75KW-2.2KW/ 1HP 2HP 3HP

3. Volume: 1.5L-20L for oil tank

4. Oil tank: square / round  / plastic / metal

5. Check valve and relief valve is standard parts; hydraulic lock&pressure-compensated valve is available

6. Pump: 0.4cc-8.0cc/r

7. Mounting:  H (horizontal), V(vertical)

8. Reliable,low noise, high efficiency

Notes:

1. This power unit is of S3 duty, which can only work intermittently and repeatedly, i.e., 30 seconds on and 270 seconds off.

2. Make sure all the hydraulic parts cleaned before mounting the power unit.

3. Our products' warranty period is one year from delivery.

The product should be well protected from moisture and must be treated with care during storage, transportation and operation.
