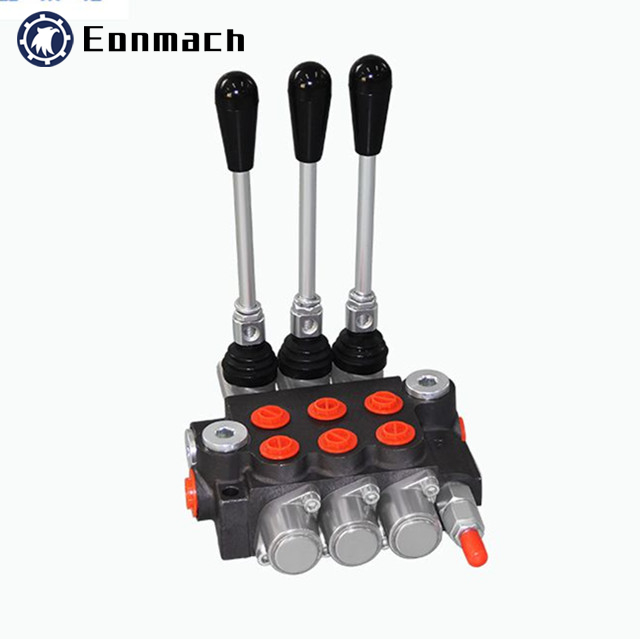

Hydraulic monoblock direction control valve for tractor
Monoblock directional control valves has many outstanding features including high performance, high efficiency, small volume, mass flow, and leak proof.
u Monoblock types with 1 to 6 working sections
u Nominal pressure 45 l/min, max 50 l/minute with pressure 160bar, 200bar, max pressure up to 315bar
u Selective spool returning ways: T (spring return); W (ball locking); Q; DQ
u Joining port: L (screw connection)
u Parallel circuit
u Spool function: O, P. Y, A
