DCV140DY-3OT Directional Control Valves

DCV140DY-3OT Directional Control Valves

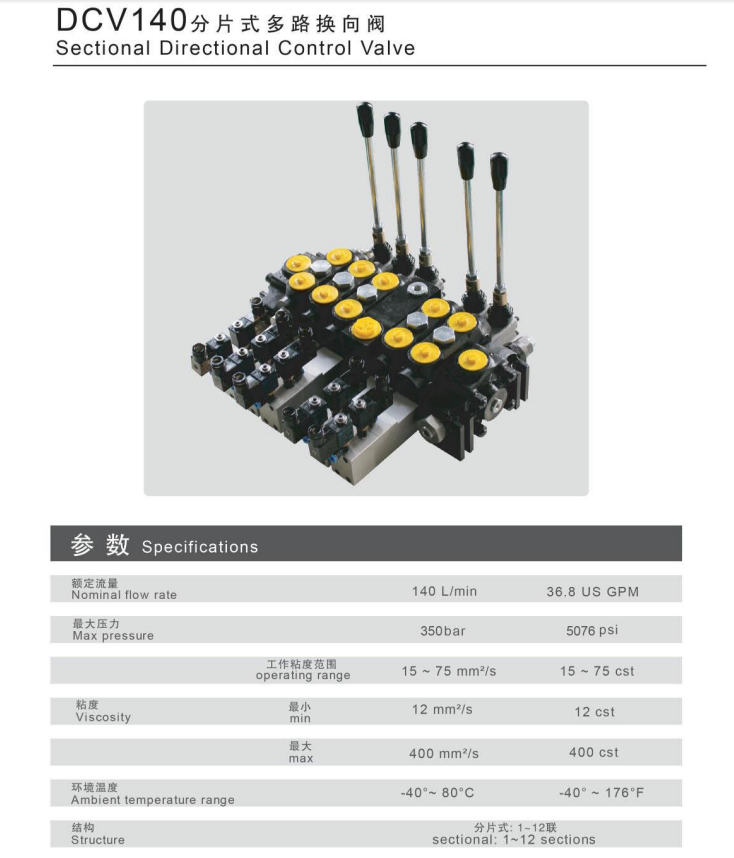

Core advantages of DCV140 multi-way valve Core basic parameters

 1. Rated flow: 140L/min, large flow output

 2.Pressure class: rated 31.5MPa (315 bar), peak withstand voltage 35MPa

3. Structural form: piecemeal modularization, the number of connections 1 – 12 can be freely combined

4. Oil circuit form: parallel main oil circuit, with independent pressure oil port, can be externally connected with auxiliary hydraulic components

 5.Control mode:Manual handle, pilot hydraulic control, pneumatic control, 24 V electromagnetic/electro-hydraulic control, one of four options, wood grab priority pilot manual control model

 6. Standard valves: main overflow valve + each independent overload protection valve, one-way oil make-up valve, overload automatic pressure relief protection cylinder motor

7. Applicable oil temperature: -25 ℃ ~ 80 ℃, stable operation under harsh conditions of high and low temperature in forest areas and material yards

1. Modular fragmentation structure, flexible adaptation of eight links  Piecemeal assembly, can increase or decrease the number of pieces as required, single damage to replace alone, without the whole valve replacement, low maintenance costs, easy disassembly.

 2. that synchronization of the compound action is strong, and the operation efficiency is high.  Independent throttle valve stem flow distribution, simultaneous operation of lifting, slewing and material grabbing without oil grabbing and jamming; precise metering of valve stem, precise micro-motion control.  4. Full circuit overload protection, longer life of hydraulic parts  Double protection of built-in overload valve + main overflow in each connection, automatic pressure relief in case of misoperation, to prevent pipe explosion, cylinder scuffing and motor damage.
